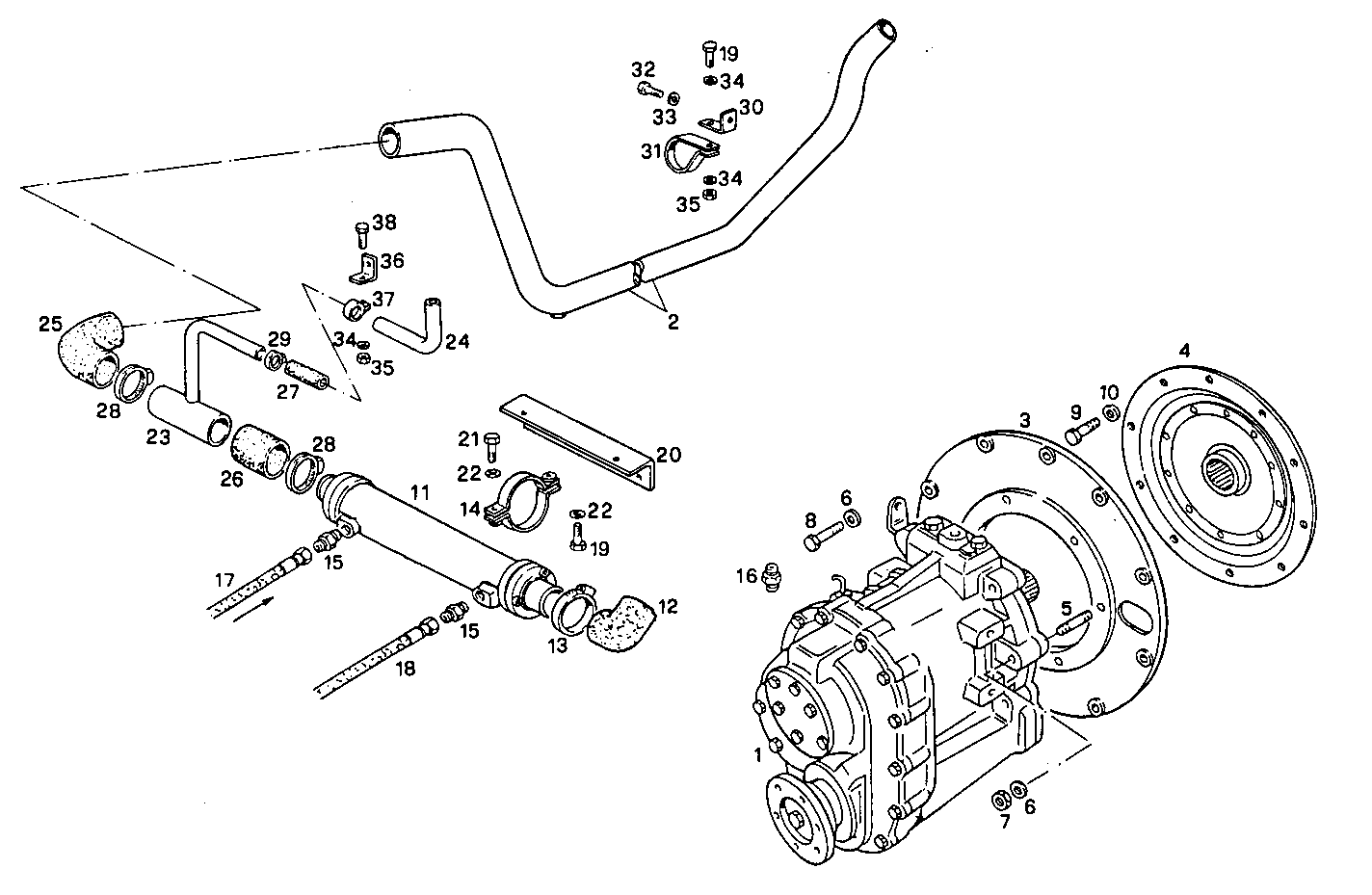

MARINE GEAR ZF-MPM IRM 50 PL2
8041M08.21 — 8041M08
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015293 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8006087 | WATER PIPE WATER PIPE | 1 | |
| 3 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 8005350 | FLEXPLATE FLEXPLATE | 1 | |
| 5 | 13547521 | STUD STUD | 6 | |
| 6 | 11198379 | SPRING WASHER SPRING WASHER | 18 | |
| 7 | 12164711 | HEXAGON NUT HEXAGON NUT | 6 | |
| 8 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 9 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 10 | 10571879 | WASHER WASHER | 8 | |
| 11 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 12 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 17764793 | CLIP CLIP | 2 | |
| 14 | 5116798 | CLIP CLIP | 4 | |
| 15 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 16 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 17 | 8100724 | HOSE HOSE | 1 | |
| 18 | 4935780 | OIL HOSE OIL HOSE | 1 | |
| 19 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 20 | 4936740 | SUPPORT SUPPORT | 1 | |
| 21 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 23 | 8107188 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8107189 | WATER PIPE WATER PIPE | 1 | |
| 25 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 26 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 27 | 17737687 | WATER HOSE WATER HOSE | 1 | |
| 28 | 17764793 | CLIP CLIP | 4 | |
| 29 | 17764593 | CLIP CLIP | 2 | |
| 30 | 8110499 | RETAINER RETAINER | 1 | |
| 31 | 4936741 | CLIP CLIP | 1 | |
| 32 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 33 | 17091074 | WASHER WASHER | 1 | |
| 34 | 17089774 | SPRING WASHER SPRING WASHER | 3 | |
| 35 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 36 | 8109067 | RETAINER RETAINER | 1 | |
| 37 | 4936277 | CLIP CLIP | 1 | |
| 38 | 16605424 | SCREW SCREW | 1 |
