MARINE GEAR
8041M09.01 — 8041M09

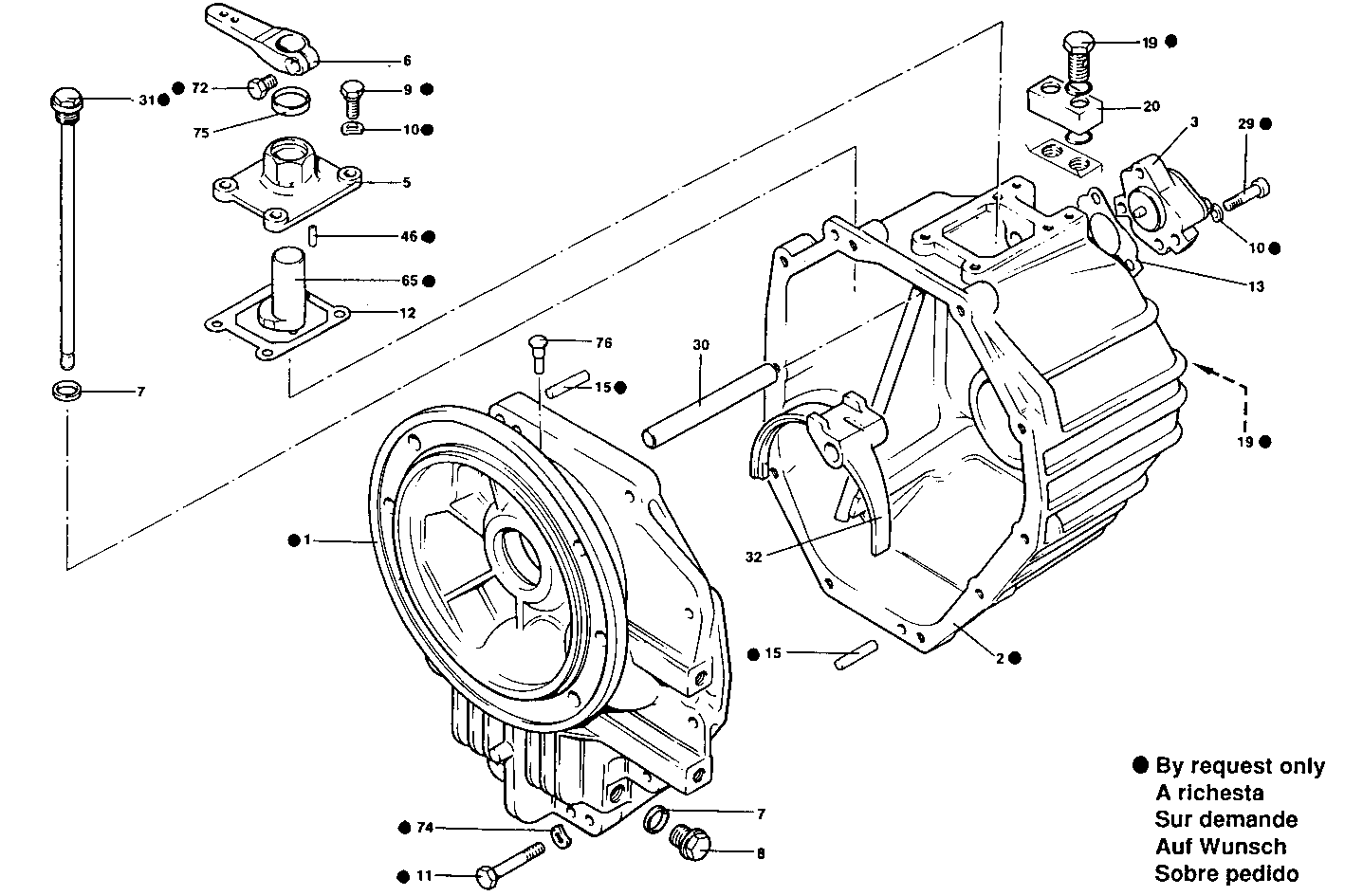

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | T5134000-01-001 | COVER COVER | 1 | |
| 2 | T5134000-01-002 | HOUSING HOUSING | 1 | |
| 3 | 8090041 | LUBE OIL PUMP LUBE OIL PUMP | 1 | |
| 5 | 8090043 | COVER COVER | 1 | |
| 6 | 8090044 | LEVER LEVER | 1 | |
| 7 | 8090045 | GASKET GASKET | 2 | |
| 8 | 8090046 | PLUG PLUG | 1 | |
| 9 | T5134000-01-009 | SCREW SCREW | 4 | |
| 10 | T5134000-01-010 | WASHER WASHER | 6 | |
| 11 | T5134000-01-011 | SCREW SCREW | 10 | |
| 12 | 8090047 | GASKET GASKET | 1 | |
| 13 | 8090048 | GASKET GASKET | 1 | |
| 15 | T5134000-01-015 | PIN PIN | 4 | |
| 19 | T5134000-01-019 | PLUG PLUG | 1 | |
| 20 | 8090050 | CHOCK CHOCK | 1 | |
| 29 | T5134000-01-029 | SCREW SCREW | 2 | |
| 30 | 8090057 | TIE ROD TIE ROD | 1 | |
| 31 | T5134000-01-031 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 32 | 8090059 | CLEVIS CLEVIS | 1 | |
| 46 | T5134000-01-046 | PIN PIN | 1 | |
| 65 | T5134000-01-065 | RETAINING CAM RETAINING CAM | 1 | |
| 72 | T5134000-01-072 | SCREW SCREW | 1 | |
| 74 | T5134000-01-074 | WASHER WASHER | 10 | |
| 75 | 8090110 | O-RING O-RING | 1 | |
| 76 | 8090111 | BREATHER BREATHER | 1 |
