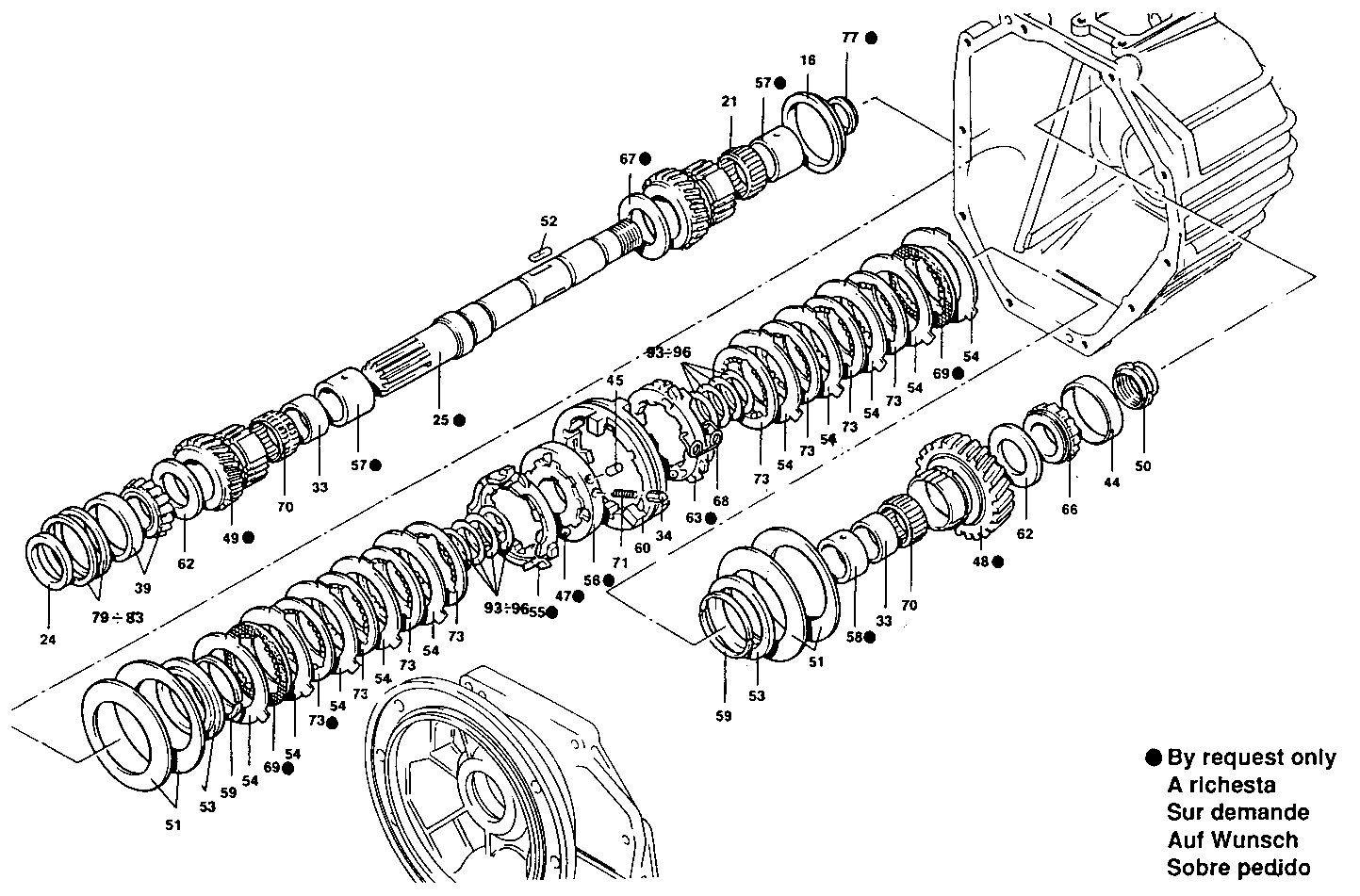

MARINE GEAR

8041M09.01 — 8041M09

Parts List

#	Part No	Name / Description	Qty
16	8090049	RING RING	1
21	8090842	KEY KEY	1
24	8090943	O-RING O-RING	1
25	T5134000-02-025	SHAFT SHAFT	1
33	8090060	DRIVE BEARING DRIVE BEARING	2
34	8090061	PIN PIN	3
39	8091016	DRIVE BEARING DRIVE BEARING	1
44	8091023	DRIVE BEARING DRIVE BEARING	1
45	8090087	PIN PIN	3
47	T5134000-02-047	BALL BALL	6
48	T5134000-02-048	GEAR GEAR	1
49	T5134000-02-049	GEAR GEAR	1
50	8090092	NUT NUT	1
51	8090093	SPRING SPRING	4
52	8090094	KEY KEY	2
53	8090095	RING RING	1
54	8090022	RING RING	8
55	T5134000-02-055	RING RING	1
56	T5134000-02-056	CONNECTOR SLEEVE CONNECTOR SLEEVE	1
57	T5134000-02-057	SPACING BAR SPACING BAR	1
58	T5134000-02-058	SPACING BAR SPACING BAR	1
59	8090100	RING RING	2
60	8090101	CONNECTOR SLEEVE CONNECTOR SLEEVE	1
62	8090103	WASHER WASHER	1
63	T5134000-02-063	RING RING	1
66	8091026	DRIVE BEARING DRIVE BEARING	1
67	T5134000-02-067	O-RING O-RING	1
68	8090107	SPRING SPRING	3
69	T5134000-02-069	RING RING	2
70	8090108	DRIVE BEARING DRIVE BEARING	1
71	8090109	SPRING SPRING	3
73	8090024	RING RING	8
77	T5134000-02-077	SPACING BAR SPACING BAR	1
79	8090071	SHIM SHIM	1
80	8090072	SHIM SHIM	1
81	8090073	SHIM SHIM	1
82	8090074	SHIM SHIM	1
83	8090075	SHIM SHIM	1
93	8090082	SHIM SHIM	2
94	8090083	SHIM SHIM	2
95	8090084	SHIM SHIM	2
96	8090085	SHIM SHIM	2
