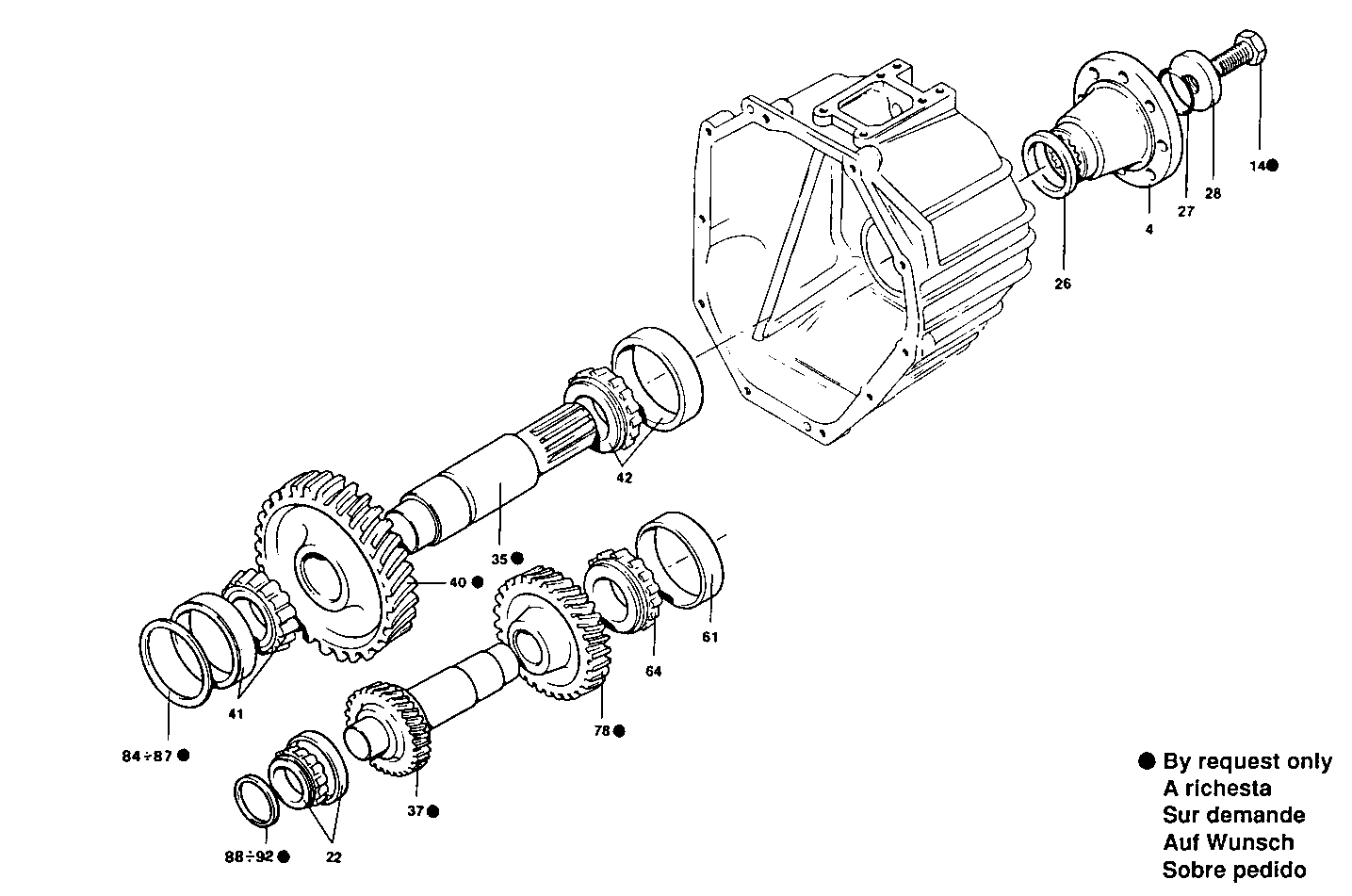

MARINE GEAR
8041M09.01 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 4 | 8090042 | FLANGE FLANGE | 1 | |
| 14 | T5134000-03-014 | SCREW SCREW | 1 | |
| 22 | 8091029 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 26 | 8090054 | O-RING O-RING | 1 | |
| 27 | 8090055 | O-RING O-RING | 1 | |
| 28 | 8090056 | WASHER WASHER | 1 | |
| 35 | T5134000-03-035 | SHAFT SHAFT | 1 | |
| 37 | T5134000-03-037 | GEAR GEAR | 1 | |
| 40 | T5134000-03-040 | GEAR GEAR | 1 | |
| 41 | 8091021 | DRIVE BEARING DRIVE BEARING | 1 | |
| 42 | 8091022 | DRIVE BEARING DRIVE BEARING | 1 | |
| 61 | 8091024 | DRIVE BEARING DRIVE BEARING | 1 | |
| 64 | 8091025 | DRIVE BEARING DRIVE BEARING | 1 | |
| 78 | T5134000-03-078 | GEAR GEAR | 1 | |
| 84 | T5134000-03-084 | SHIM SHIM | 2 | |
| 85 | T5134000-03-085 | SHIM SHIM | 2 | |
| 86 | T5134000-03-086 | SHIM SHIM | 2 | |
| 87 | T5134000-03-087 | SHIM SHIM | 2 | |
| 88 | T5134000-03-088 | SHIM SHIM | 2 | |
| 89 | T5134000-03-089 | SHIM SHIM | 2 | |
| 90 | T5134000-03-090 | SHIM SHIM | 2 | |
| 91 | T5134000-03-091 | SHIM SHIM | 2 | |
| 92 | T5134000-03-092 | SHIM SHIM | 2 |
