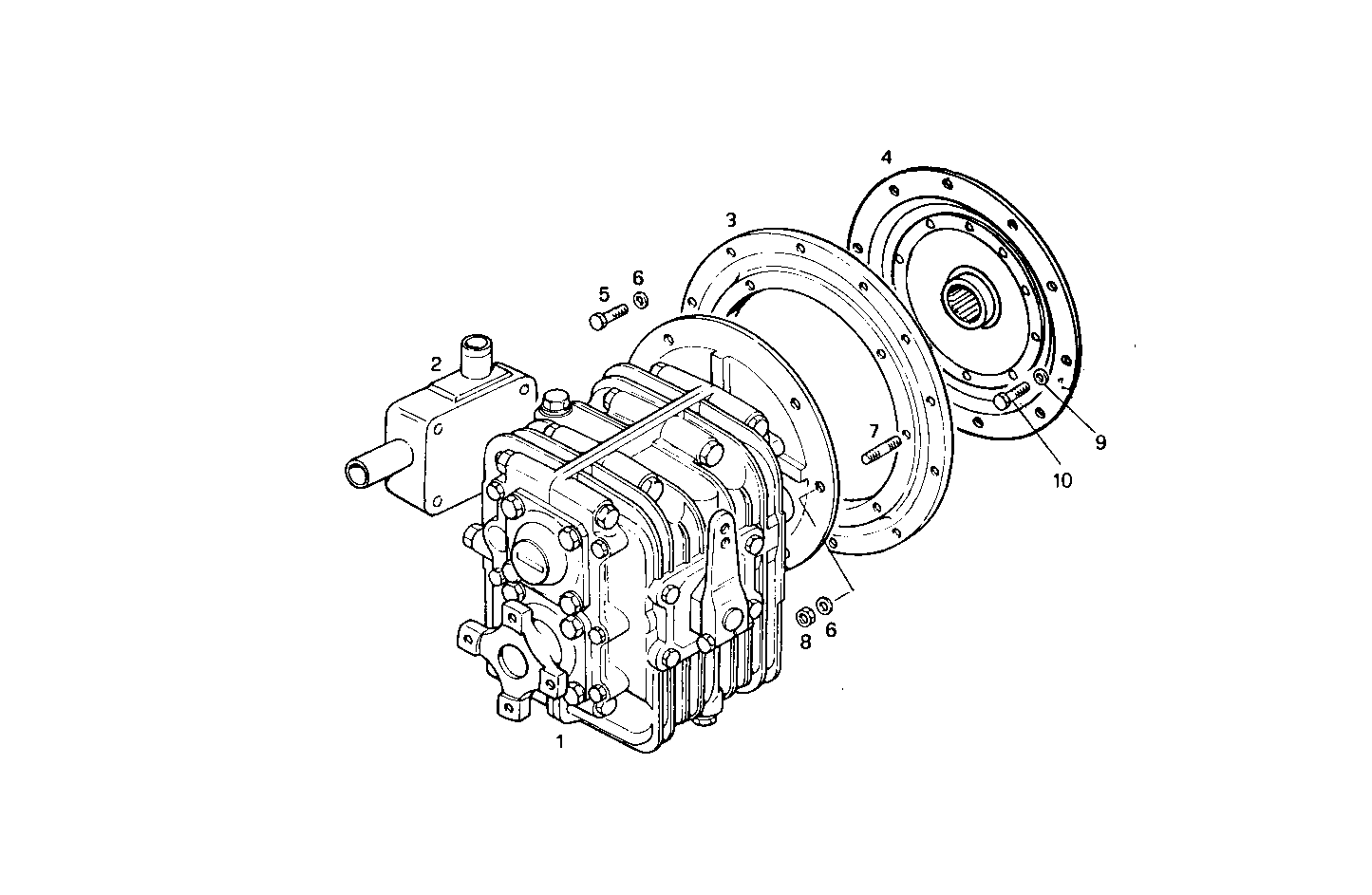

MARINE GEAR HURTH HBW 250
8041M09.01 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8101591 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8100517 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 3 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 8005343 | FLEXPLATE FLEXPLATE | 1 | |
| 5 | 11198371 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 11198379 | SPRING WASHER SPRING WASHER | 18 | |
| 7 | 13546321 | STUD STUD | 6 | |
| 8 | 12167411 | NUT NUT | 6 | |
| 9 | 10571871 | SPRING WASHER SPRING WASHER | 8 | |
| 10 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 |
