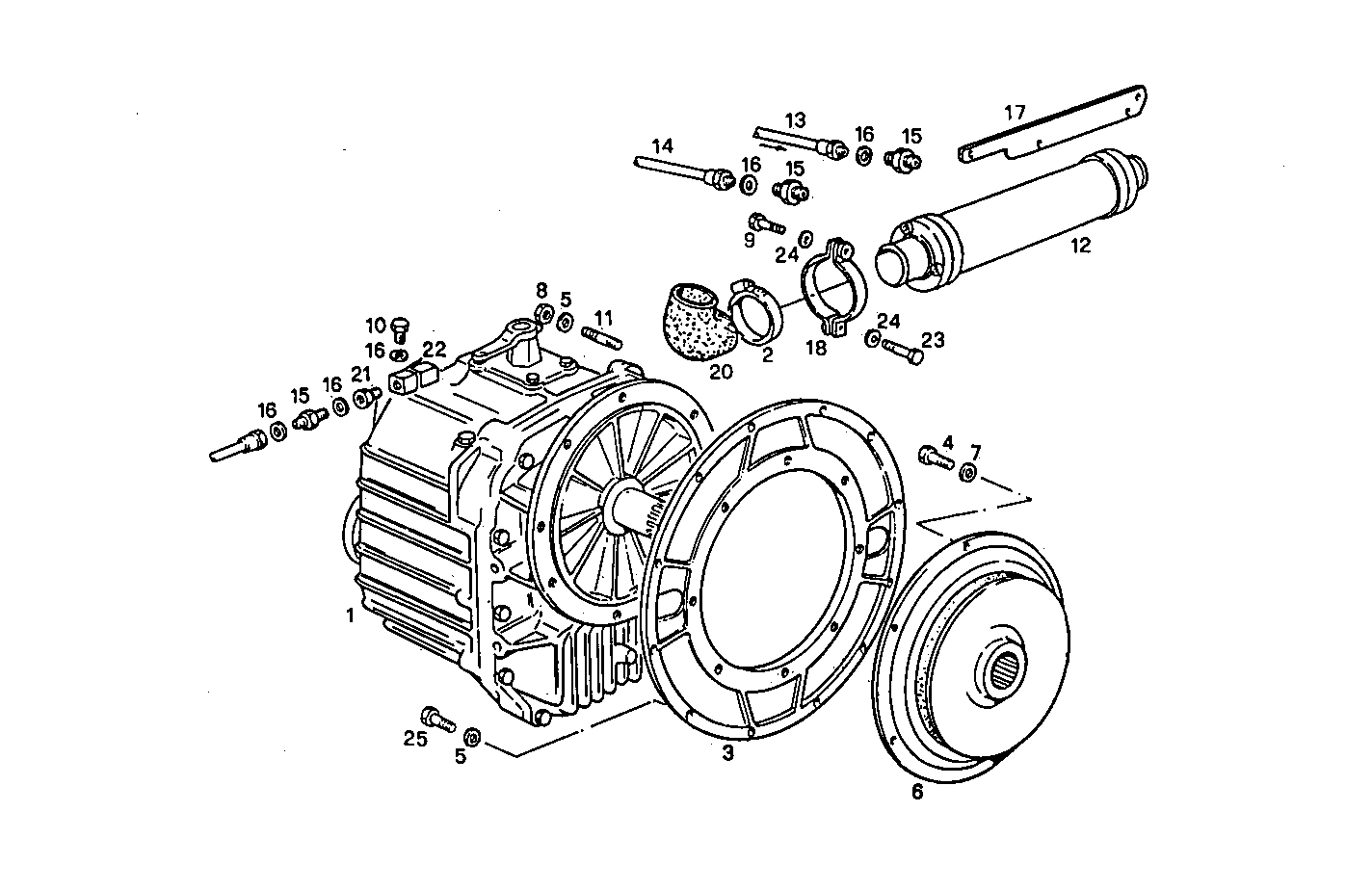

MARINE GEAR HURTH HSW 630 A
8041M09.01 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110096 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 17764793 | CLIP CLIP | 2 | |
| 3 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 18 | |
| 6 | 8005350 | FLEXPLATE FLEXPLATE | 1 | |
| 7 | 17095004 | WASHER WASHER | 8 | |
| 8 | 17038221 | HEXAGON NUT HEXAGON NUT | 18 | |
| 9 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 10183317 | LOCK PLUG LOCK PLUG | 2 | |
| 11 | 13546321 | STUD STUD | 6 | |
| 12 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 13 | 8105855 | OIL HOSE OIL HOSE | 1 | |
| 14 | 8105856 | OIL LINE OIL LINE | 1 | |
| 15 | 4935465 | PIPE SOCKET PIPE SOCKET | 4 | |
| 16 | 10257060 | SEAL GASKET SEAL GASKET | 4 | |
| 17 | 8016558 | RETAINER RETAINER | 2 | |
| 18 | 5116798 | CLIP CLIP | 4 | |
| 20 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 21 | 8105826 | PIPE SOCKET PIPE SOCKET | 2 | |
| 22 | 8107173 | PIPE SOCKET PIPE SOCKET | 2 | |
| 23 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 24 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 25 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 12 |
