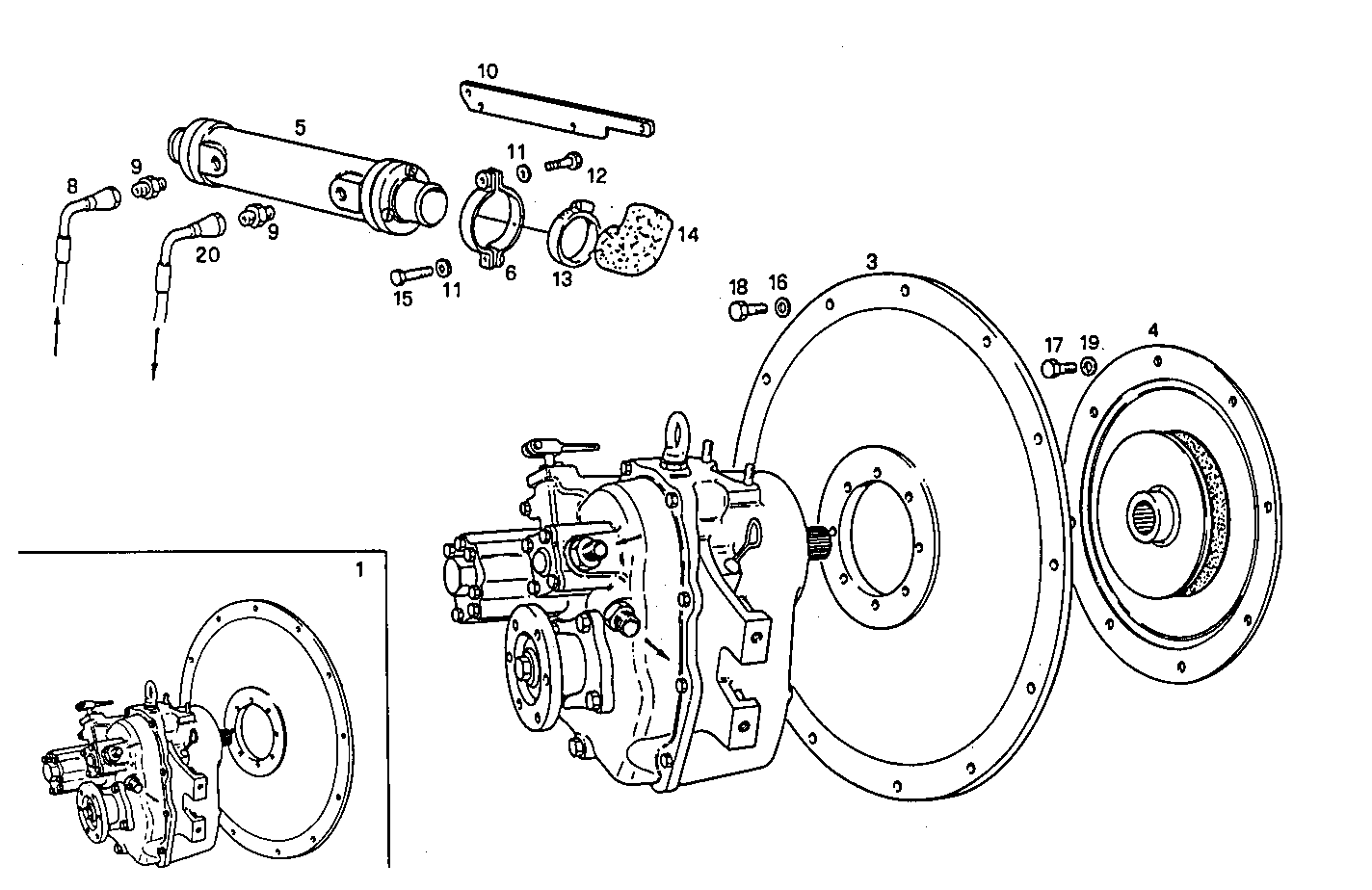

MARINE GEAR TECHNODRIVE TM 93
8041M09.02 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015902 | MARINE GEAR MARINE GEAR | 1 | |
| 3 | 8012407 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 8005350 | FLEXPLATE FLEXPLATE | 1 | |
| 5 | 4919188 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 6 | 8100667 | CLIP CLIP | 2 | |
| 7 | 4868427 | RUBBER PAD RUBBER PAD | 6 | |
| 8 | 4935779 | HOSE HOSE | 1 | |
| 9 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 10 | 4919720 | RETAINER RETAINER | 2 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 17038121 | HEXAGON NUT HEXAGON NUT | 2 | |
| 13 | 17764793 | CLIP CLIP | 1 | |
| 14 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 15 | 16607624 | SCREW SCREW | 2 | |
| 16 | 11198379 | SPRING WASHER SPRING WASHER | 12 | |
| 17 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 18 | 11306921 | SCREW SCREW | 12 | |
| 19 | 10571879 | WASHER WASHER | 8 | |
| 20 | 8105620 | HOSE HOSE | 1 |
