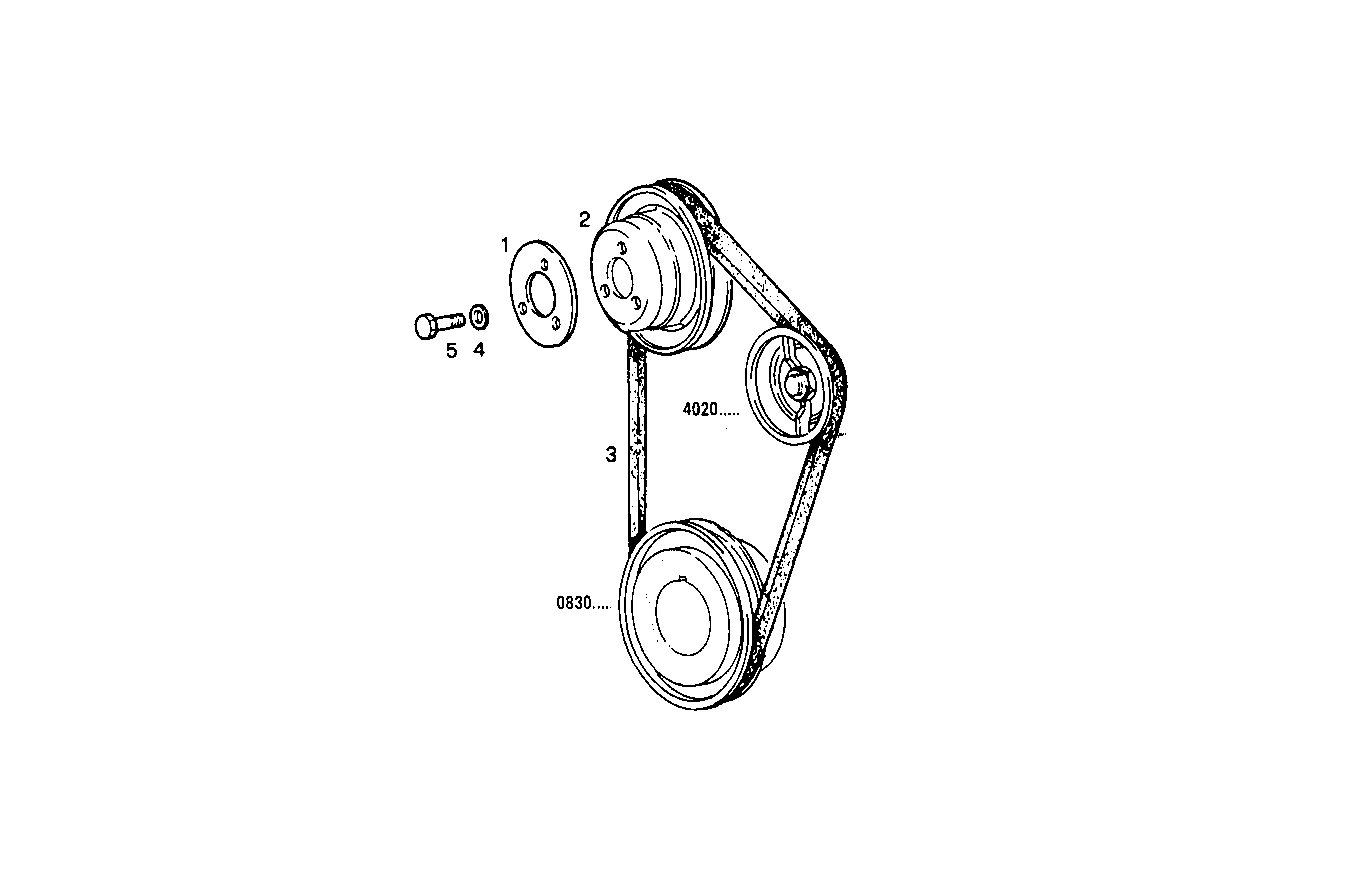

PULLEYS AND BELTS
8041M09.02 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4584861 | SPACING BAR SPACING BAR | 1 | |
| 2 | 4811416 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 3 | 4809680 | V-BELT V-BELT | 1 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 16605424 | SCREW SCREW | 3 |
