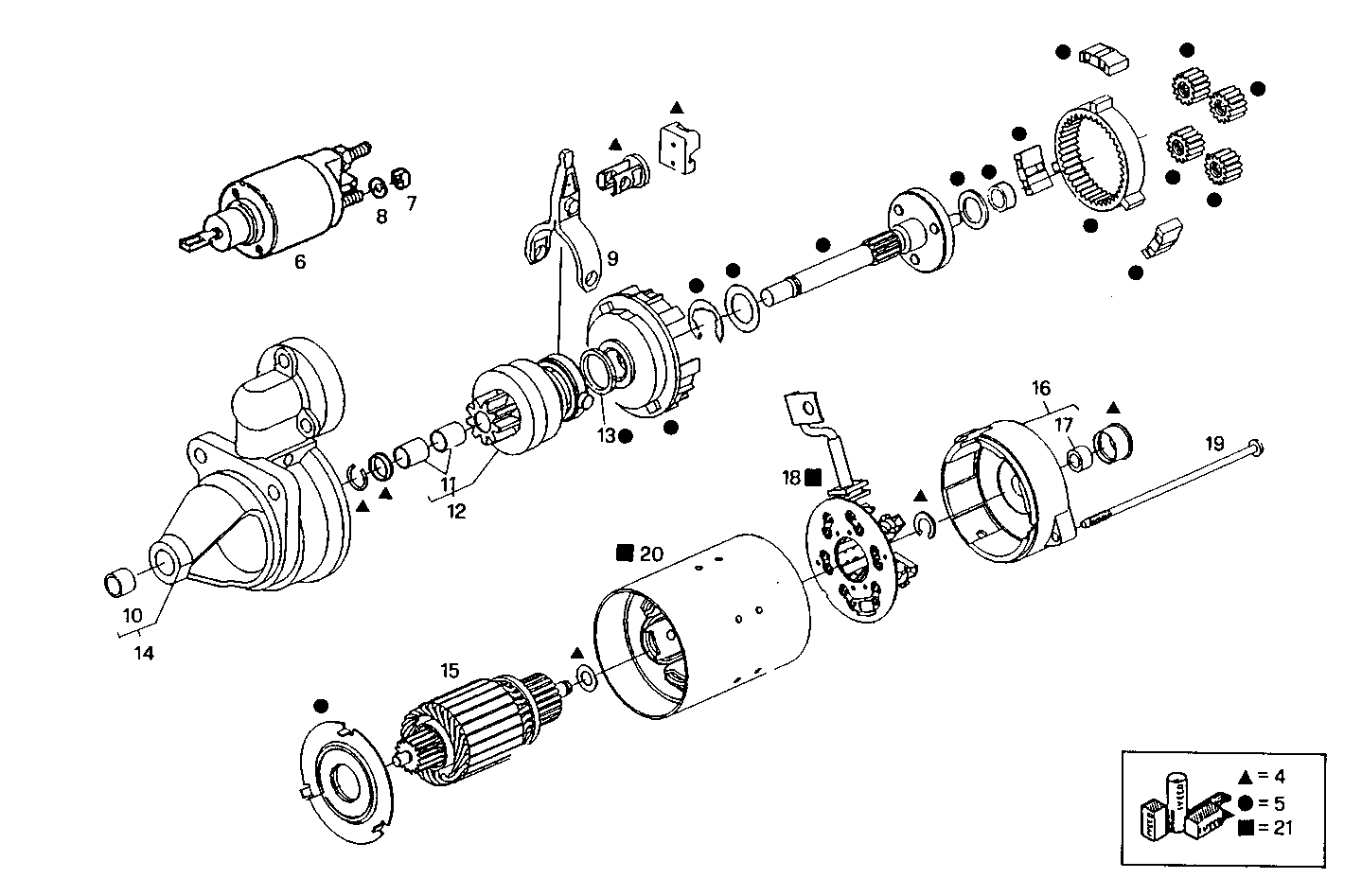

STARTER MOTOR (COMPONENTS)
8041M09.02 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 4 | 9972036 | KIT-STARTER KIT-STARTER | 1 | |
| 5 | 9972035 | KIT-STARTER KIT-STARTER | 1 | |
| 6 | 9971804 | SOLENOID SOLENOID | 1 | |
| 7 | 12164721 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 9971894 | WASHER WASHER | 1 | |
| 9 | 9971886 | LEVER LEVER | 1 | |
| 10 | 9972030 | BUSH BUSH | 1 | |
| 11 | 79033670 | BUSH BUSH | 2 | |
| 12 | 9972026 | PINION PINION | 1 | |
| 13 | 9972037 | SPACING BAR SPACING BAR | 1 | |
| 14 | 9972027 | SUPPORT SUPPORT | 1 | |
| 15 | 9972025 | STARTER ARMATURE STARTER ARMATURE | 1 | |
| 16 | 9972034 | COVER COVER | 1 | |
| 17 | 9971891 | BUSH BUSH | 1 | |
| 18 | 9972033 | BRUSH HOLDER BRUSH HOLDER | 1 | |
| 19 | 9972031 | SCREW SCREW | 2 | |
| 20 | 9972032 | STARTER WINDING STARTER WINDING | 1 | |
| 21 | 9972038 | KIT-STARTER KIT-STARTER | 1 |
