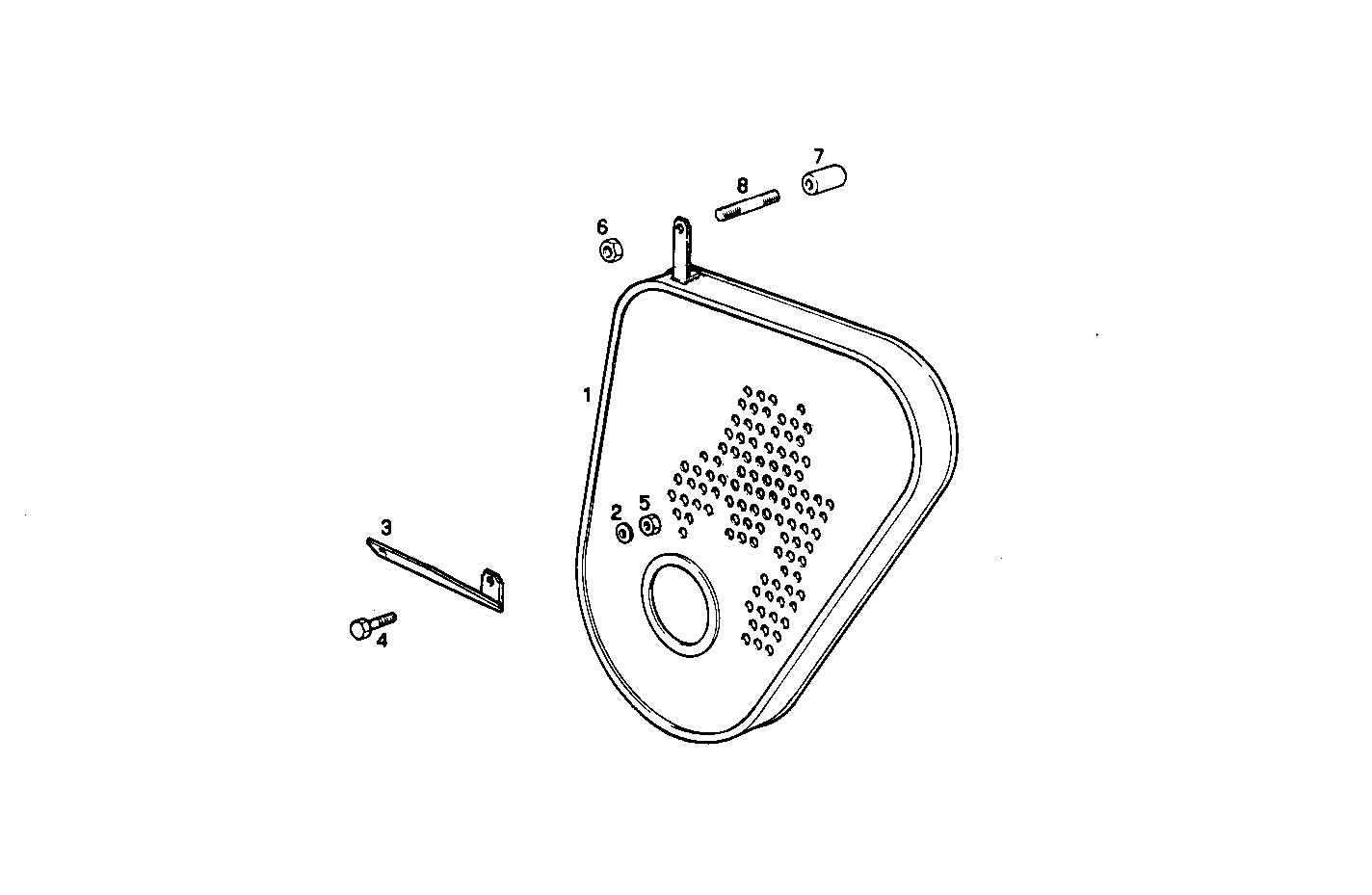

GUARD
8041M09.40 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109376 | PROTECTION PROTECTION | 1 | |
| 2 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 3 | 8109407 | RETAINER RETAINER | 1 | |
| 4 | 16605424 | SCREW SCREW | 1 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 8105618 | SPACING BAR SPACING BAR | 1 | |
| 8 | 16745124 | STUD STUD | 1 |
