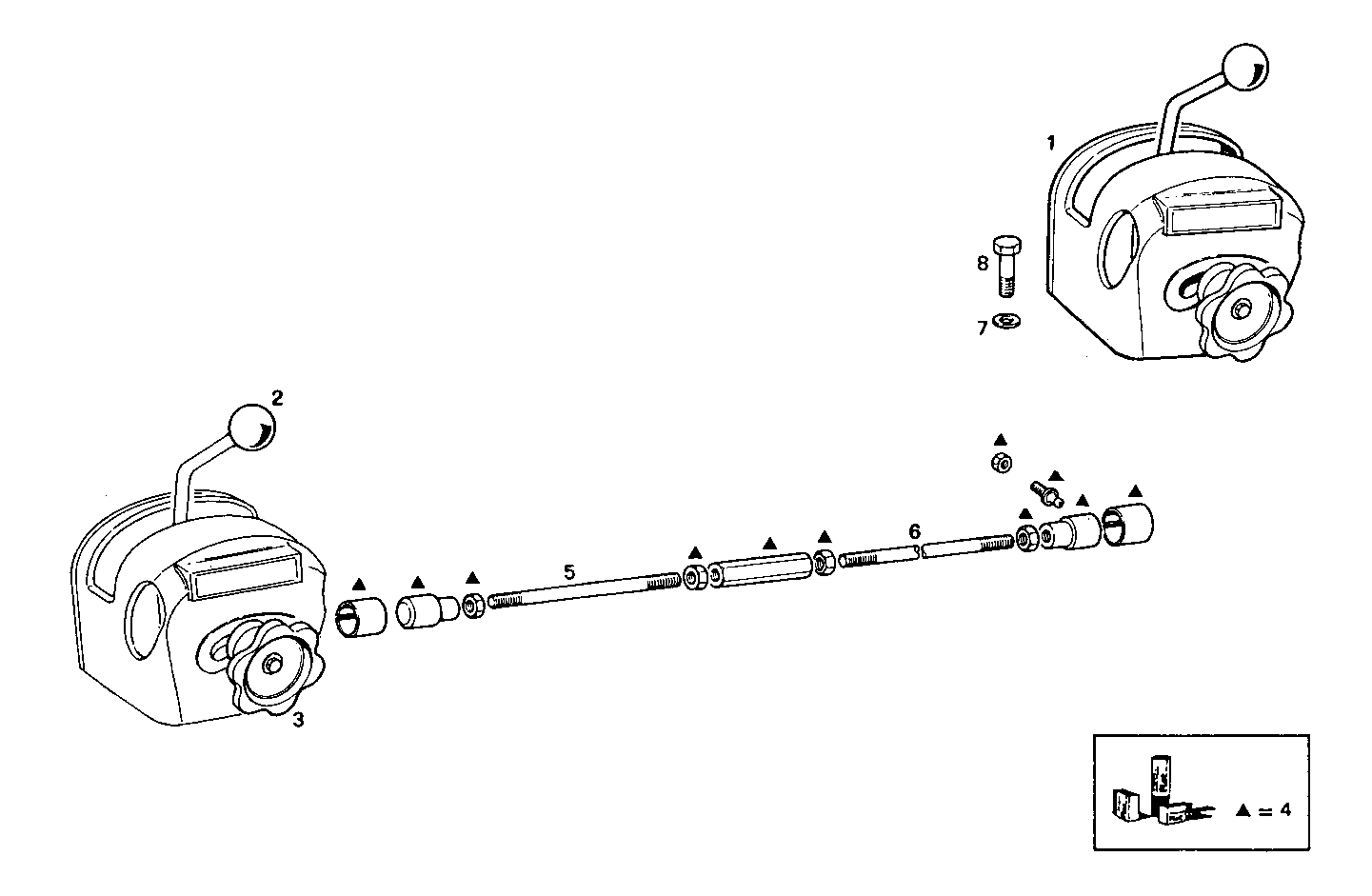

HAND ACCELERATOR
8041M09.40 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927113 | HAND ACCELERATOR HAND ACCELERATOR | 1 | |
| 2 | 4927041 | HANDLE BALL HANDLE BALL | 1 | |
| 3 | 4927042 | HANDWHEEL HANDWHEEL | 1 | |
| 4 | 8090372 | KIT KIT | 1 | |
| 5 | 8823236 | TIE ROD TIE ROD | 1 | |
| 6 | 4936606 | TIE ROD TIE ROD | 1 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 16607624 | SCREW SCREW | 2 |
