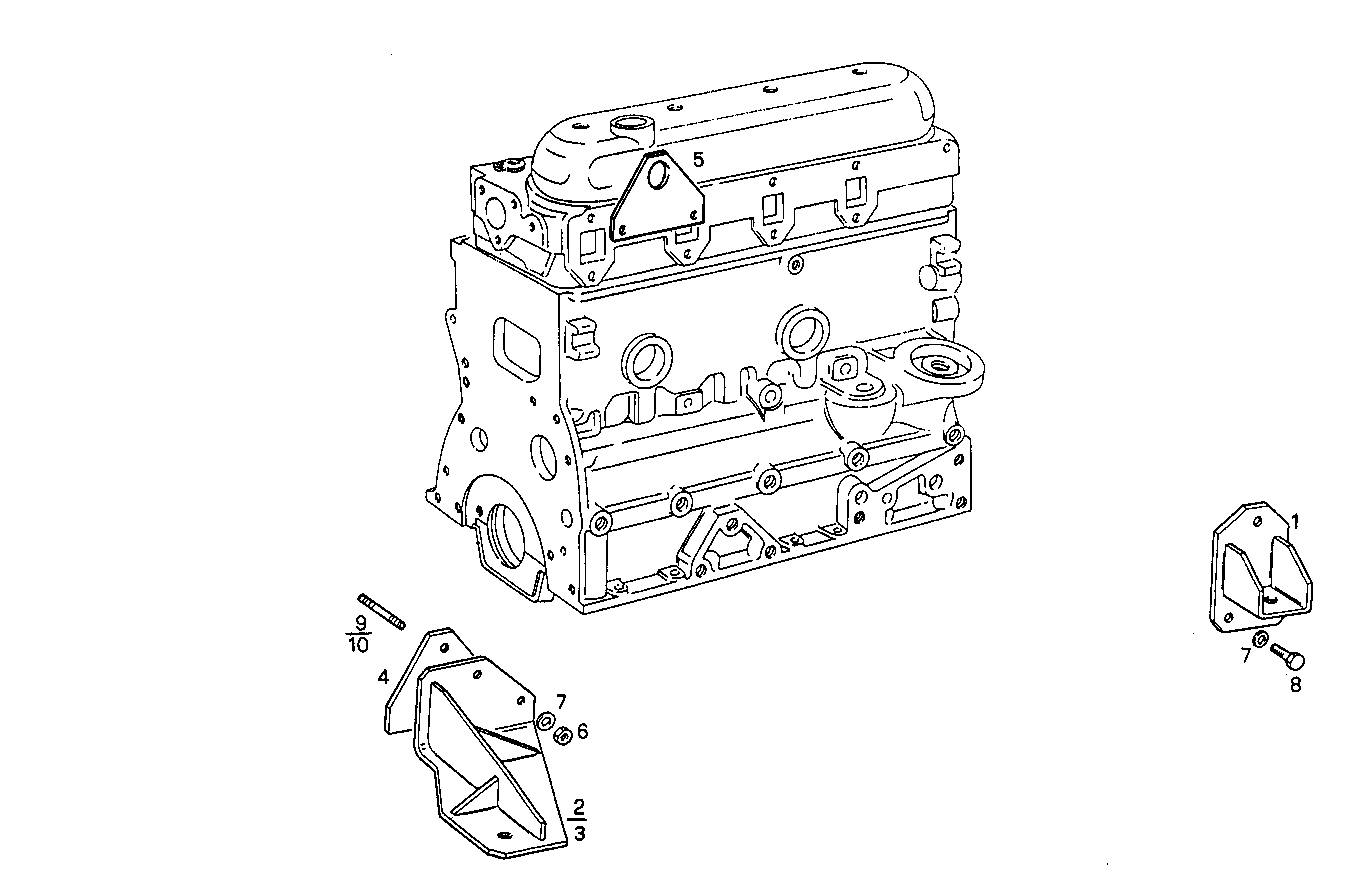

ENGINE SUSPENSION
8041M09.42 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4928444 | ENGINE SUSPENSION ENGINE SUSPENSION | 2 | |
| 2 | 4919786 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 3 | 4919787 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 4 | 4919820 | SPACING BAR SPACING BAR | 2 | |
| 5 | 4930458 | PLATE PLATE | 1 | |
| 6 | 17038421 | HEXAGON NUT HEXAGON NUT | 6 | |
| 7 | 17091074 | WASHER WASHER | 12 | |
| 8 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 9 | 16733224 | STUD STUD | 5 | |
| 10 | 16733424 | STUD STUD | 1 |
