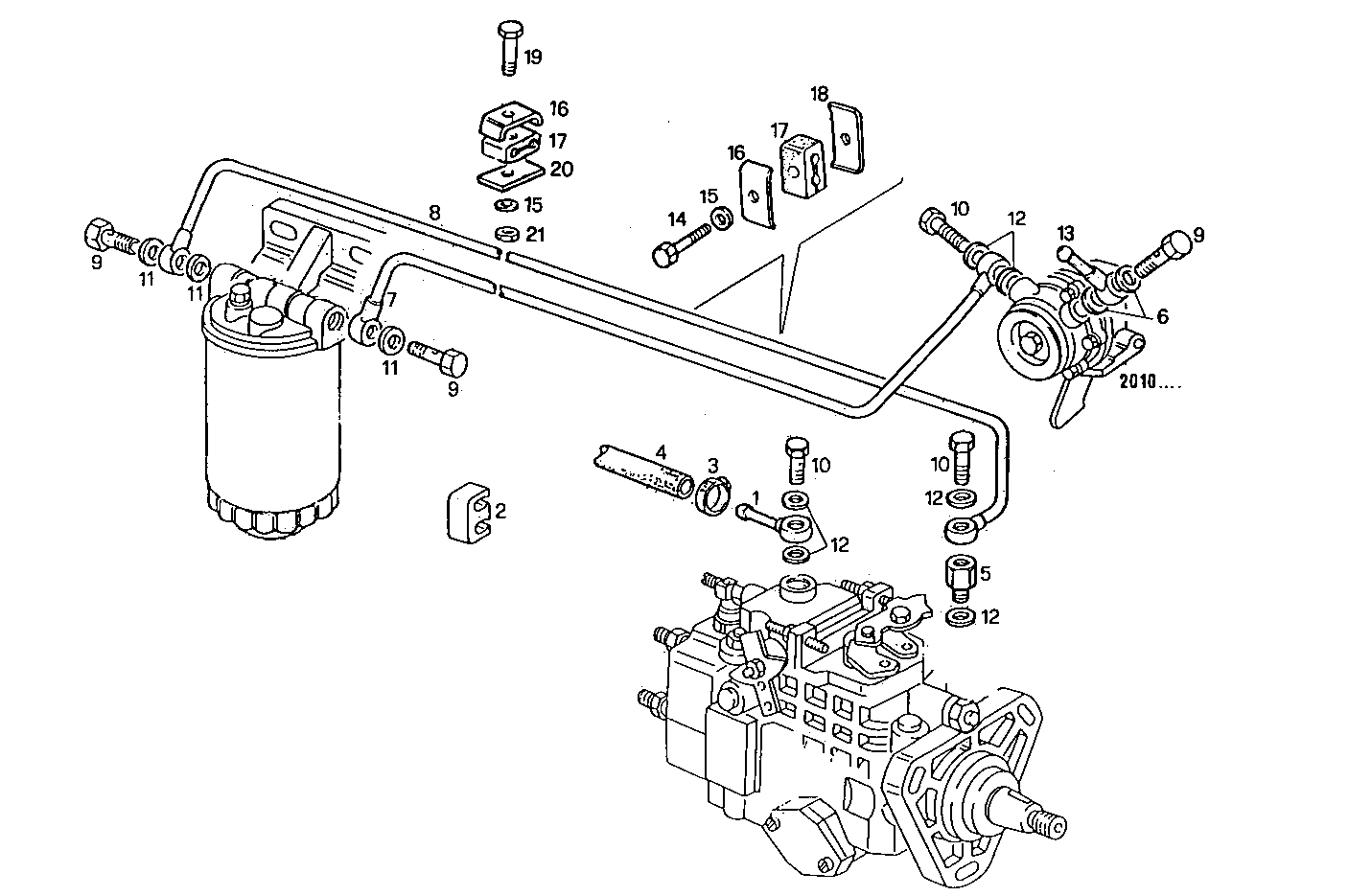

FUEL LINES
8041M09.42 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4789860 | BANJO COUPLING BANJO COUPLING | 1 | |
| 2 | 4807808 | RETAINER RETAINER | 1 | |
| 3 | 18088192 | CLIP CLIP | 2 | |
| 4 | 17724587 | RUBBER HOSE RUBBER HOSE | 1 | |
| 5 | 4802434 | THREADED UNION THREADED UNION | 1 | |
| 6 | 98474306 | WASHER WASHER | 4 | |
| 7 | 8024154 | FUEL LINE FUEL LINE | 1 | |
| 8 | 8024155 | FUEL LINE FUEL LINE | 1 | |
| 9 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 10 | 4864082 | BANJO BOLT BANJO BOLT | 3 | |
| 11 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 12 | 4858607 | WASHER WASHER | 5 | |
| 13 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 14 | 16602324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 11199279 | SPRING WASHER SPRING WASHER | 2 | |
| 16 | 4659218 | CLIP CLIP | 2 | |
| 17 | 4659217 | DOWEL DOWEL | 2 | |
| 18 | 4659219 | PLATE PLATE | 1 | |
| 19 | 16602524 | SCREW SCREW | 1 | |
| 20 | 8017675 | RETAINER RETAINER | 1 | |
| 21 | 17037721 | NUT NUT | 1 | |
| 22 | 8034088 | BANJO COUPLING BANJO COUPLING | 1 |
