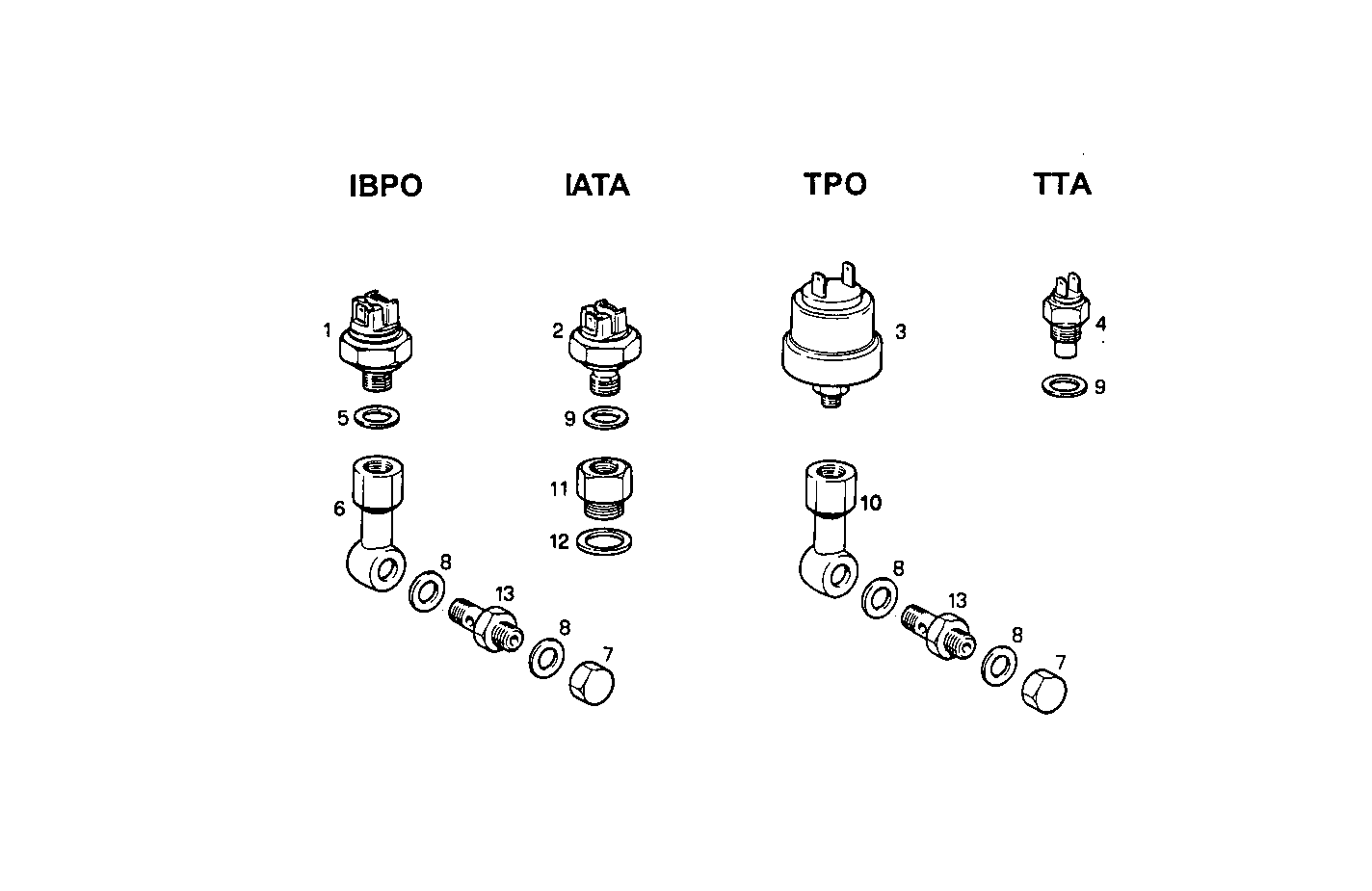

SENDER UNITS FOR INSTRUMENTS
8041M09.42 — 8041M09
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020872 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8019334 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 8008031 | TRANSMITTER TRANSMITTER | 1 | |
| 4 | 8008030 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 4858607 | WASHER WASHER | 1 | |
| 6 | 4928011 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 11902117 | PLUG PLUG | 2 | |
| 8 | 4858606 | GASKET GASKET | 4 | |
| 9 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 10 | 4927546 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 4927760 | PIPE SOCKET PIPE SOCKET | 2 | |
| 12 | 4858609 | WASHER WASHER | 1 | |
| 13 | 4607792 | SCREW CONNECTOR SCREW CONNECTOR | 2 |
