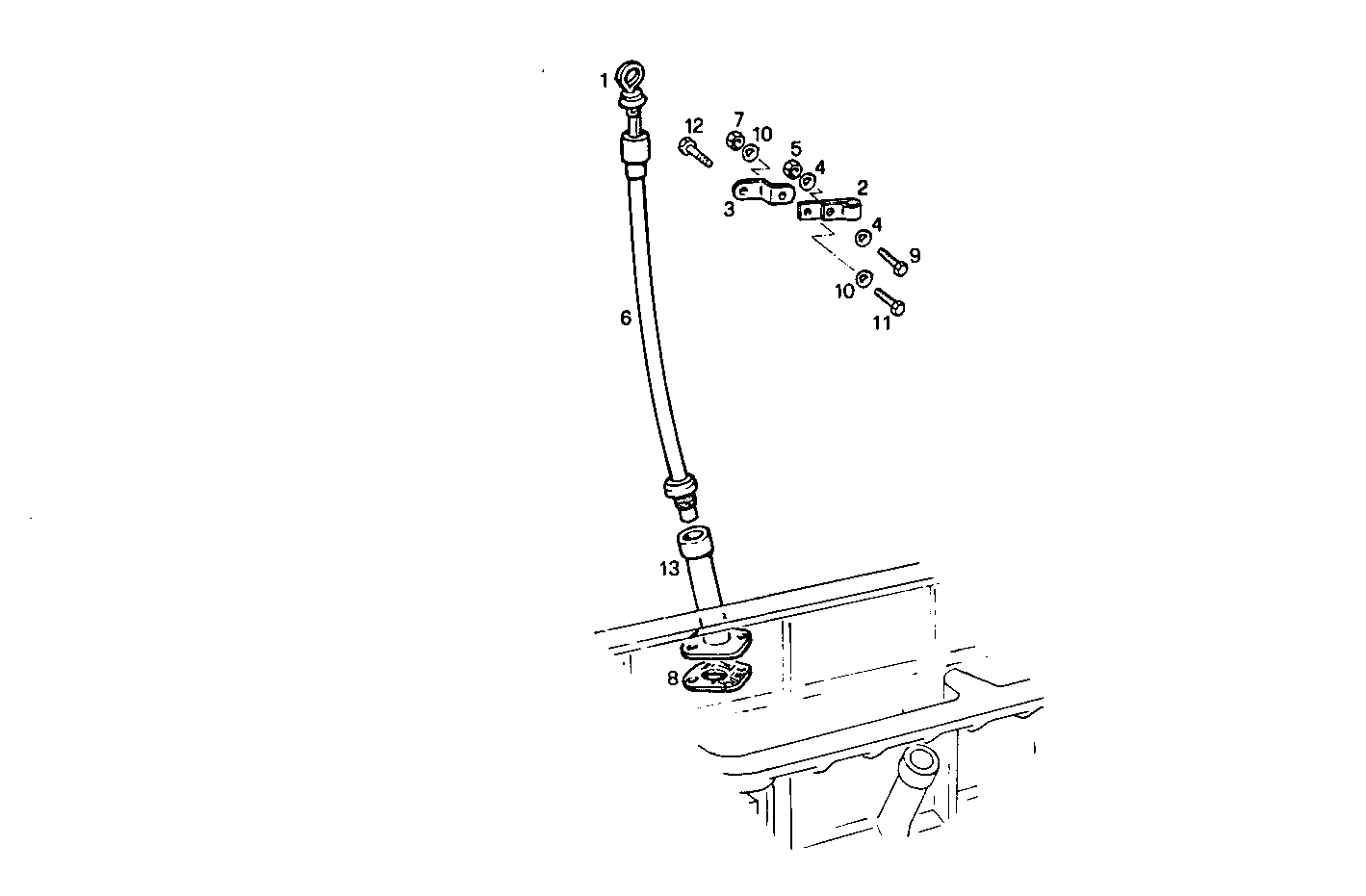

LONG OIL DIPSTICK RIGHT SIDE
8041Si25.05 — 8041Si25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009361 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 2 | 8006649 | CLIP CLIP | 1 | |
| 3 | 8108989 | RETAINER RETAINER | 1 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 8109240 | ROD GUIDE ROD GUIDE | 1 | |
| 7 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 98401047 | GASKET GASKET | 1 | |
| 9 | 16605324 | SCREW SCREW | 1 | |
| 10 | 17088471 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 10902021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 11343821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 8105454 | OIL LINE OIL LINE | 1 |
