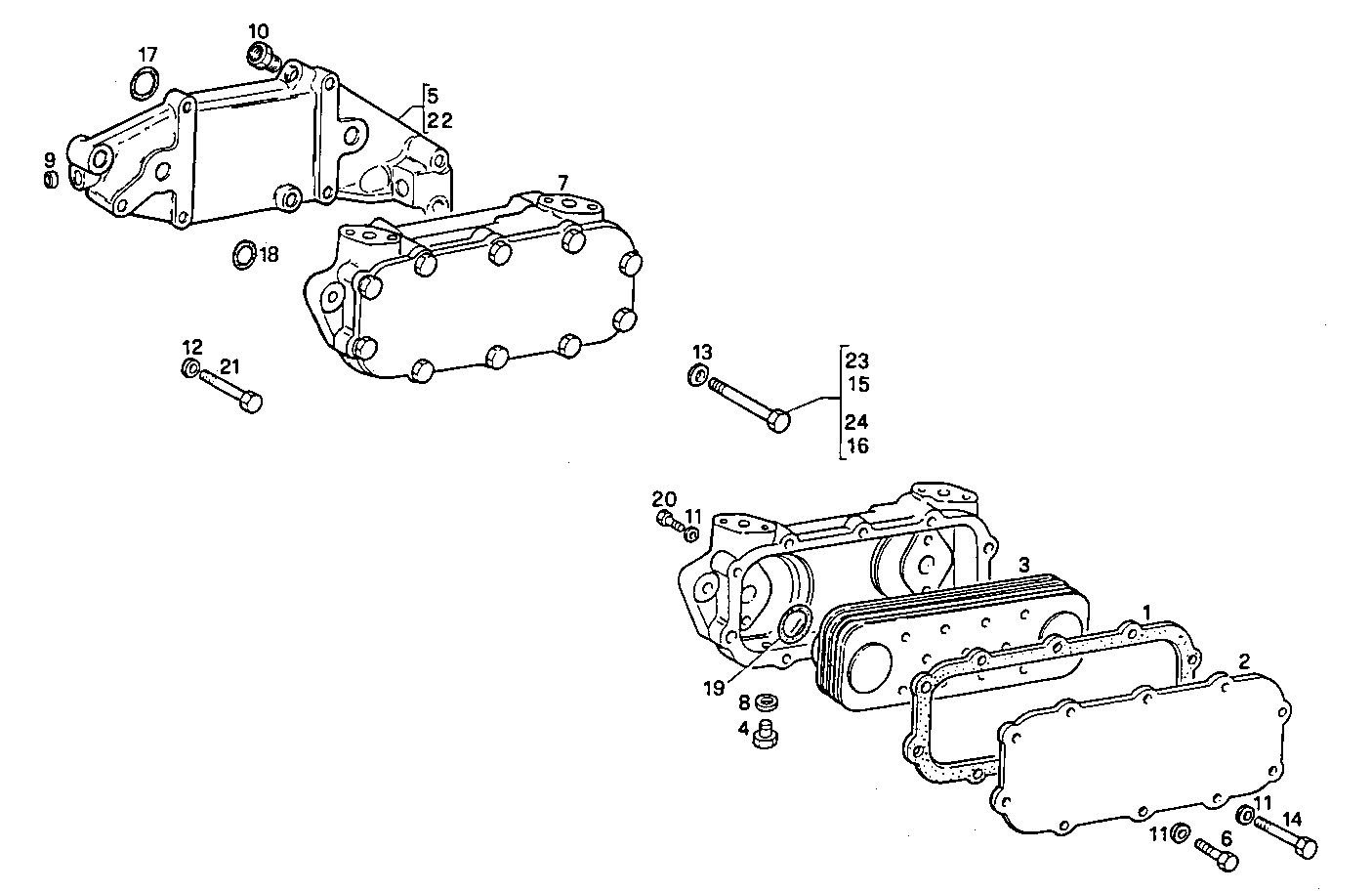

OIL - WATER HEAT EXCHANGER
8041Si25.05 — 8041Si25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4848521 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 4759805 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 3 | 4761704 | OIL COOLER OIL COOLER | 1 | |
| 4 | 98435232 | PLUG PLUG | 1 | |
| 5 | 4853973 | SUPPORT SUPPORT | 1 | |
| 6 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 7 | 4761918 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 8 | 4858605 | WASHER WASHER | 1 | |
| 9 | 14328501 | LOCK PLUG LOCK PLUG | 1 | |
| 10 | 4820056 | THREADED UNION THREADED UNION | 1 | |
| 11 | 17094914 | WASHER WASHER | 10 | |
| 12 | 17090274 | WASHER WASHER | 1 | |
| 13 | 17095304 | WASHER WASHER | 3 | |
| 14 | 16044921 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 15 | 16610524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16610924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17281981 | O-RING O-RING | 2 | |
| 18 | 14457581 | O-RING O-RING | 2 | |
| 19 | 98465110 | O-RING O-RING | 2 | |
| 20 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 21 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 22 | 4759320 | SUPPORT SUPPORT | 1 | |
| 23 | 15541021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 15541521 | SCREW SCREW | 2 |
