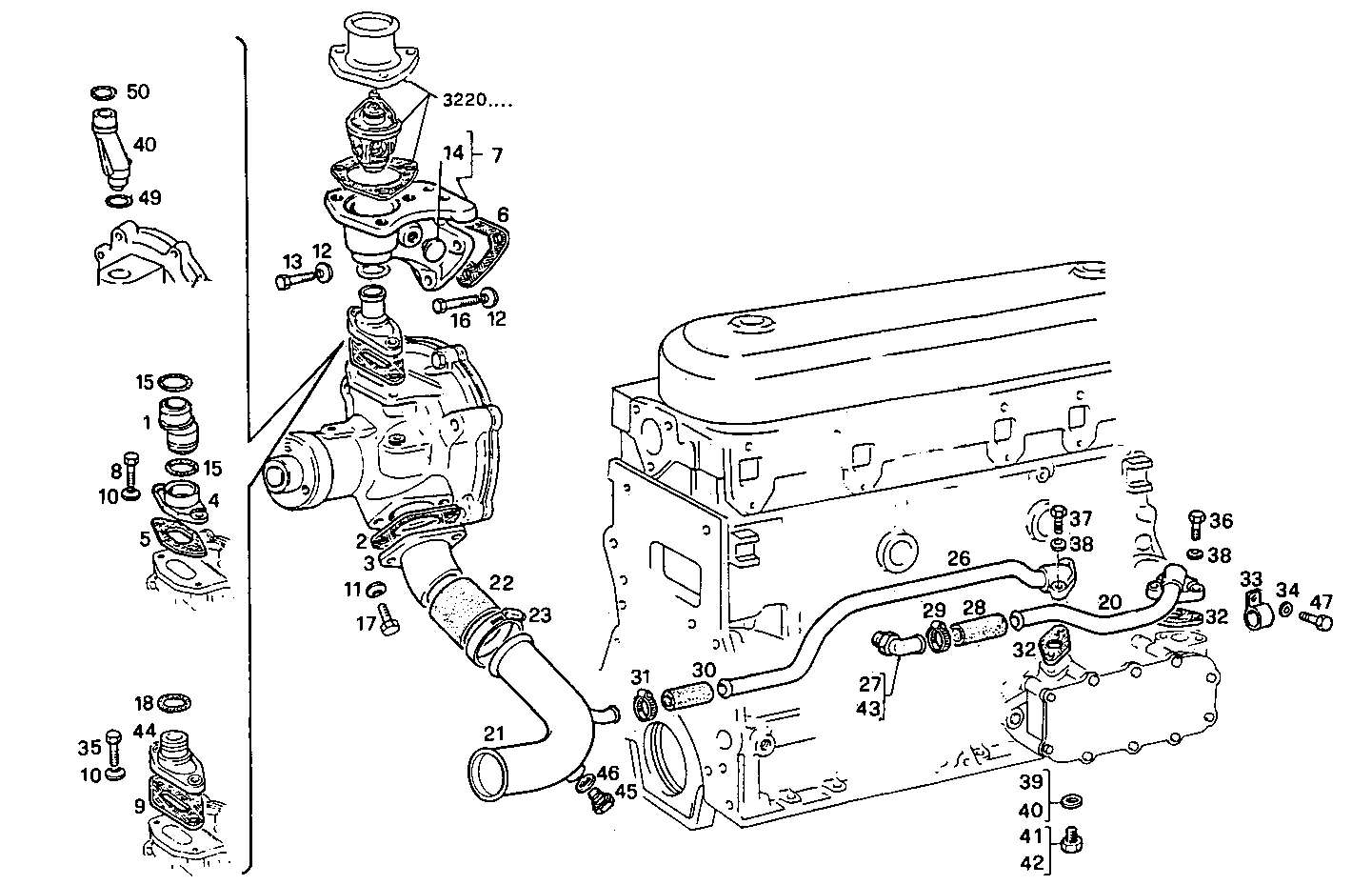

WATER LINES

8041Si25.55 — 8041Si25

Parts List

#	Part No	Name / Description	Qty
1	4859908	PIPE SOCKET PIPE SOCKET	1
2	98418621	GASKET GASKET	1
3	4697838	WATER PIPE WATER PIPE	1
4	4859907	PIPE SOCKET PIPE SOCKET	1
5	98417182	FLAT ENGINE GKT FLAT ENGINE GKT	1
6	4851926	FLAT ENGINE GKT FLAT ENGINE GKT	1
7	4823608	THERMOSTAT BODY THERMOSTAT BODY	1
8	4798845	SCREW SCREW	2
9	4848840	FLAT ENGINE GKT FLAT ENGINE GKT	1
10	14496521	WASHER WASHER	2
11	17094914	WASHER WASHER	2
12	11198374	SPRING WASHER SPRING WASHER	3
13	11234724	HEXAGON BOLT HEXAGON BOLT	2
14	16997611	THREADED PLUG THREADED PLUG	1
15	17288681	O-RING O-RING	2
16	15004021	HEXAGON BOLT HEXAGON BOLT	1
17	98401723	HEXAGON BOLT HEXAGON BOLT	2
18	14462881	O-RING O-RING	1
20	4760316	WATER PIPE WATER PIPE	1
21	8112802	WATER PIPE WATER PIPE	1
22	17742887	RUBBER SLEEVE RUBBER SLEEVE	1
23	17764791	CLIP CLIP	2
26	4760317	WATER PIPE WATER PIPE	1
27	4760312	THREADED UNION THREADED UNION	1
28	98425606	WATER HOSE WATER HOSE	1
29	17764692	CLIP CLIP	2
30	17737687	WATER HOSE WATER HOSE	1
31	17764491	CLIP CLIP	2
32	4853970	FLAT ENGINE GKT FLAT ENGINE GKT	2
33	4763572	FASTENING BRACKET FASTENING BRACKET	1
34	17091074	WASHER WASHER	1
35	4838482	HEXAGON BOLT HEXAGON BOLT	2
36	16605624	HEXAGON BOLT HEXAGON BOLT	2
37	16625734	HEXAGON BOLT HEXAGON BOLT	2
38	17089474	SPRING WASHER SPRING WASHER	4
39	16508460	WASHER WASHER	1
40	4858609	WASHER WASHER	1
41	10305171	PLUG PLUG	1
42	16992440	THREADED PLUG THREADED PLUG	1
43	98418647	PIPE SOCKET PIPE SOCKET	1
44	4770247	WATER PIPE WATER PIPE	1
45	16992111	THREADED PLUG THREADED PLUG	1
46	4858606	GASKET GASKET	1
47	16609824	HEXAGON BOLT HEXAGON BOLT	1
48	98464616	WATER PIPE WATER PIPE	1
49	98458442	O-RING O-RING	1
50	98458443	O-RING O-RING	1
