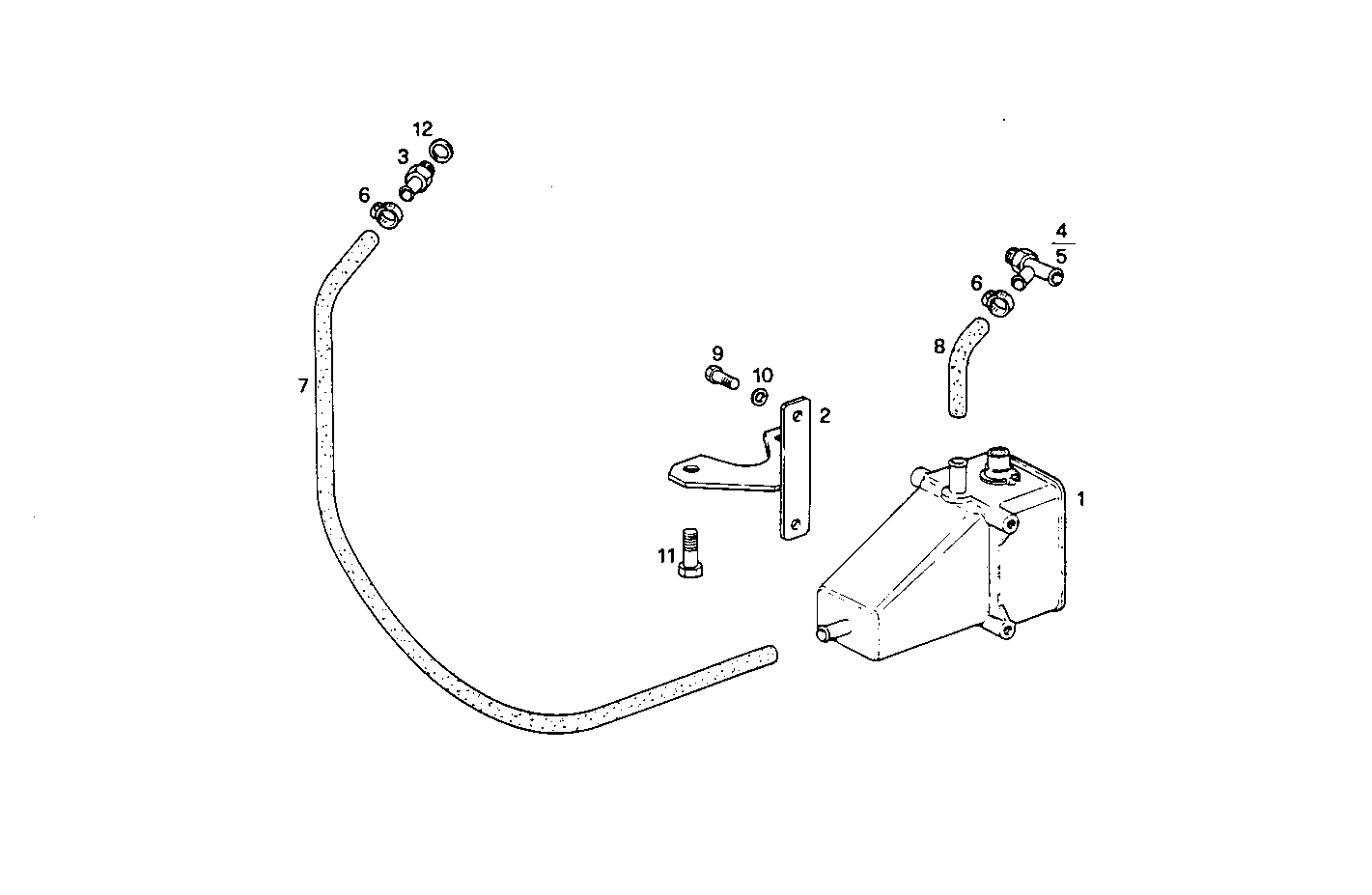

WATER PREHEATER DEVICE - 220V
8041Si25.55 — 8041Si25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008375 | HEATER HEATER | 1 | |
| 2 | 8009730 | SUPPORT SUPPORT | 1 | |
| 3 | 8112804 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8010794 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 8009691 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 17764492 | CLIP CLIP | 2 | |
| 7 | 8009703 | WATER HOSE WATER HOSE | 1 | |
| 8 | 8009704 | WATER HOSE WATER HOSE | 1 | |
| 9 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17088474 | WASHER WASHER | 2 | |
| 11 | 15888821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 10257460 | SEAL GASKET SEAL GASKET | 1 |
