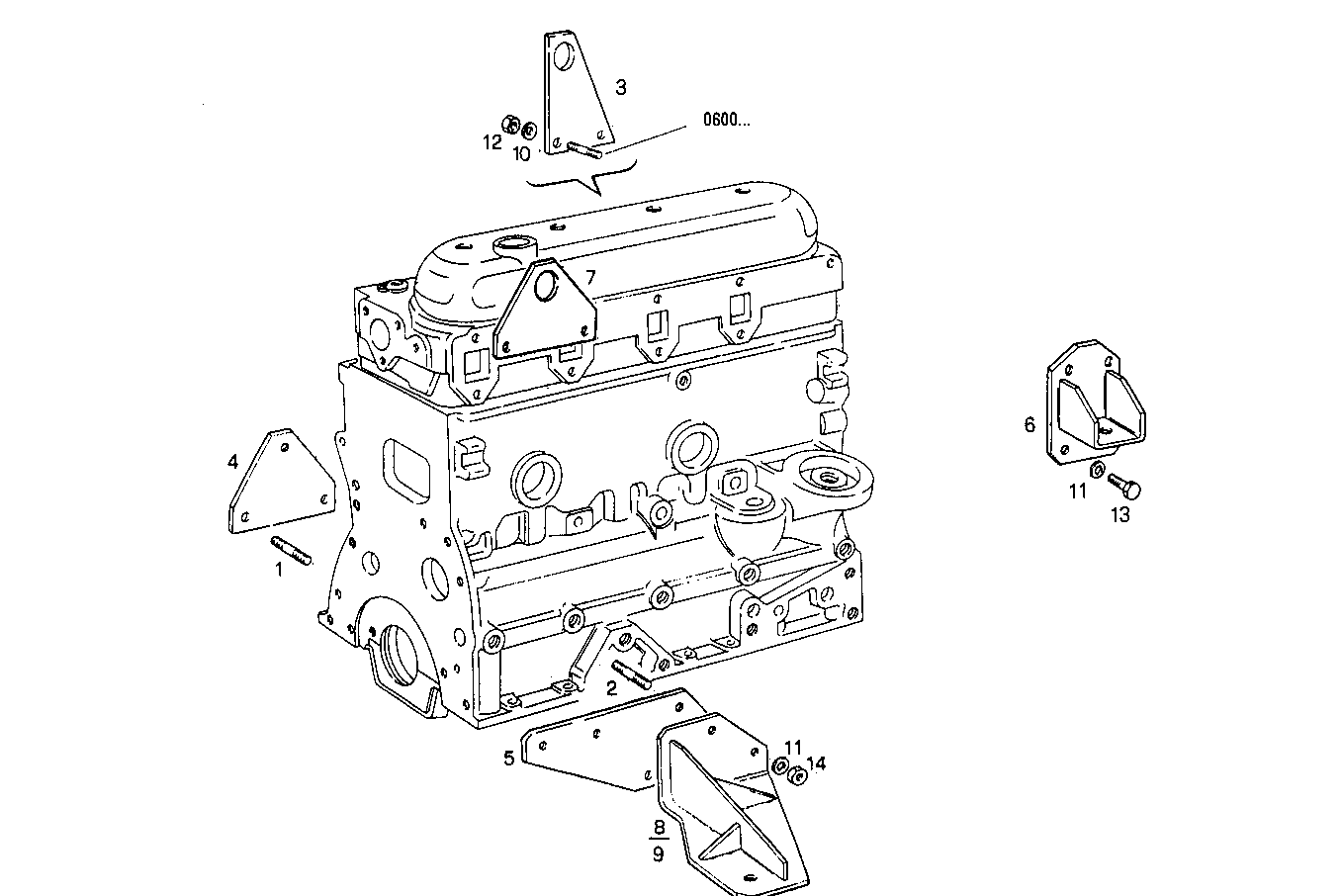

ENGINE SUSPENSION
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16733224 | STUD STUD | 3 | |
| 2 | 16733424 | STUD STUD | 3 | |
| 3 | 4932612 | HOOK HOOK | 1 | |
| 4 | 4919820 | SPACING BAR SPACING BAR | 1 | |
| 5 | 8112724 | SPACING BAR SPACING BAR | 1 | |
| 6 | 8113092 | SUPPORT SUPPORT | 1 | |
| 7 | 4930458 | PLATE PLATE | 1 | |
| 8 | 4919786 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 9 | 8111075 | SUPPORT SUPPORT | 1 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 11198379 | SPRING WASHER SPRING WASHER | 14 | |
| 12 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 13 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 14 | 17038221 | HEXAGON NUT HEXAGON NUT | 6 |
