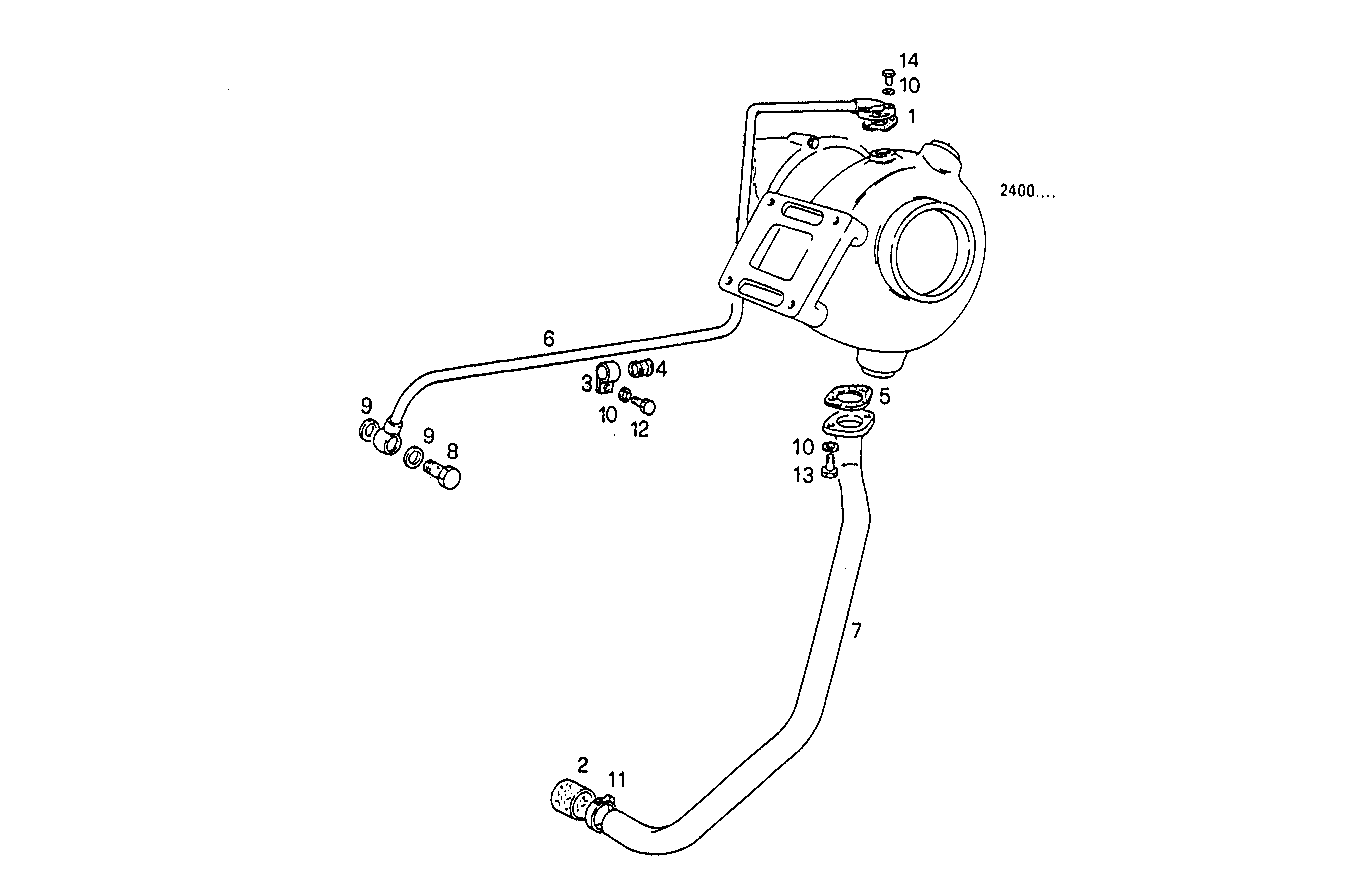

LUBE OIL LINES
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 98420478 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 5 | 98415923 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 8011347 | OIL LINE OIL LINE | 1 | |
| 7 | 8111052 | OIL LINE OIL LINE | 1 | |
| 8 | 4864084 | BANJO BOLT BANJO BOLT | 1 | |
| 9 | 98474309 | WASHER WASHER | 2 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 11 | 17764593 | CLIP CLIP | 2 | |
| 12 | 16605424 | SCREW SCREW | 1 | |
| 13 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 |
