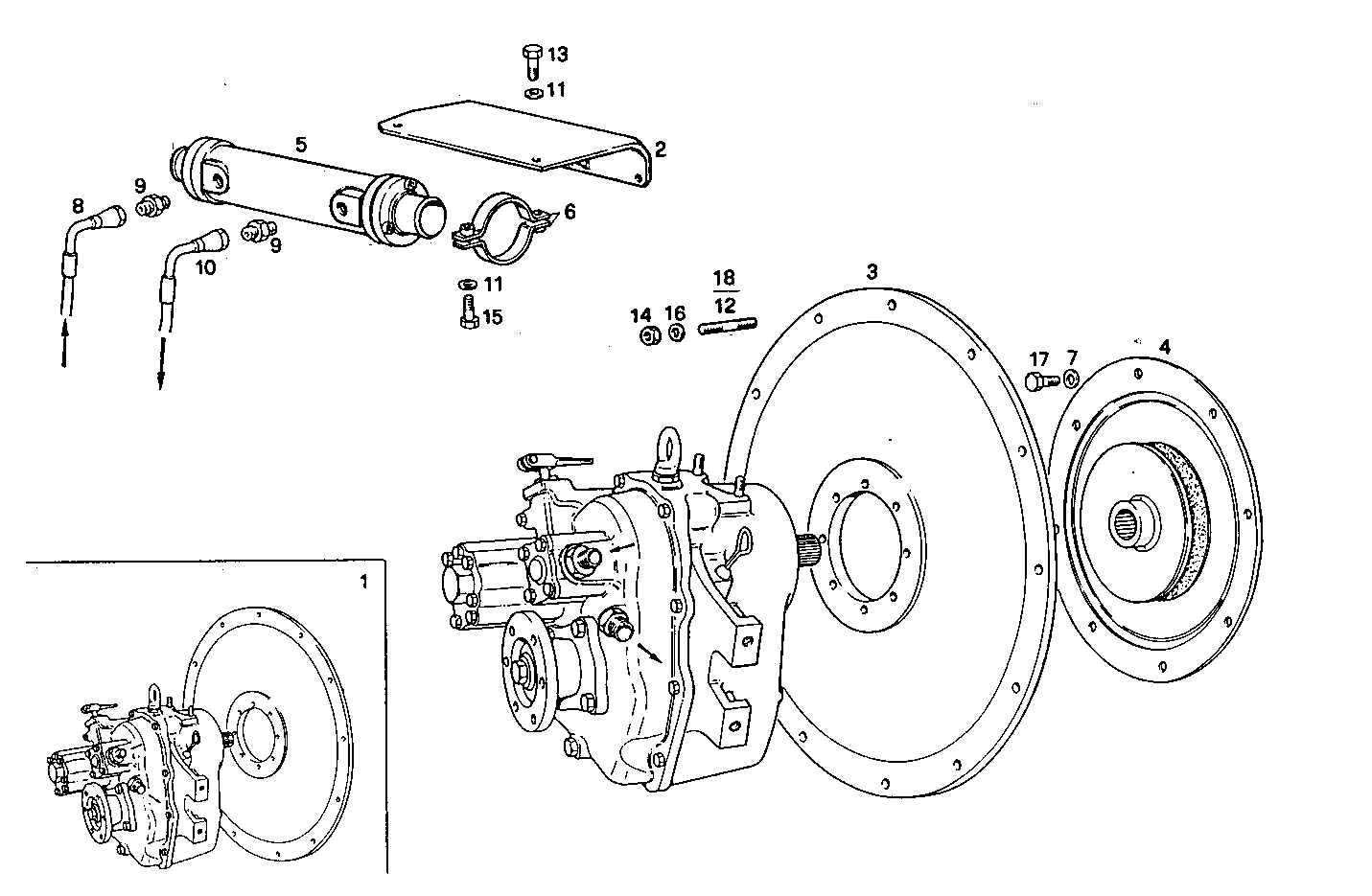

MARINE GEAR TECHNODRIVE TM 93
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015893 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8018591 | SUPPORT SUPPORT | 1 | |
| 3 | 8012407 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 8113696 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 5 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 6 | 5116798 | CLIP CLIP | 4 | |
| 7 | 17494934 | WASHER WASHER | 8 | |
| 8 | 4935779 | HOSE HOSE | 1 | |
| 9 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 10 | 8105620 | HOSE HOSE | 1 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 13449721 | STUD STUD | 2 | |
| 13 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 15 | 16606024 | SCREW SCREW | 2 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 17 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 18 | 13449521 | STUD STUD | 10 |
