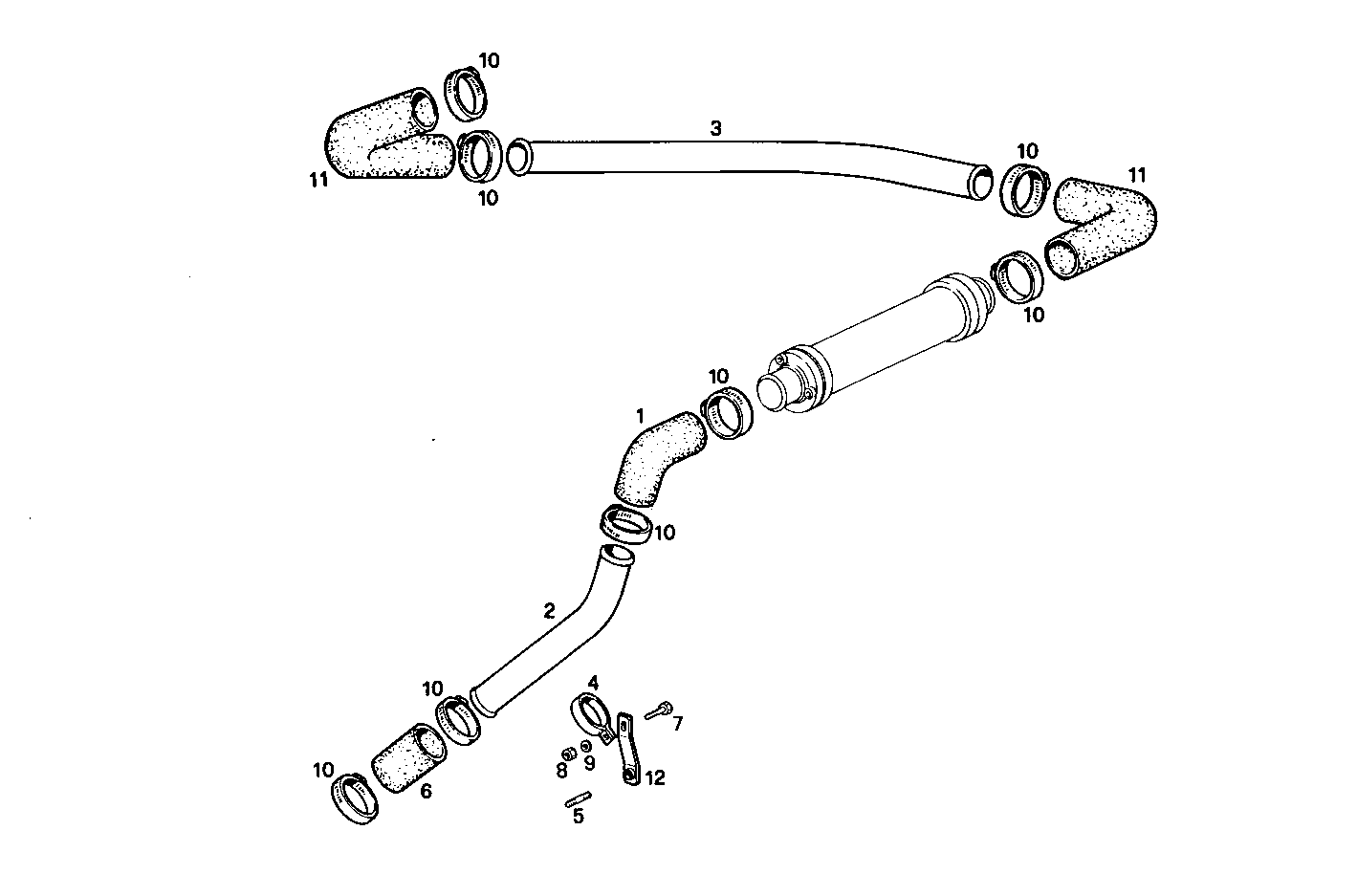

MARINE GEAR TECHNODRIVE TM 93
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016576 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 2 | 8018618 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8018617 | WATER PIPE WATER PIPE | 1 | |
| 4 | 4936741 | CLIP CLIP | 2 | |
| 5 | 13449321 | STUD STUD | 1 | |
| 6 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 17764793 | CLIP CLIP | 8 | |
| 11 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 12 | 8005101 | RETAINER RETAINER | 1 |
