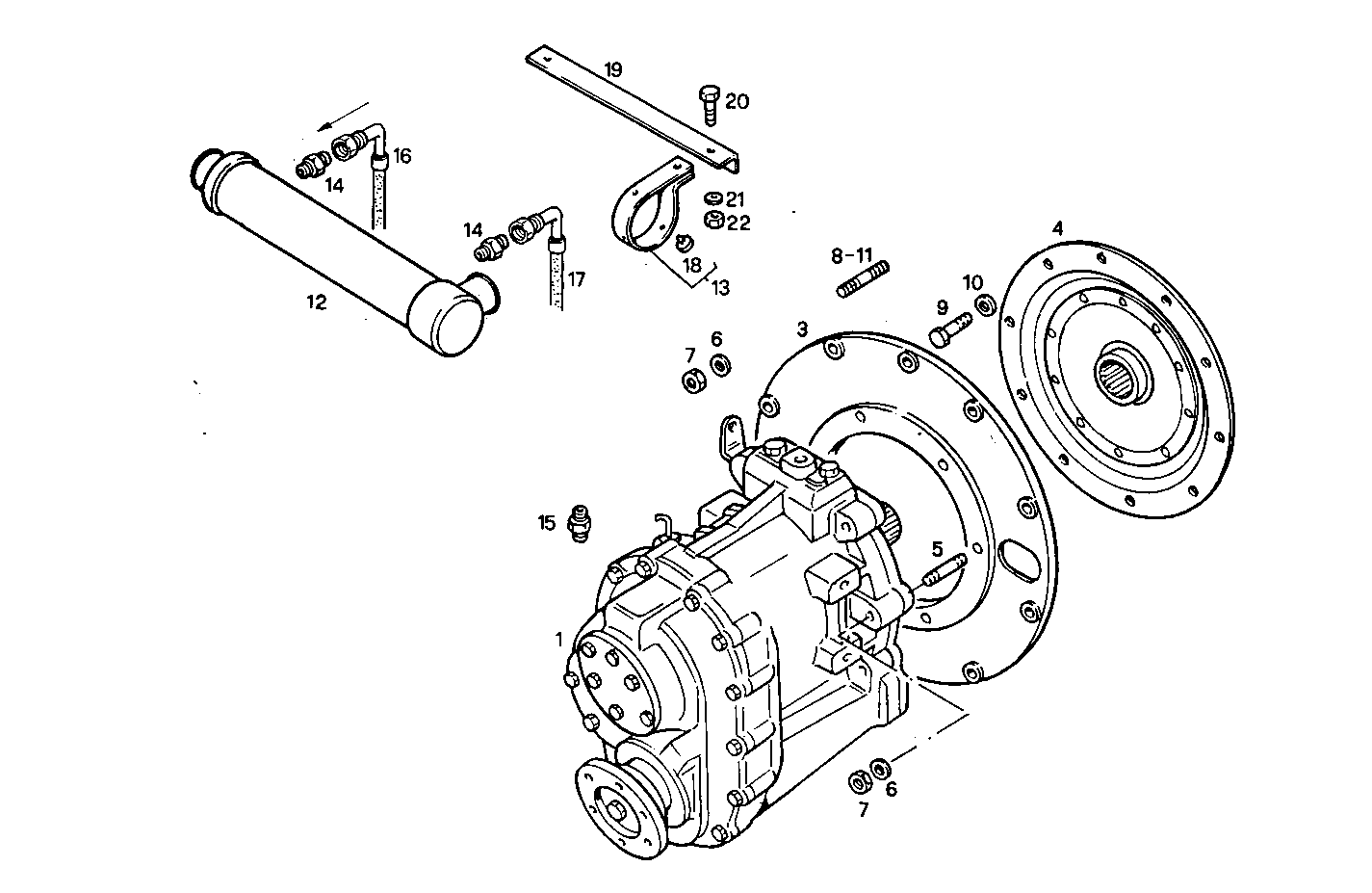

MARINE GEAR ZF-MPM IRM 41 A2
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005774 | MARINE GEAR MARINE GEAR | 1 | |
| 3 | 4934782 | COUPLING BELL COUPLING BELL | 1 | |
| 4 | 8113696 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 5 | 13547221 | STUD STUD | 6 | |
| 6 | 11198371 | SPRING WASHER SPRING WASHER | 18 | |
| 7 | 12164711 | HEXAGON NUT HEXAGON NUT | 20 | |
| 8 | 13449721 | STUD STUD | 10 | |
| 9 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 10 | 10571871 | SPRING WASHER SPRING WASHER | 8 | |
| 11 | 13449821 | STUD STUD | 2 | |
| 12 | 4927783 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 13 | 8100667 | CLIP CLIP | 2 | |
| 14 | 4935496 | PIPE SOCKET PIPE SOCKET | 2 | |
| 15 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 | |
| 16 | 4933603 | OIL HOSE OIL HOSE | 1 | |
| 17 | 8100724 | HOSE HOSE | 1 | |
| 18 | 4568427 | RUBBER PAD RUBBER PAD | 6 | |
| 19 | 8113718 | SUPPORT SUPPORT | 1 | |
| 20 | 15970421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 21 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 22 | 12164711 | HEXAGON NUT HEXAGON NUT | 2 |
