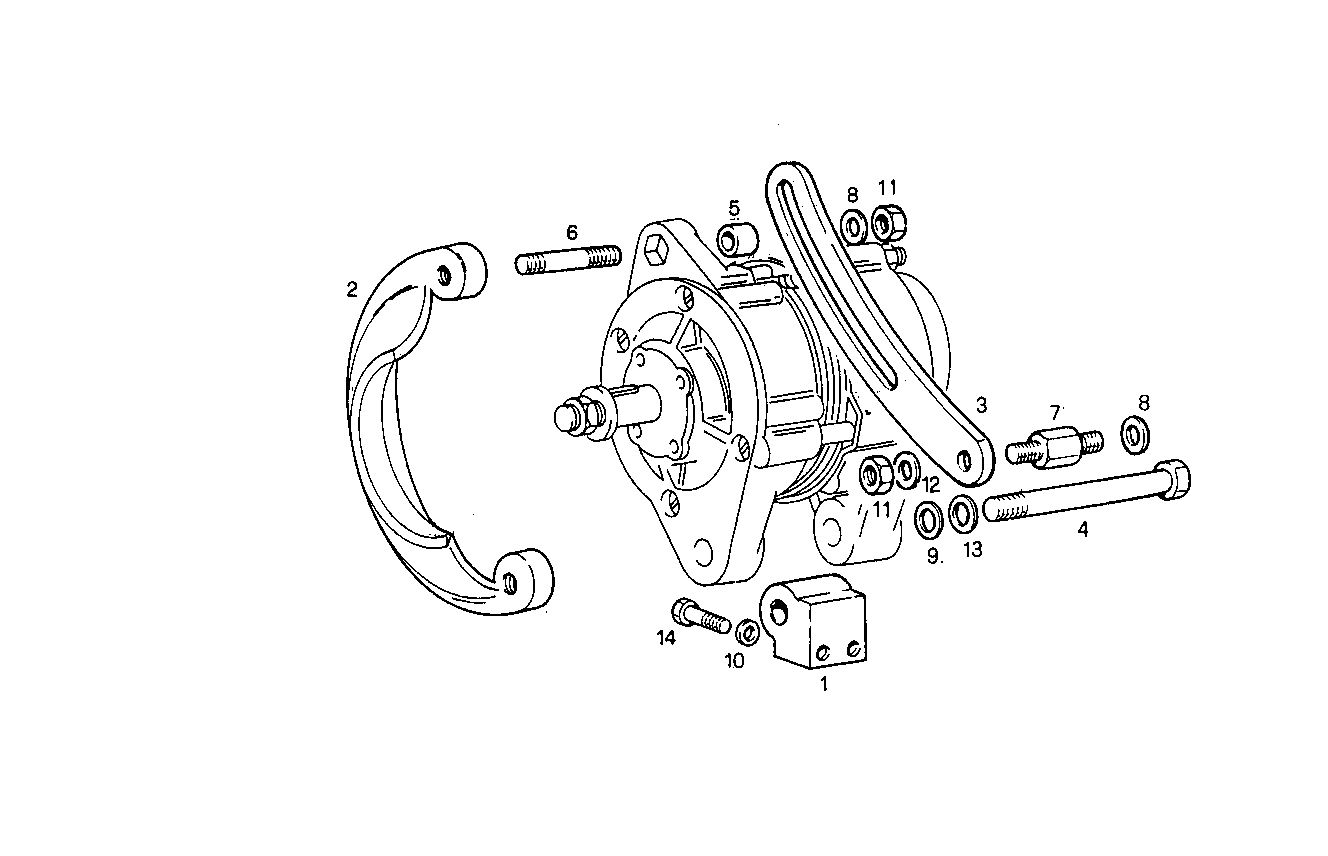

MOUNT
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4600128 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 4618825 | PROTECTION PROTECTION | 1 | |
| 3 | 4626125 | RETAINER RETAINER | 1 | |
| 4 | 4636776 | SCREW SCREW | 1 | |
| 5 | 7302882 | SPACING BAR SPACING BAR | 1 | |
| 6 | 8111079 | STUD STUD | 1 | |
| 7 | 8110545 | STUD STUD | 1 | |
| 8 | 11193879 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 17091174 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 11198379 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 12 | 12646801 | WASHER WASHER | 1 | |
| 13 | 12646901 | WASHER WASHER | 1 | |
| 14 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 2 |
