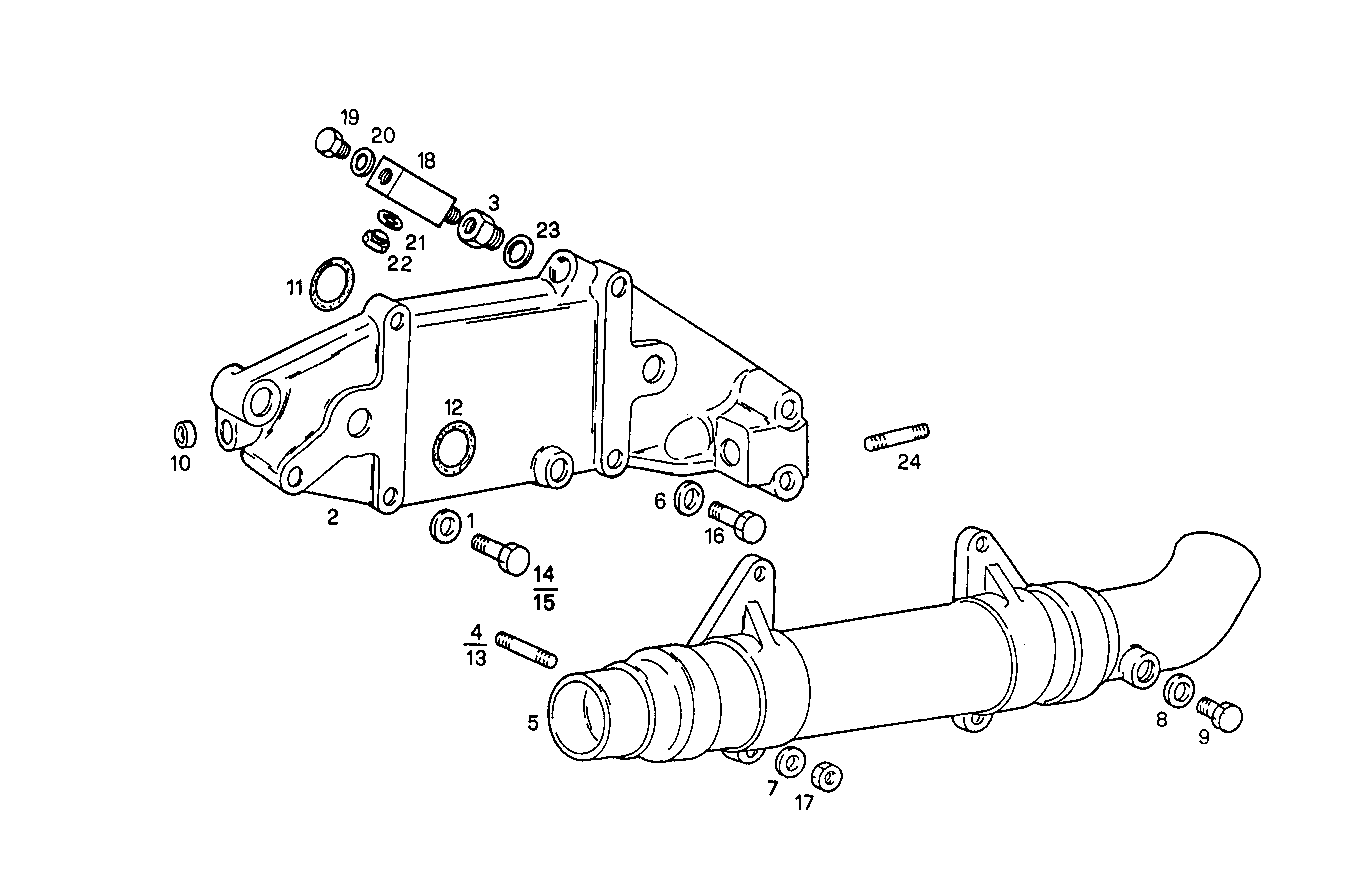

OIL - WATER HEAT EXCHANGER
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17095304 | WASHER WASHER | 3 | |
| 2 | 4801571 | SUPPORT SUPPORT | 1 | |
| 3 | 4820056 | THREADED UNION THREADED UNION | 1 | |
| 4 | 13517321 | STUD STUD | 1 | |
| 5 | 8109801 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 6 | 11198379 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 11194079 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 11903040 | LOCK PLUG LOCK PLUG | 1 | |
| 10 | 14328501 | LOCK PLUG LOCK PLUG | 1 | |
| 11 | 17281981 | O-RING O-RING | 2 | |
| 12 | 14457581 | O-RING O-RING | 2 | |
| 13 | 13516821 | STUD STUD | 3 | |
| 14 | 16610524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 16610924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 18 | 4929576 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 20 | 10296160 | SEAL GASKET SEAL GASKET | 1 | |
| 21 | 4858606 | GASKET GASKET | 2 | |
| 22 | 16992111 | THREADED PLUG THREADED PLUG | 2 | |
| 23 | 4858605 | WASHER WASHER | 1 | |
| 24 | 11798321 | STUD STUD | 1 |
