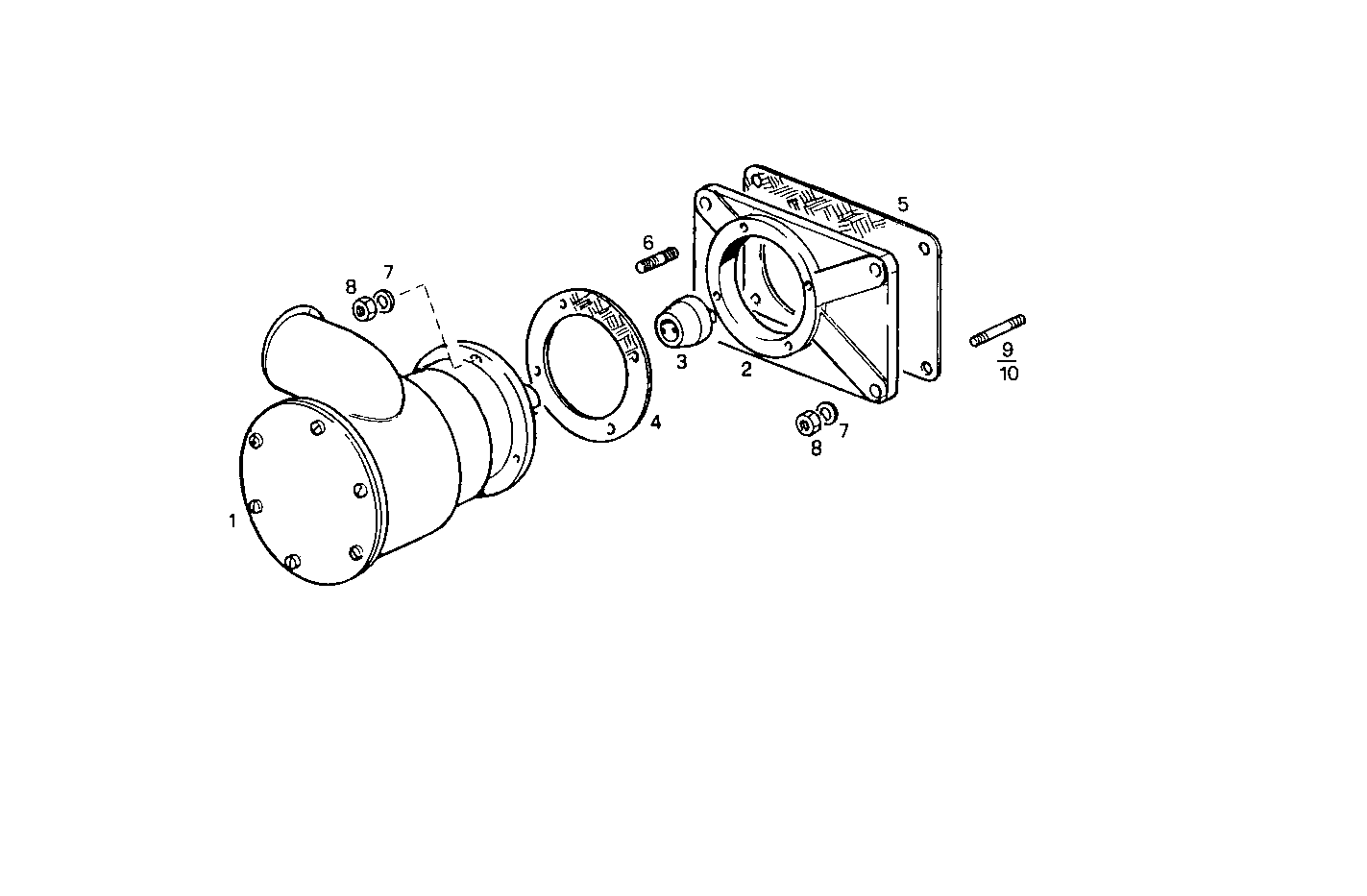

SEA WATER PUMP
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107293 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 2 | 8108600 | SUPPORT SUPPORT | 1 | |
| 3 | 4919289 | COUPLER COUPLER | 1 | |
| 4 | 8008922 | GASKET GASKET | 1 | |
| 5 | 4850986 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 11500221 | STUD STUD | 4 | |
| 7 | 11197779 | SPRING WASHER SPRING WASHER | 8 | |
| 8 | 15896211 | HEXAGON NUT HEXAGON NUT | 8 | |
| 9 | 16745024 | STUD STUD | 3 | |
| 10 | 4615276 | STUD STUD | 1 |
