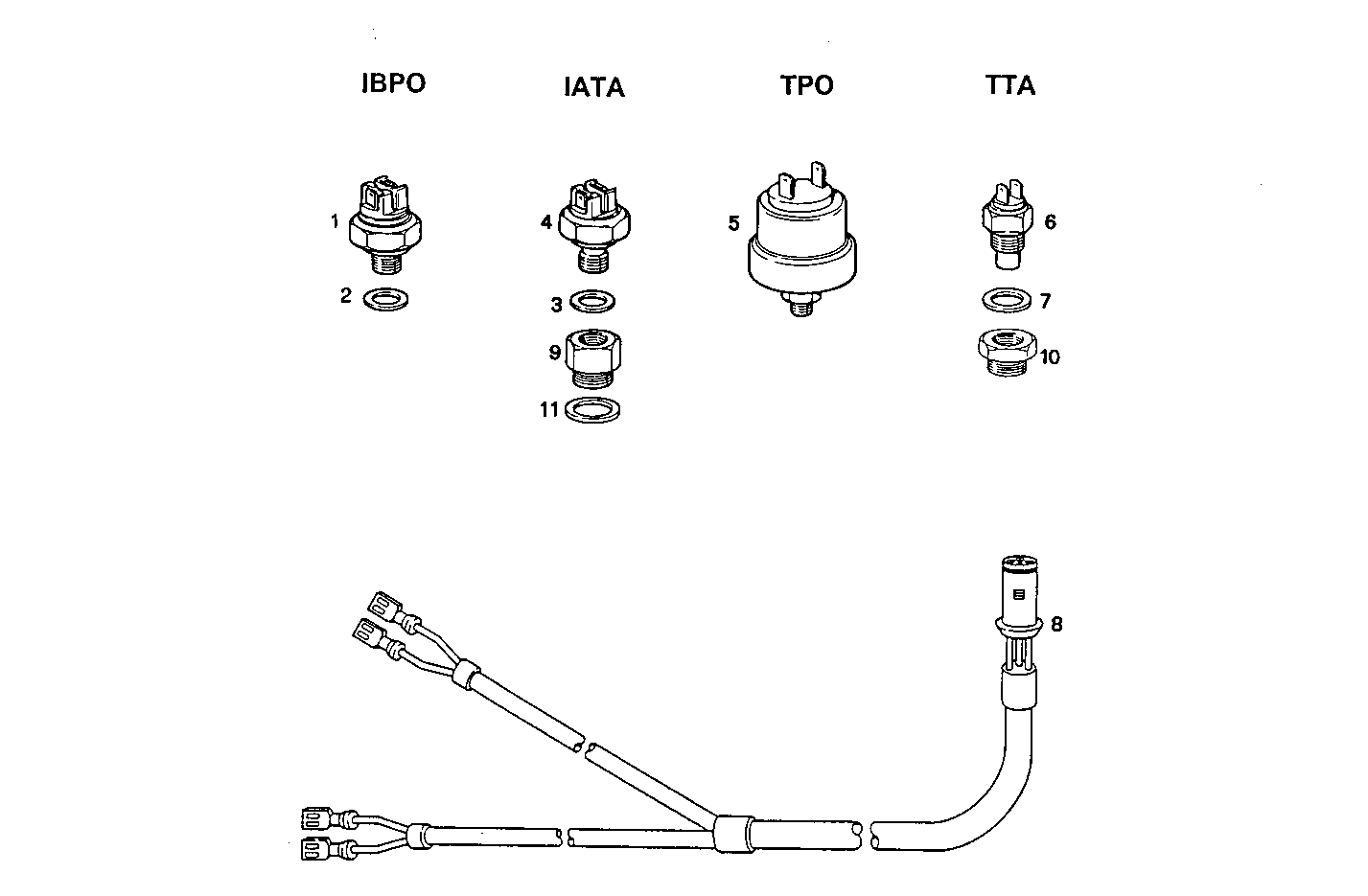

SENDER UNITS FOR INSTRUMENTS
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8114030 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 4858607 | WASHER WASHER | 1 | |
| 3 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 4 | 8019334 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 8008031 | TRANSMITTER TRANSMITTER | 2 | |
| 6 | 8008030 | TRANSMITTER TRANSMITTER | 2 | |
| 7 | 4858609 | WASHER WASHER | 3 | |
| 8 | 8108383 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 9 | 4928330 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 4919578 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 10279560 | SEAL GASKET SEAL GASKET | 2 |
