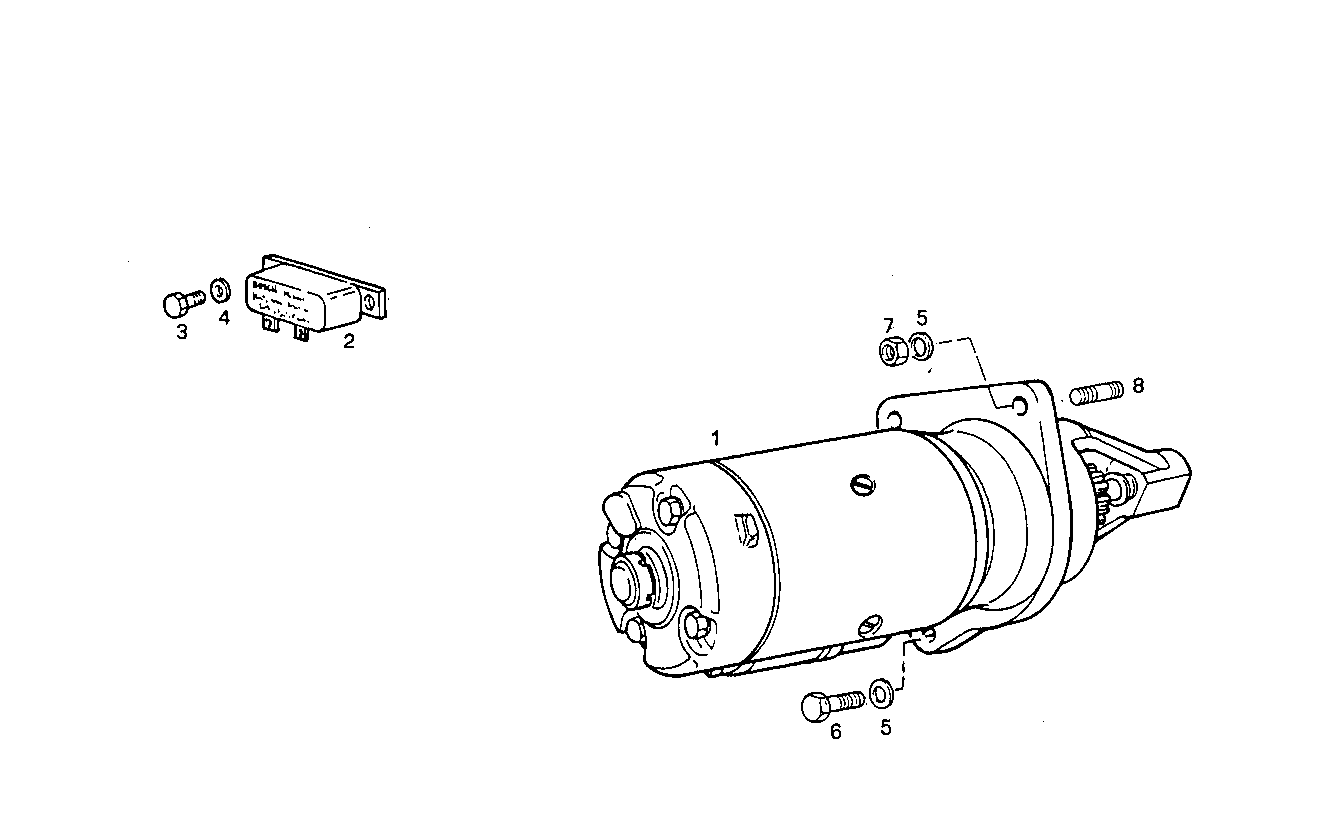

STARTER MOTOR
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4728682 | STARTER MOTOR STARTER MOTOR | 1 | |
| 2 | 8108574 | RELAY RELAY | 1 | |
| 3 | 10902021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 11197779 | SPRING WASHER SPRING WASHER | 2 | |
| 5 | 11198379 | SPRING WASHER SPRING WASHER | 3 | |
| 6 | 11306921 | SCREW SCREW | 1 | |
| 7 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 13449521 | STUD STUD | 2 |
