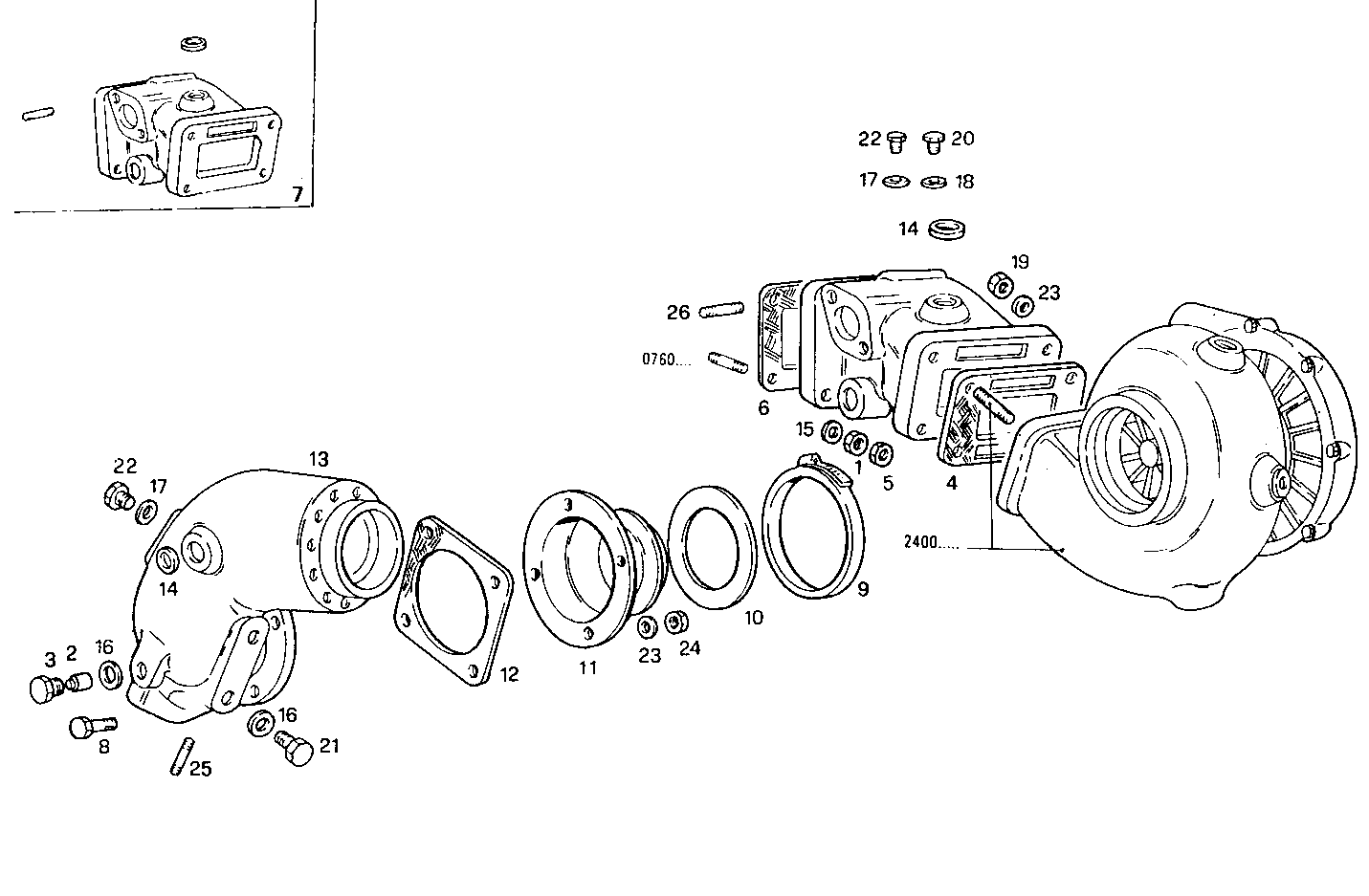

SUPERCHARGING LINES
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927248 | NUT NUT | 4 | |
| 2 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 3 | 4917793 | PLUG PLUG | 1 | |
| 4 | 8008740 | GASKET GASKET | 1 | |
| 5 | 8100961 | NUT NUT | 4 | |
| 6 | 8009603 | GASKET GASKET | 1 | |
| 7 | 8111017 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 8 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 8111053 | CLIP CLIP | 1 | |
| 10 | 8111070 | GASKET GASKET | 1 | |
| 11 | 8111050 | FLANGE FLANGE | 1 | |
| 12 | 8009599 | GASKET GASKET | 1 | |
| 13 | 8102479 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 14 | 16990870 | LOCK PLUG LOCK PLUG | 4 | |
| 15 | 16665604 | WASHER WASHER | 4 | |
| 16 | 4858610 | WASHER WASHER | 2 | |
| 17 | 4858607 | WASHER WASHER | 2 | |
| 18 | 4858609 | WASHER WASHER | 1 | |
| 19 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 20 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 21 | 16992540 | PLUG PLUG | 1 | |
| 22 | 16992240 | THREADED PLUG THREADED PLUG | 2 | |
| 23 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 24 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 25 | 16729424 | STUD STUD | 2 | |
| 26 | 16730024 | STUD STUD | 2 |
