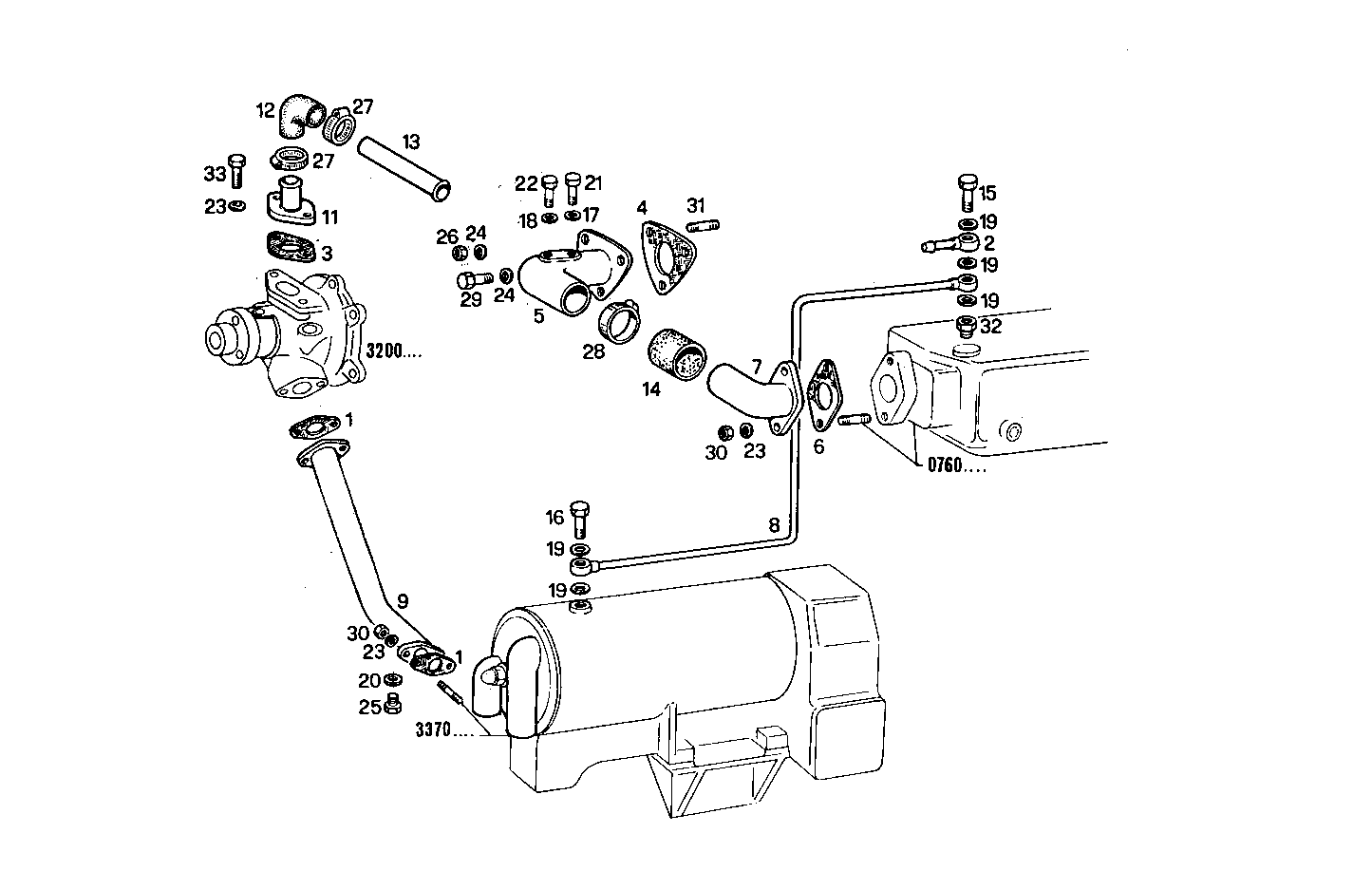

WATER LINES
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98418621 | GASKET GASKET | 2 | |
| 2 | 4636689 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 3 | 98417182 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4851926 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 4919685 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8009640 | GASKET GASKET | 1 | |
| 7 | 4919235 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8011348 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8110805 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8108080 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8108085 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 8113951 | WATER PIPE WATER PIPE | 1 | |
| 14 | 10136187 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 15 | 4927823 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 16 | 10181717 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 17 | 10278660 | SEAL GASKET SEAL GASKET | 1 | |
| 18 | 10263460 | WASHER WASHER | 2 | |
| 19 | 4858607 | WASHER WASHER | 5 | |
| 20 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 21 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 22 | 10305140 | LOCK PLUG LOCK PLUG | 1 | |
| 23 | 11194079 | SPRING WASHER SPRING WASHER | 8 | |
| 24 | 11198379 | SPRING WASHER SPRING WASHER | 3 | |
| 25 | 11903040 | LOCK PLUG LOCK PLUG | 1 | |
| 26 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 27 | 17764592 | CLIP CLIP | 2 | |
| 28 | 12177090 | CLIP CLIP | 4 | |
| 29 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 30 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 31 | 13449521 | STUD STUD | 1 | |
| 32 | 8113807 | PIPE SOCKET PIPE SOCKET | 1 | |
| 33 | 10902221 | HEXAGON BOLT HEXAGON BOLT | 2 |
