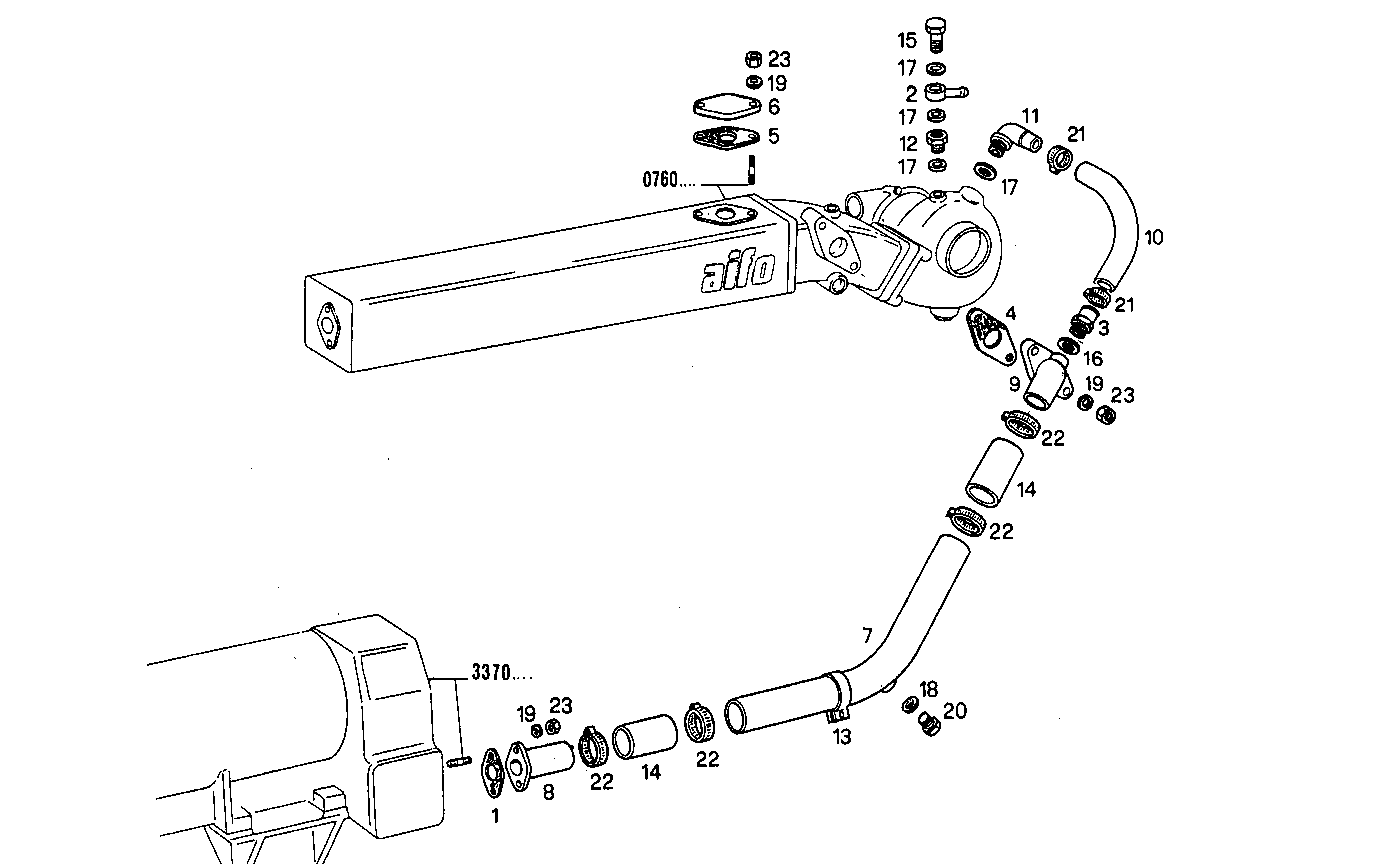

WATER LINES
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98418621 | GASKET GASKET | 1 | |
| 2 | 4636689 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 3 | 4633506 | THREADED UNION THREADED UNION | 1 | |
| 4 | 4745724 | GASKET GASKET | 1 | |
| 5 | 8009640 | GASKET GASKET | 1 | |
| 6 | 8100154 | COVER COVER | 1 | |
| 7 | 8111057 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8100081 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8111058 | WATER PIPE WATER PIPE | 1 | |
| 10 | 8112680 | WATER HOSE WATER HOSE | 1 | |
| 11 | 4527314 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8111062 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 4936741 | CLIP CLIP | 1 | |
| 14 | 10136187 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 15 | 4927823 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 16 | 10279560 | SEAL GASKET SEAL GASKET | 1 | |
| 17 | 4858607 | WASHER WASHER | 4 | |
| 18 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 19 | 11194071 | WASHER WASHER | 6 | |
| 20 | 11903040 | LOCK PLUG LOCK PLUG | 1 | |
| 21 | 17764592 | CLIP CLIP | 2 | |
| 22 | 12177090 | CLIP CLIP | 4 | |
| 23 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 |
