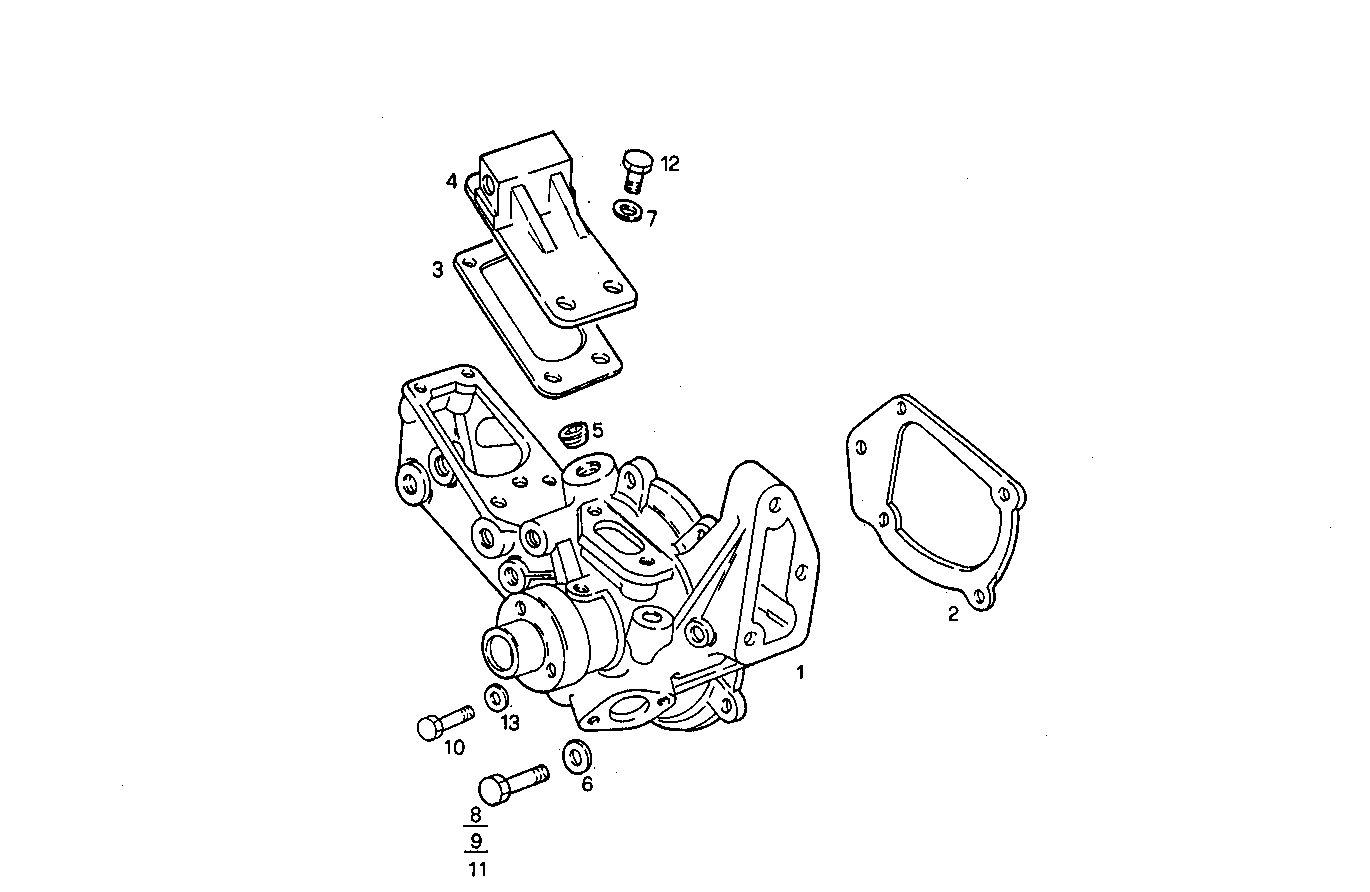

WATER PUMP
8041SRM15.10 — 8041SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4813730 | WATER PUMP WATER PUMP | 1 | |
| 2 | 98400779 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 98400783 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4936774 | COVER COVER | 1 | |
| 5 | 10269601 | THREADED PLUG THREADED PLUG | 3 | |
| 6 | 11190579 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 11194079 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 15971321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 15971421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 15971621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 16043521 | SCREW SCREW | 4 | |
| 13 | 11198371 | SPRING WASHER SPRING WASHER | 1 |
