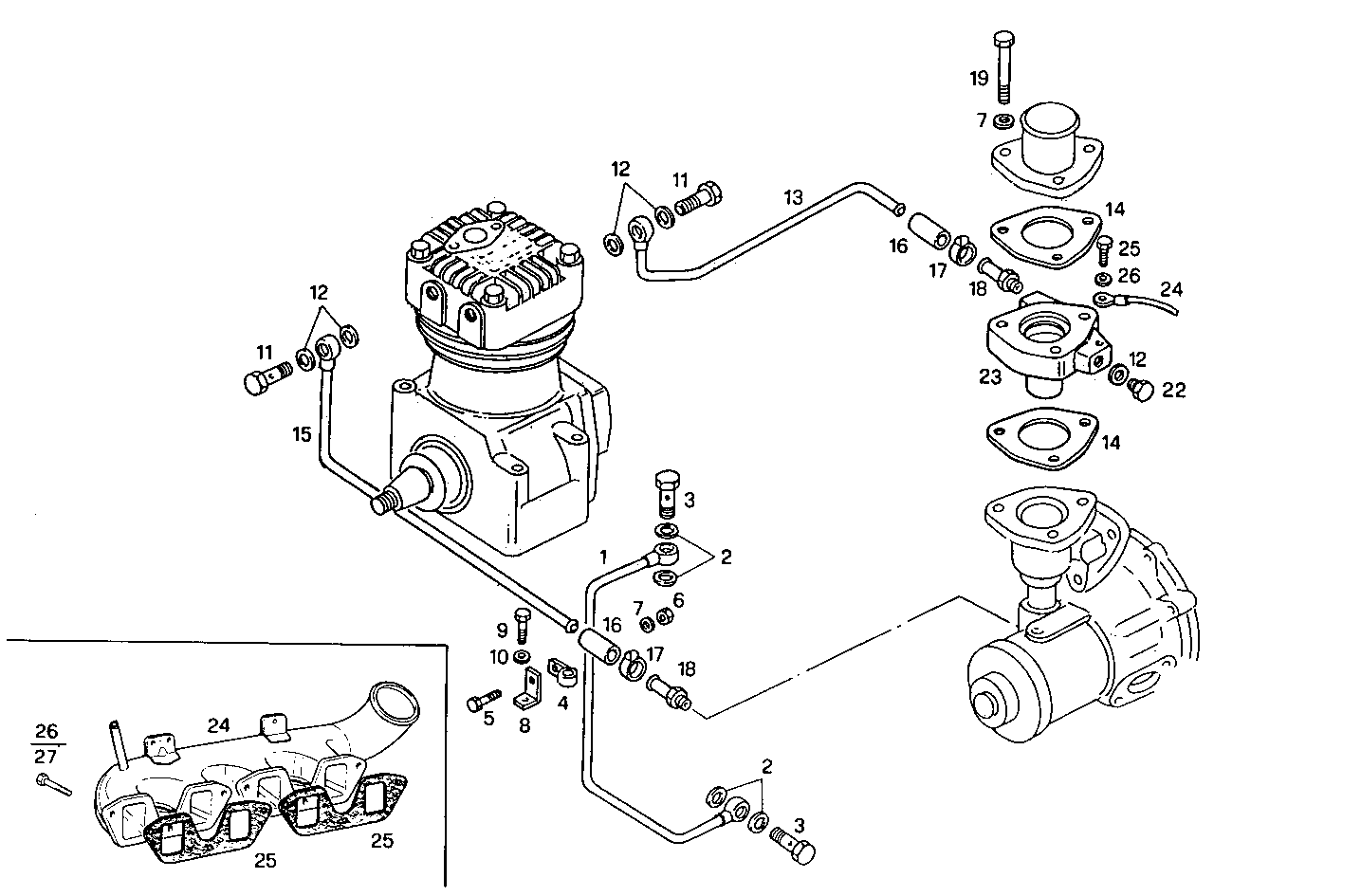

AIR COMPRESSOR
8045E00.00 — 8045E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010642 | OIL LINE OIL LINE | 1 | |
| 2 | 4858606 | GASKET GASKET | 2 | |
| 3 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 4 | 17316190 | PIPE CLIP PIPE CLIP | 1 | |
| 5 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 4933030 | RETAINER RETAINER | 1 | |
| 9 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 4864084 | BANJO BOLT BANJO BOLT | 2 | |
| 12 | 4858609 | WASHER WASHER | 5 | |
| 13 | 8010640 | WATER PIPE WATER PIPE | 1 | |
| 14 | 98417863 | GASKET GASKET | 2 | |
| 15 | 8010641 | OIL LINE OIL LINE | 1 | |
| 16 | 98425477 | WATER HOSE WATER HOSE | 2 | |
| 17 | 17764491 | CLIP CLIP | 4 | |
| 18 | 4616630 | THREADED UNION THREADED UNION | 2 | |
| 19 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 21 | 8961599 | WIRE/CABLE WIRE/CABLE | 1 | |
| 22 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 23 | 8007765 | SPACING BAR SPACING BAR | 1 | |
| 24 | 8009196 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 25 | 4851921 | INTAKE ELBOW GASK. INTAKE ELBOW GASK. | 2 | |
| 26 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 27 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 28 | 16603424 | SCREW SCREW | 1 | |
| 29 | 17088474 | WASHER WASHER | 1 |
