SELF-REGULATED ALTERNATOR
8045E00.00 — 8045E00

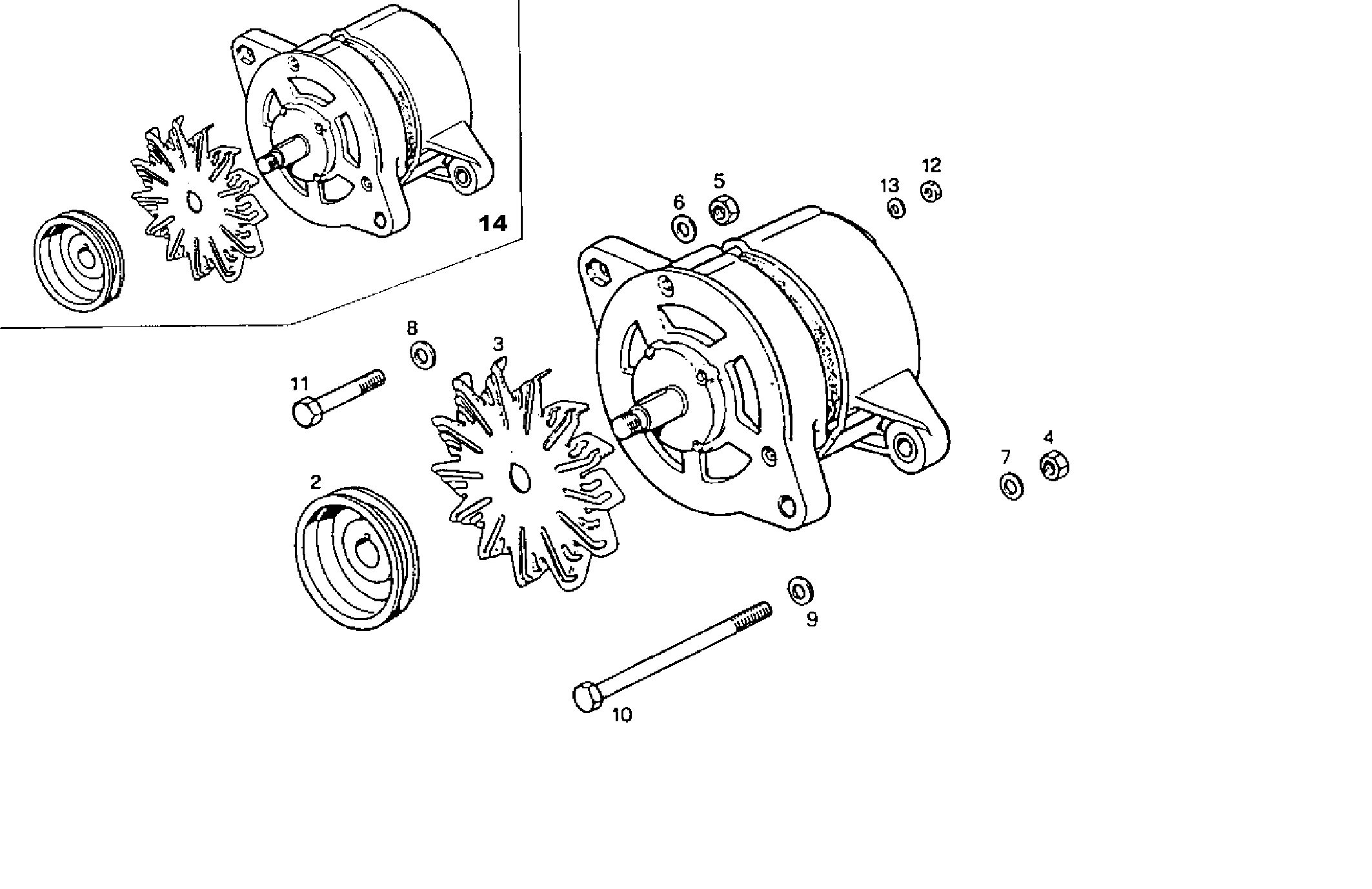

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4808519 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 4808603 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 3 | 4717026 | GENERATOR FAN GENERATOR FAN | 1 | |
| 4 | 17038621 | NUT NUT | 1 | |
| 5 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 17091074 | WASHER WASHER | 1 | |
| 8 | 17095104 | WASHER WASHER | 1 | |
| 9 | 17095304 | WASHER WASHER | 1 | |
| 10 | 15541821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 17088474 | WASHER WASHER | 1 | |
| 14 | 4808523 | ALTERNATOR ALTERNATOR | 1 |
