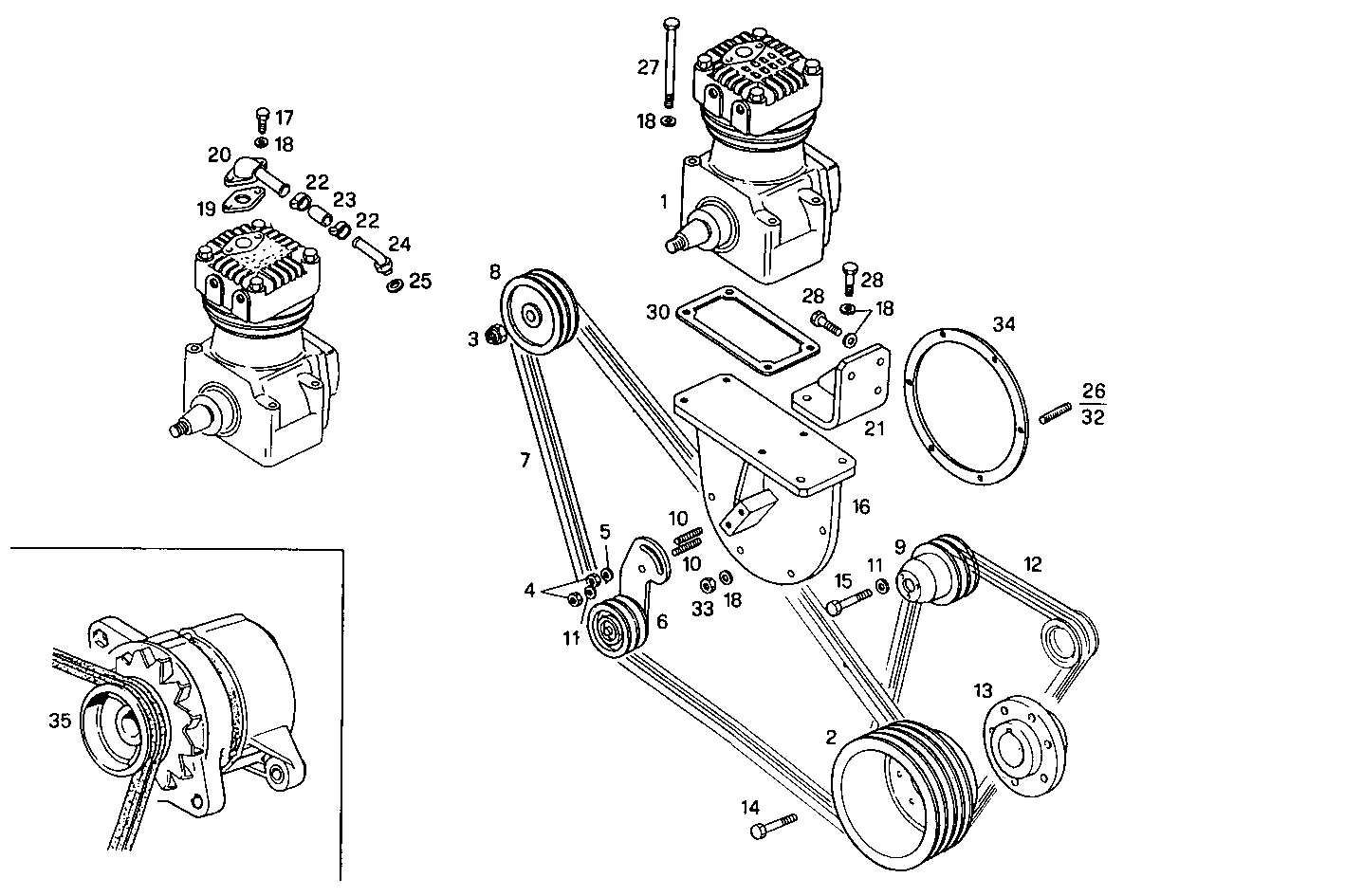

AIR COMPRESSOR
8045E00.50 — 8045E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99440231 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 8104951 | PULLEY PULLEY | 1 | |
| 3 | 17779421 | NUT NUT | 1 | |
| 4 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 5 | 4513436 | SUPPORT RING SUPPORT RING | 1 | |
| 6 | 4803462 | BELT TENSIONER BELT TENSIONER | 1 | |
| 7 | 4863028 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 8 | 8007719 | PULLEY PULLEY | 1 | |
| 9 | 8009572 | PULLEY PULLEY | 1 | |
| 10 | 13449521 | STUD STUD | 2 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 10 | |
| 12 | 98473886 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 13 | 4655847 | HUB HUB | 1 | |
| 14 | 11288024 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 16 | 8007638 | PLATE PLATE | 1 | |
| 17 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 19 | 98418772 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 20 | 8104980 | OIL LINE OIL LINE | 1 | |
| 21 | 8007639 | RETAINER RETAINER | 1 | |
| 22 | 17764592 | CLIP CLIP | 2 | |
| 23 | 4930352 | WATER HOSE WATER HOSE | 1 | |
| 24 | 4555394 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 25 | 98429281 | SEAL GASKET SEAL GASKET | 1 | |
| 26 | 16747424 | STUD STUD | 8 | |
| 27 | 16606724 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 28 | 15970621 | SCREW SCREW | 5 | |
| 29 | 98400781 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 30 | 98400783 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 32 | 16729524 | STUD STUD | 2 | |
| 33 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 35 | 4808607 | PULLEY PULLEY | 1 |
