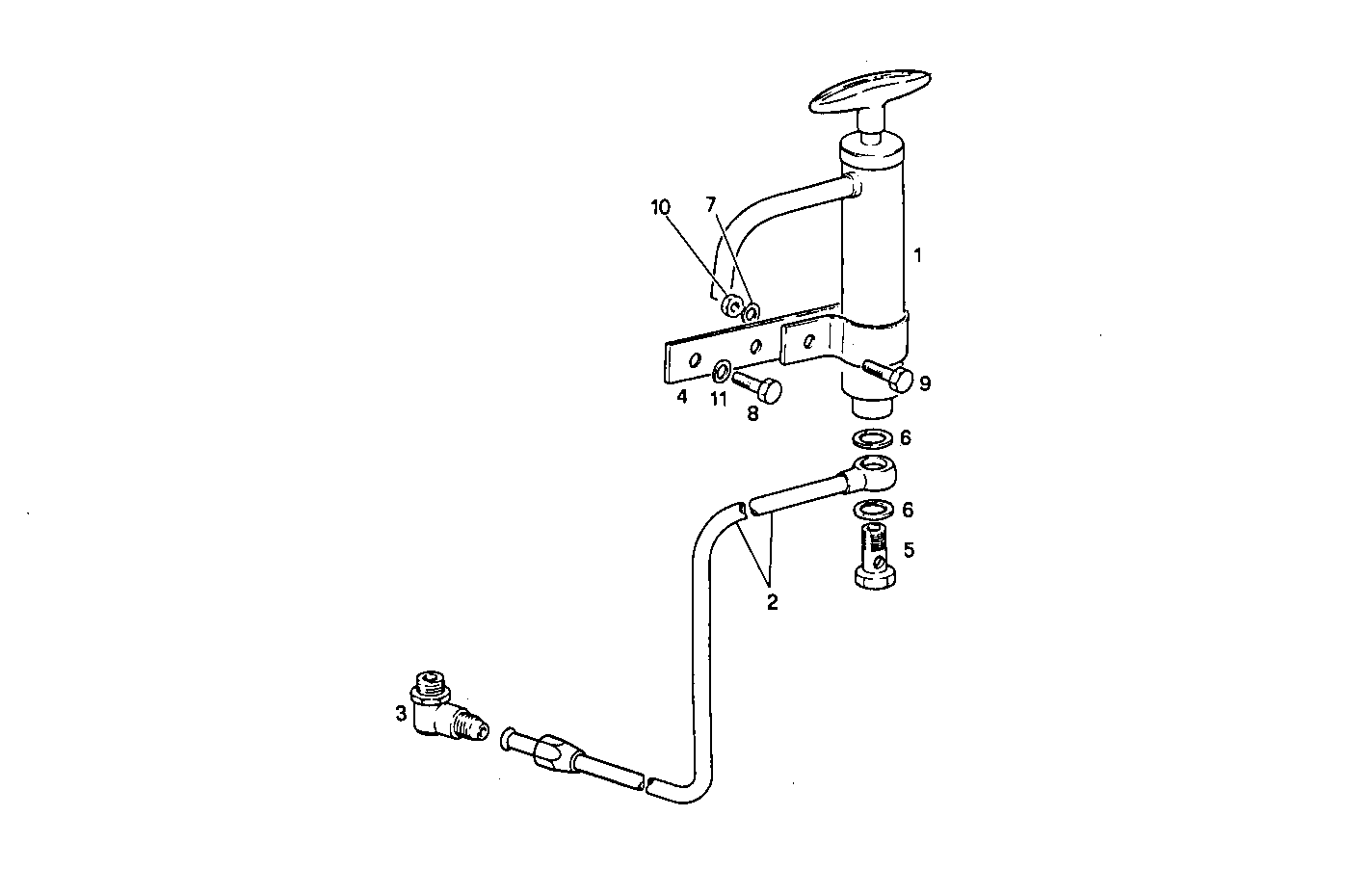

OIL DRAIN PUMP
8045E00.50 — 8045E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 2 | 8009249 | OIL LINE OIL LINE | 1 | |
| 3 | 4928527 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 4919581 | CLIP CLIP | 1 | |
| 5 | 4864084 | BANJO BOLT BANJO BOLT | 1 | |
| 6 | 4858609 | WASHER WASHER | 2 | |
| 7 | 17089471 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 15970421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 17090474 | SPRING WASHER SPRING WASHER | 2 |
