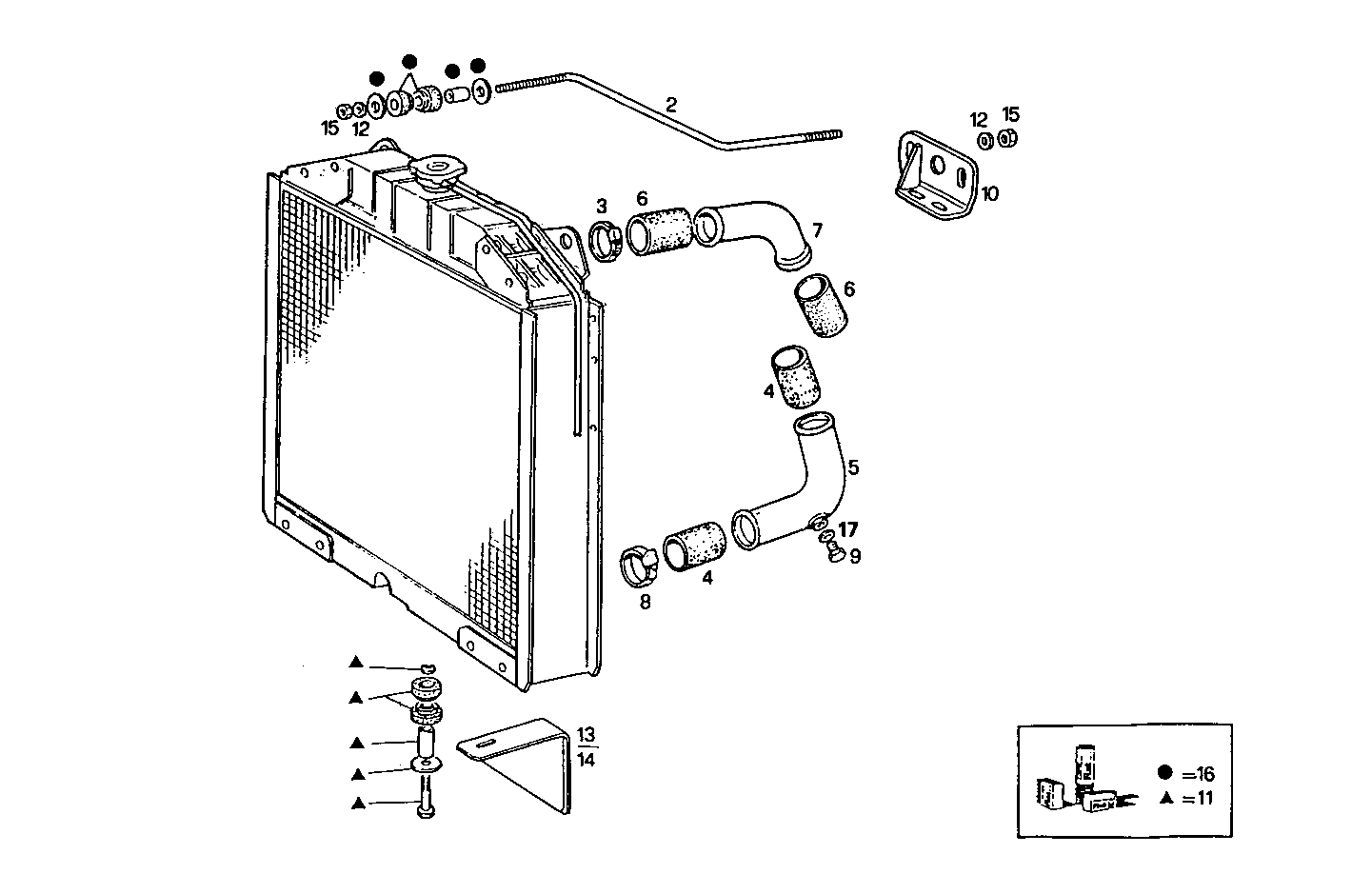

RADIATOR FOR SETTING TILL MAX POWER
8045E00.50 — 8045E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008817 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8025471 | TIE ROD TIE ROD | 2 | |
| 3 | 17764891 | CLIP CLIP | 4 | |
| 4 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 5 | 8009199 | WATER PIPE WATER PIPE | 1 | |
| 6 | 4787630 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 7 | 8009198 | WATER PIPE WATER PIPE | 1 | |
| 8 | 17764791 | CLIP CLIP | 4 | |
| 9 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 8023950 | SUPPORT SUPPORT | 1 | |
| 11 | 8090341 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 12 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 8009201 | SUPPORT SUPPORT | 1 | |
| 14 | 8009200 | SUPPORT SUPPORT | 1 | |
| 15 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 16 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 17 | 4858606 | GASKET GASKET | 1 |
