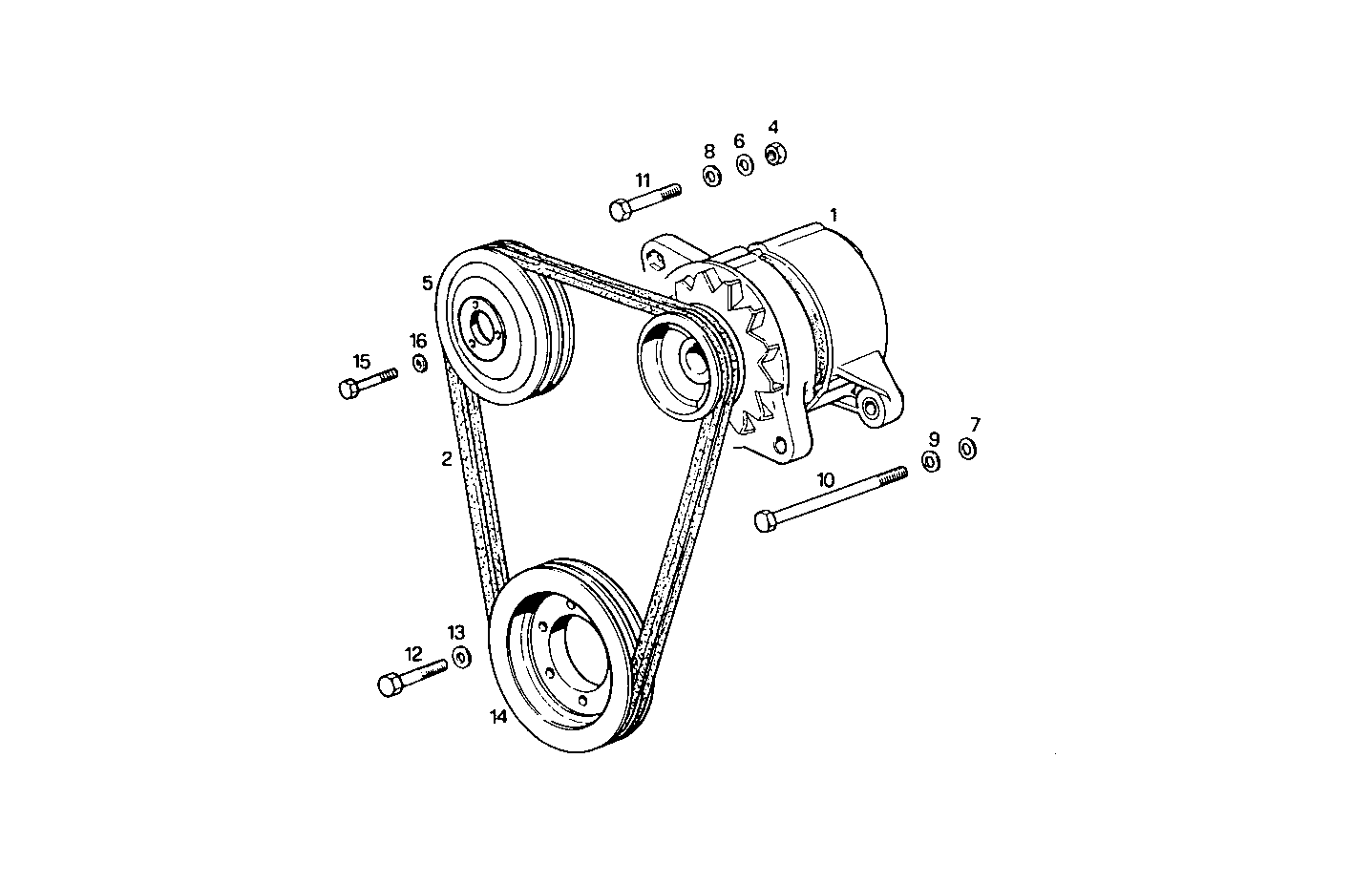

SELF-REGULATED ALTERNATOR
8045E00.50 — 8045E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019416 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 98473886 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 4 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 5 | 4619286 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 17091074 | WASHER WASHER | 1 | |
| 8 | 17095104 | WASHER WASHER | 1 | |
| 9 | 17095304 | WASHER WASHER | 1 | |
| 10 | 15541921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 13 | 11190574 | WASHER WASHER | 3 | |
| 14 | 4668646 | PULLEY PULLEY | 1 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 16 | 11193874 | WASHER WASHER | 3 |
