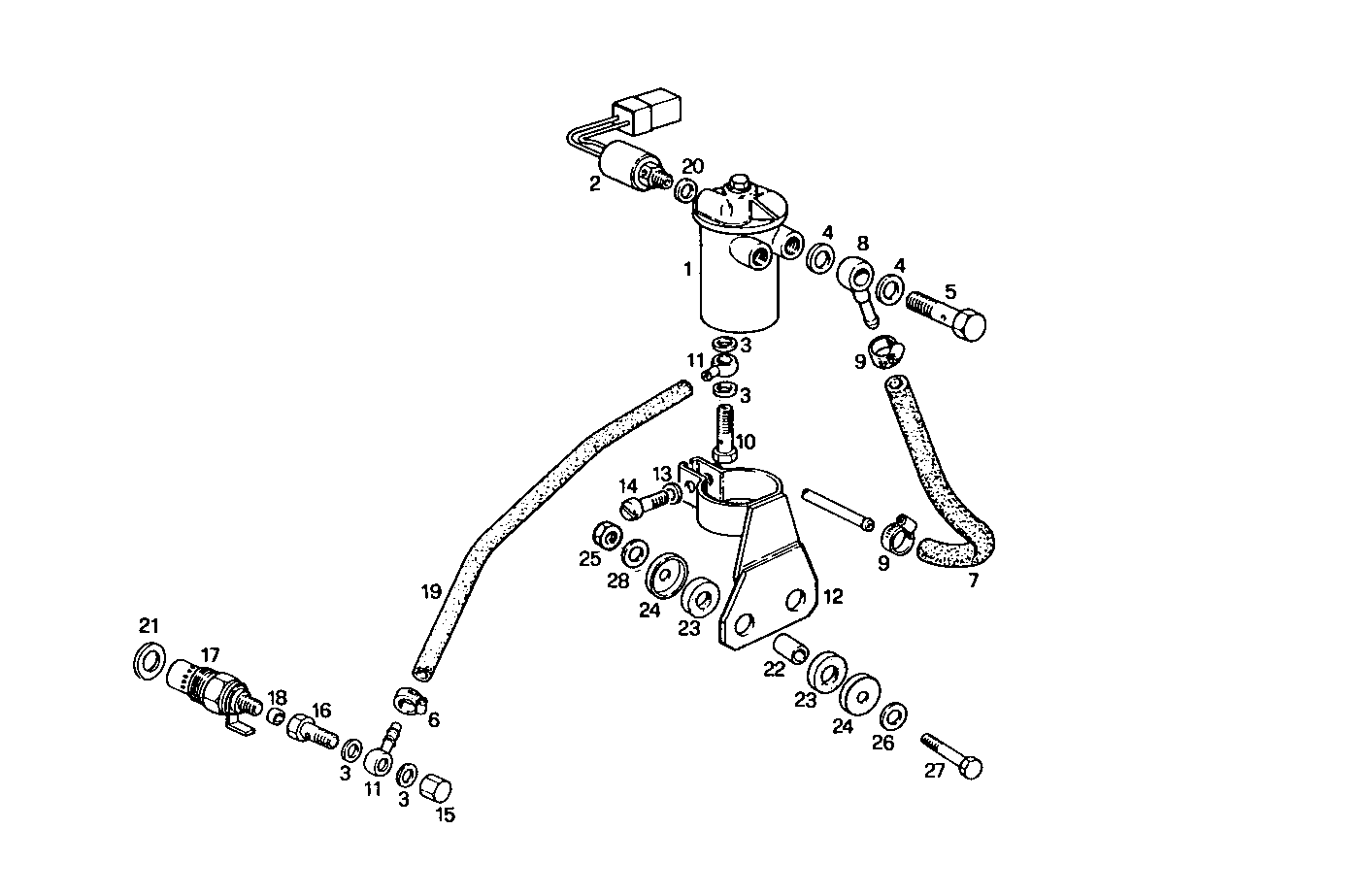

THERMO-STARTER
8045E00.59A001 — 8045E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4815431 | TANK FOR PREHEATER TANK FOR PREHEATER | 1 | |
| 2 | 8007323 | ELECTROVALVE ELECTROVALVE | 1 | |
| 3 | 4858605 | WASHER WASHER | 4 | |
| 4 | 4858607 | WASHER WASHER | 4 | |
| 5 | 4864082 | BANJO BOLT BANJO BOLT | 2 | |
| 6 | 18088092 | CLIP CLIP | 2 | |
| 7 | 17724387 | HOSE HOSE | 1 | |
| 8 | 98416591 | SWIVEL COUPLING SWIVEL COUPLING | 2 | |
| 9 | 18088192 | CLIP CLIP | 2 | |
| 10 | 4864078 | BANJO BOLT BANJO BOLT | 1 | |
| 11 | 4551099 | SWIVEL COUPLING SWIVEL COUPLING | 2 | |
| 12 | 4732530 | SUPPORT SUPPORT | 1 | |
| 13 | 17798074 | WASHER WASHER | 1 | |
| 14 | 10389911 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 15 | 11902011 | PLUG PLUG | 1 | |
| 16 | 4551101 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 17 | 8018732 | HEATER PLUG HEATER PLUG | 1 | |
| 18 | 4557649 | WASHER WASHER | 2 | |
| 19 | 17724587 | RUBBER HOSE RUBBER HOSE | 1 | |
| 20 | 16550660 | WASHER WASHER | 1 | |
| 21 | 4557649 | WASHER WASHER | 1 | |
| 22 | 4617262 | SPACING BAR SPACING BAR | 2 | |
| 23 | 4023905 | DOWEL DOWEL | 4 | |
| 24 | 4023904 | CAP CAP | 4 | |
| 25 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 26 | 17094914 | WASHER WASHER | 2 | |
| 27 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 28 | 17089471 | SPRING WASHER SPRING WASHER | 2 |
