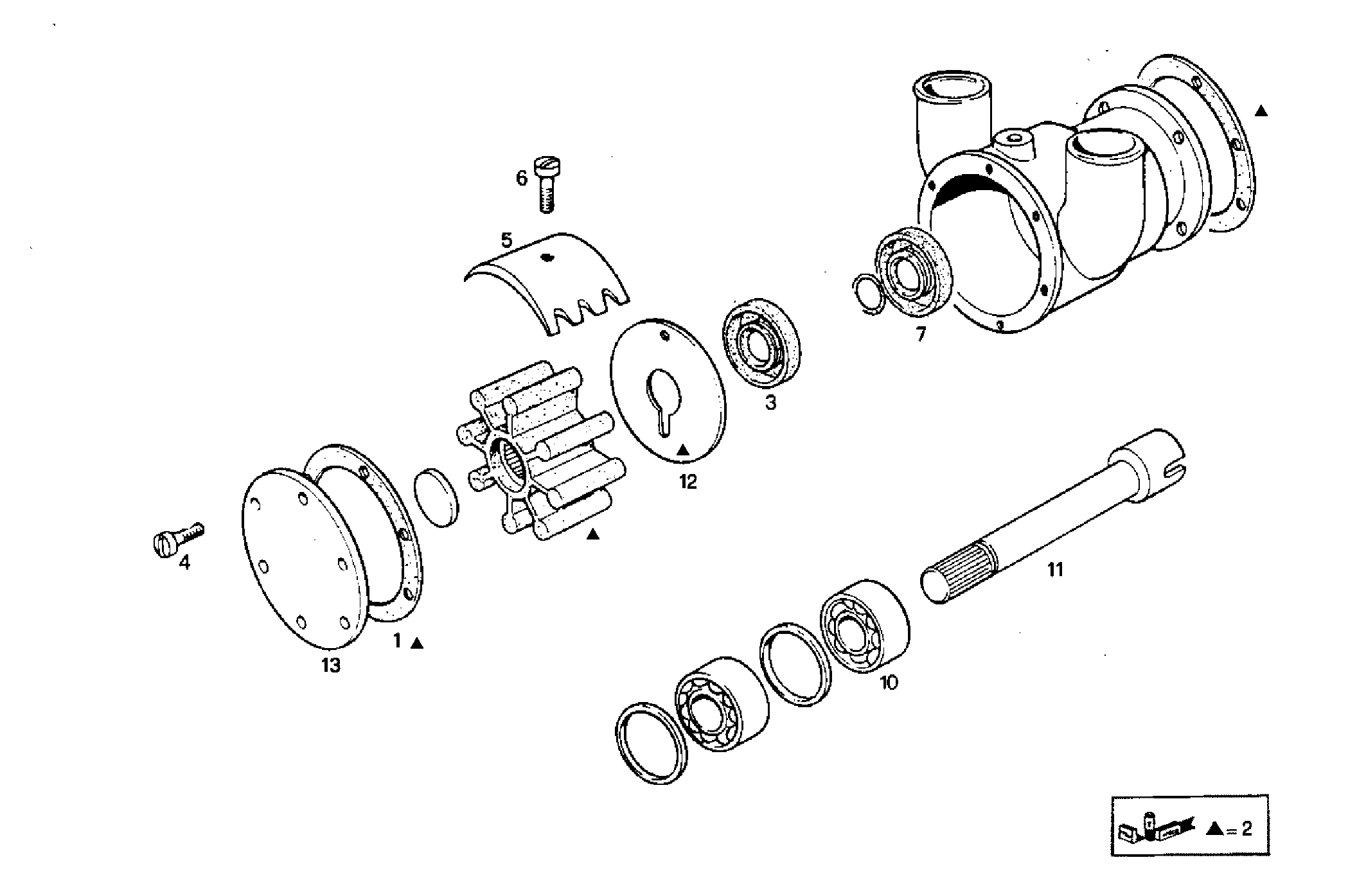

SEA WATER PUMP
8045M08.00A550 — 8045M08
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108230 | GASKET GASKET | 1 | |
| 2 | 8094659 | SEA-WATER PUMP IMPELL.KIT SEA-WATER PUMP IMPELL.KIT | 1 | |
| 3 | 8093752 | WASHER WASHER | 1 | |
| 4 | 4914930 | SCREW SCREW | 6 | |
| 5 | 8108233 | RETAINING CAM RETAINING CAM | 1 | |
| 6 | 4914931 | SCREW SCREW | 1 | |
| 7 | 8093752 | WASHER WASHER | 1 | |
| 10 | 8108240 | DRIVE BEARING DRIVE BEARING | 1 | |
| 11 | 8093753 | SHAFT SHAFT | 1 | |
| 12 | 8108235 | WASHER WASHER | 1 | |
| 13 | 4914923 | COVER COVER | 1 |
