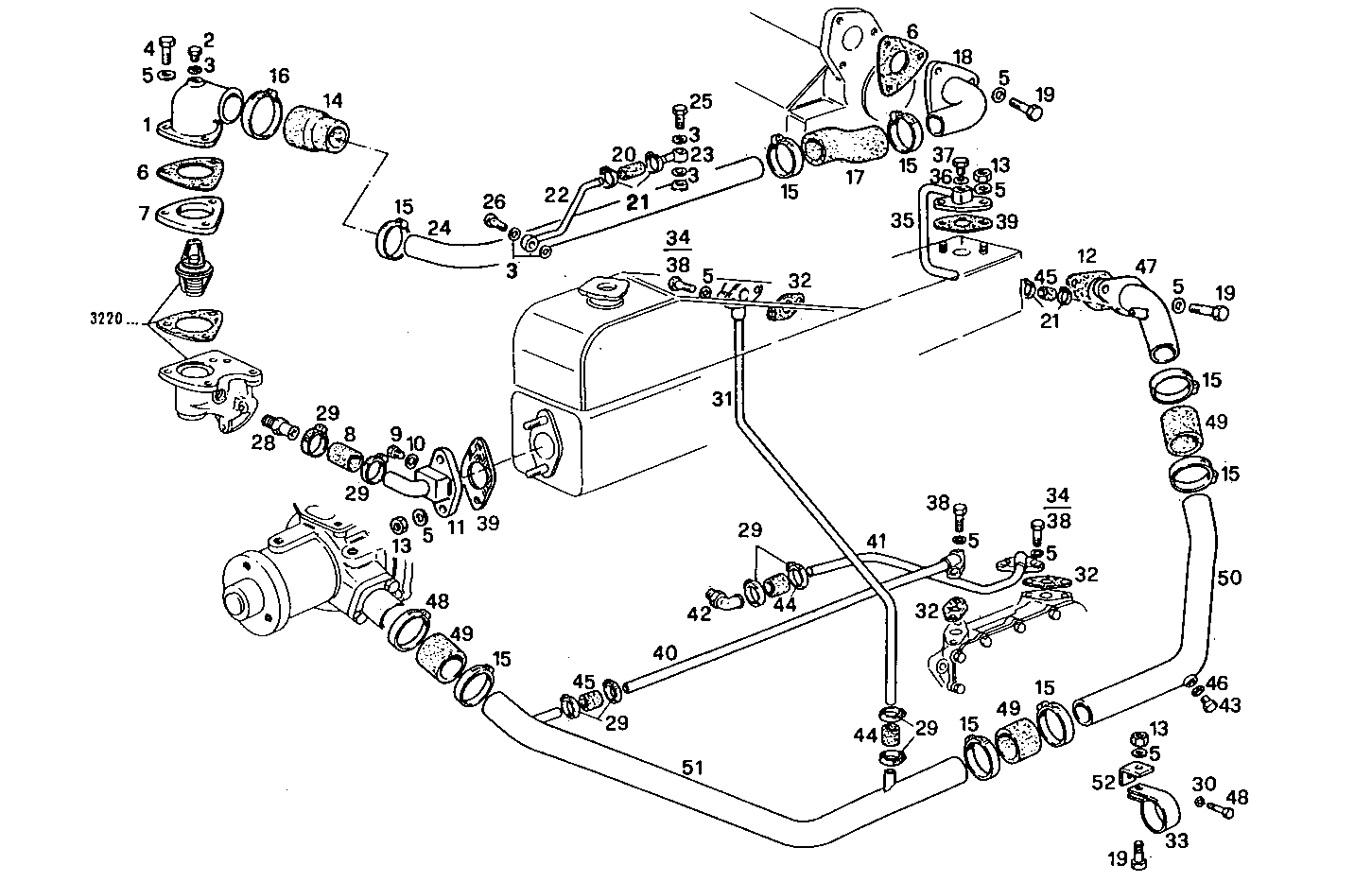

WATER LINES
8045M08.00A550 — 8045M08
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107202 | WATER PIPE WATER PIPE | 1 | |
| 2 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 3 | 4858607 | WASHER WASHER | 5 | |
| 4 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 19 | |
| 6 | 98420754 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 7 | 8107226 | SPACING BAR SPACING BAR | 1 | |
| 8 | 98418717 | WATER HOSE WATER HOSE | 1 | |
| 9 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 8107731 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8009640 | GASKET GASKET | 1 | |
| 13 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 14 | 98447313 | WATER HOSE WATER HOSE | 1 | |
| 15 | 17764793 | CLIP CLIP | 9 | |
| 16 | 17764893 | CLIP CLIP | 1 | |
| 17 | 4927830 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 18 | 8107720 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 20 | 4927825 | WATER HOSE WATER HOSE | 1 | |
| 21 | 18088392 | CLIP CLIP | 4 | |
| 22 | 8011350 | WATER PIPE WATER PIPE | 1 | |
| 23 | 4722869 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 24 | 8111183 | WATER PIPE WATER PIPE | 1 | |
| 25 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 26 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 28 | 4760312 | THREADED UNION THREADED UNION | 1 | |
| 29 | 17764593 | CLIP CLIP | 8 | |
| 30 | 17091074 | WASHER WASHER | 1 | |
| 31 | 8006085 | WATER PIPE WATER PIPE | 1 | |
| 32 | 4853970 | FLAT ENGINE GKT FLAT ENGINE GKT | 3 | |
| 33 | 4936741 | CLIP CLIP | 1 | |
| 34 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 35 | 8107733 | WATER PIPE WATER PIPE | 1 | |
| 36 | 4858609 | WASHER WASHER | 1 | |
| 37 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 38 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 39 | 4918835 | GASKET GASKET | 2 | |
| 40 | 4788181 | WATER PIPE WATER PIPE | 1 | |
| 41 | 4760316 | WATER PIPE WATER PIPE | 1 | |
| 42 | 98418647 | PIPE SOCKET PIPE SOCKET | 1 | |
| 43 | 16992140 | PLUG PLUG | 2 | |
| 44 | 17737687 | WATER HOSE WATER HOSE | 2 | |
| 45 | 98425606 | WATER HOSE WATER HOSE | 2 | |
| 46 | 4858606 | GASKET GASKET | 2 | |
| 47 | 8107434 | WATER PIPE WATER PIPE | 1 | |
| 48 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 49 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 3 | |
| 50 | 8006109 | WATER PIPE WATER PIPE | 1 | |
| 51 | 8006084 | WATER PIPE WATER PIPE | 1 | |
| 52 | 8108979 | RETAINER RETAINER | 1 |
