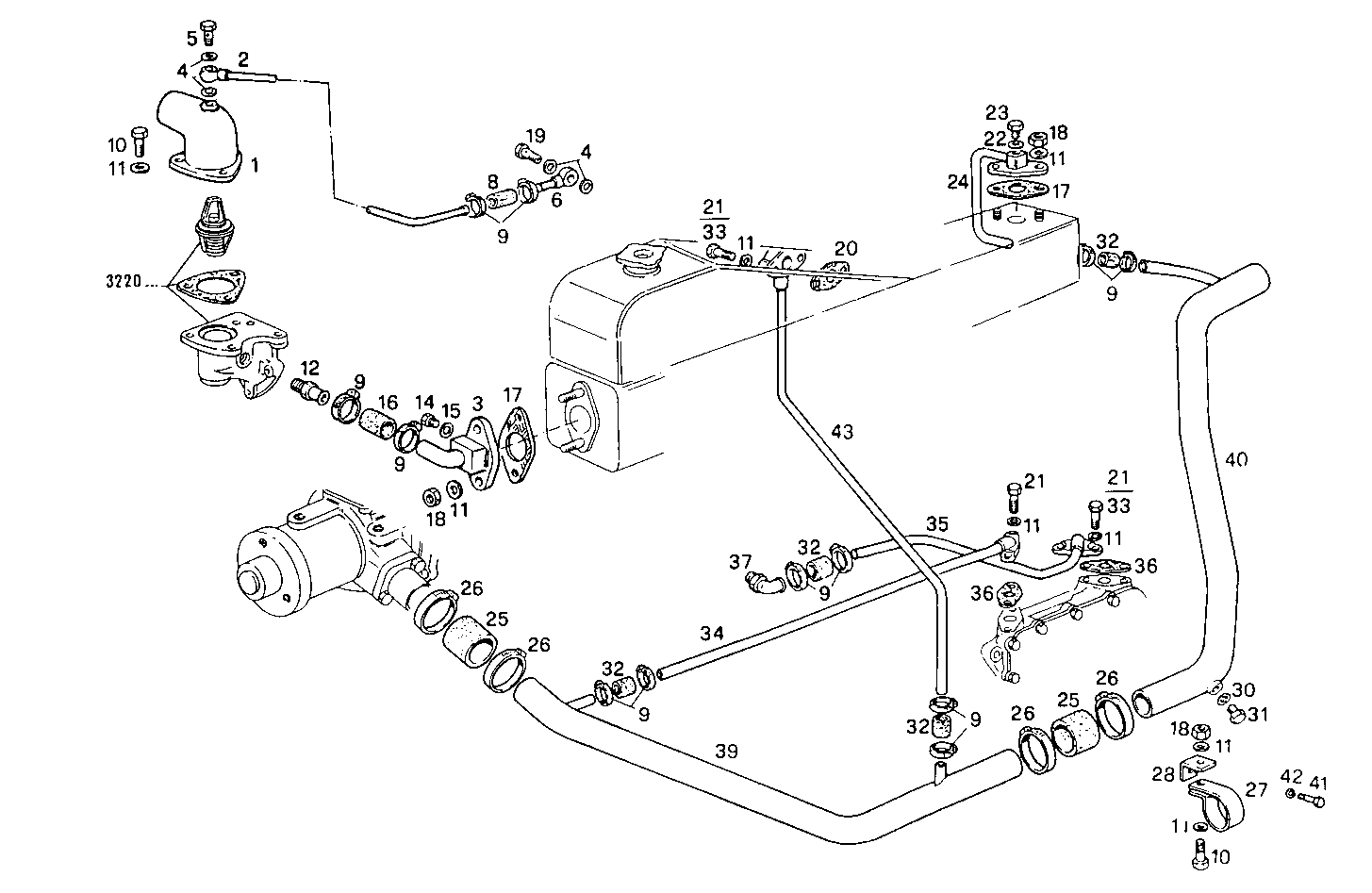

WATER LINES
8045M08.20 — 8045M08
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107202 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8110256 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8107731 | WATER PIPE WATER PIPE | 1 | |
| 4 | 4858607 | WASHER WASHER | 4 | |
| 5 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 6 | 98434018 | THREADED UNION THREADED UNION | 1 | |
| 8 | 4927825 | WATER HOSE WATER HOSE | 1 | |
| 9 | 17764593 | CLIP CLIP | 10 | |
| 10 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 12 | 4760312 | THREADED UNION THREADED UNION | 1 | |
| 14 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 15 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 16 | 98418717 | WATER HOSE WATER HOSE | 1 | |
| 17 | 8009640 | GASKET GASKET | 2 | |
| 18 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 19 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 20 | 4835970 | GASKET GASKET | 1 | |
| 21 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 4858609 | WASHER WASHER | 1 | |
| 23 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 24 | 8107733 | WATER PIPE WATER PIPE | 1 | |
| 25 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 26 | 17764793 | CLIP CLIP | 4 | |
| 27 | 4936741 | CLIP CLIP | 1 | |
| 28 | 8108979 | RETAINER RETAINER | 1 | |
| 30 | 10284460 | SEAL GASKET SEAL GASKET | 2 | |
| 31 | 16992140 | PLUG PLUG | 2 | |
| 32 | 17737687 | WATER HOSE WATER HOSE | 4 | |
| 33 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 34 | 4788181 | WATER PIPE WATER PIPE | 1 | |
| 35 | 4760316 | WATER PIPE WATER PIPE | 1 | |
| 36 | 4853970 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 37 | 98418647 | PIPE SOCKET PIPE SOCKET | 1 | |
| 39 | 8006084 | WATER PIPE WATER PIPE | 1 | |
| 40 | 8006086 | WATER PIPE WATER PIPE | 1 | |
| 41 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 42 | 17091074 | WASHER WASHER | 1 | |
| 43 | 8006085 | WATER PIPE WATER PIPE | 1 |
