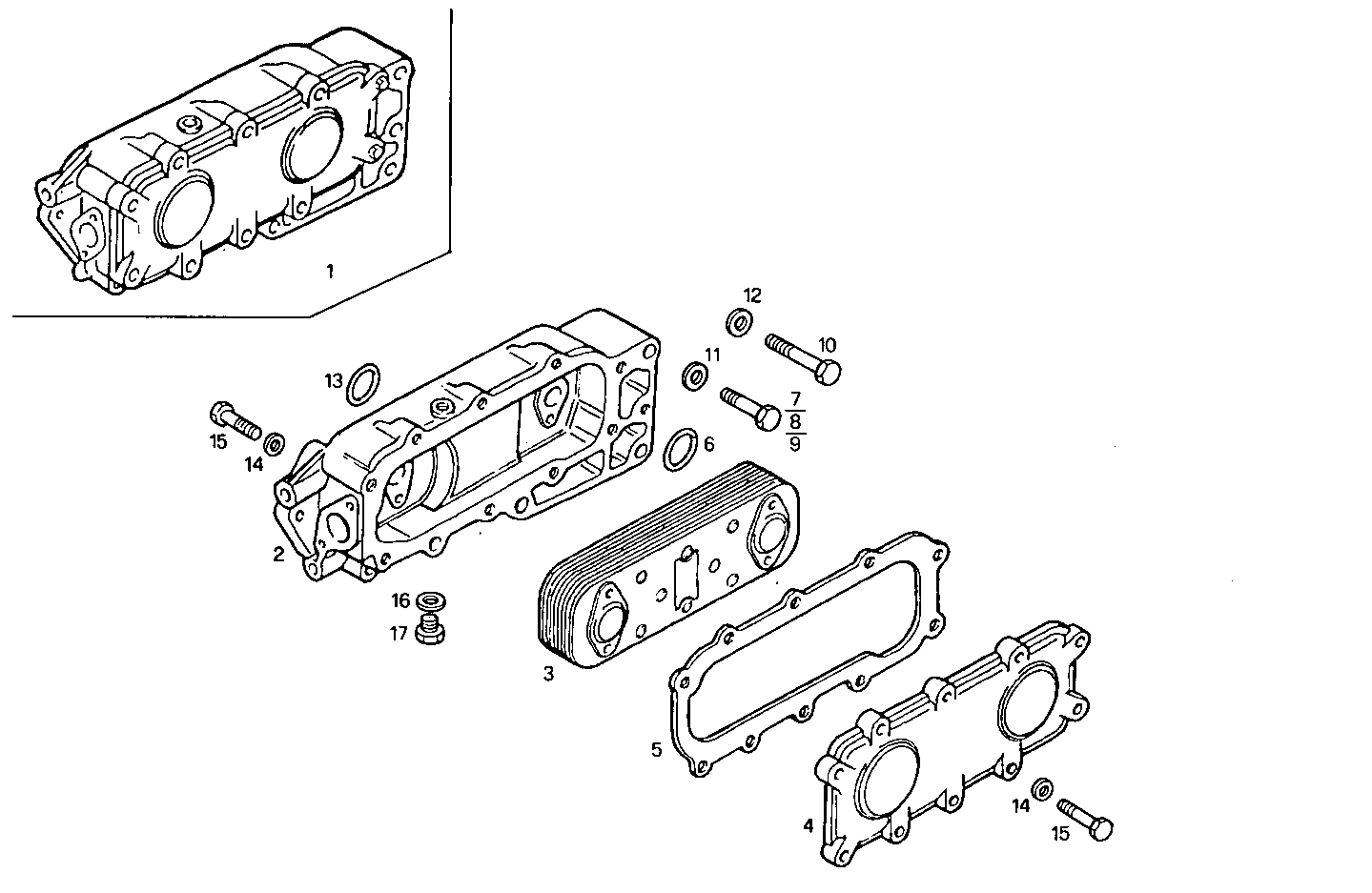

OIL - WATER HEAT EXCHANGER
8045SE00.00A800 — 8045SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98438017 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 98437493 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 3 | 98432859 | OIL COOLER OIL COOLER | 1 | |
| 4 | 98431219 | COVER COVER | 1 | |
| 5 | 98418538 | GASKET GASKET | 1 | |
| 6 | 14458281 | O-RING O-RING | 2 | |
| 7 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 8 | 16611324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 16611024 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 11306921 | SCREW SCREW | 1 | |
| 11 | 17095304 | WASHER WASHER | 3 | |
| 12 | 17095014 | WASHER WASHER | 1 | |
| 13 | 14457481 | O-RING O-RING | 2 | |
| 14 | 10519601 | WASHER WASHER | 12 | |
| 15 | 14358221 | SCREW SCREW | 5 | |
| 16 | 10263160 | SEAL GASKET SEAL GASKET | 3 | |
| 17 | 10273111 | LOCK PLUG LOCK PLUG | 3 |
