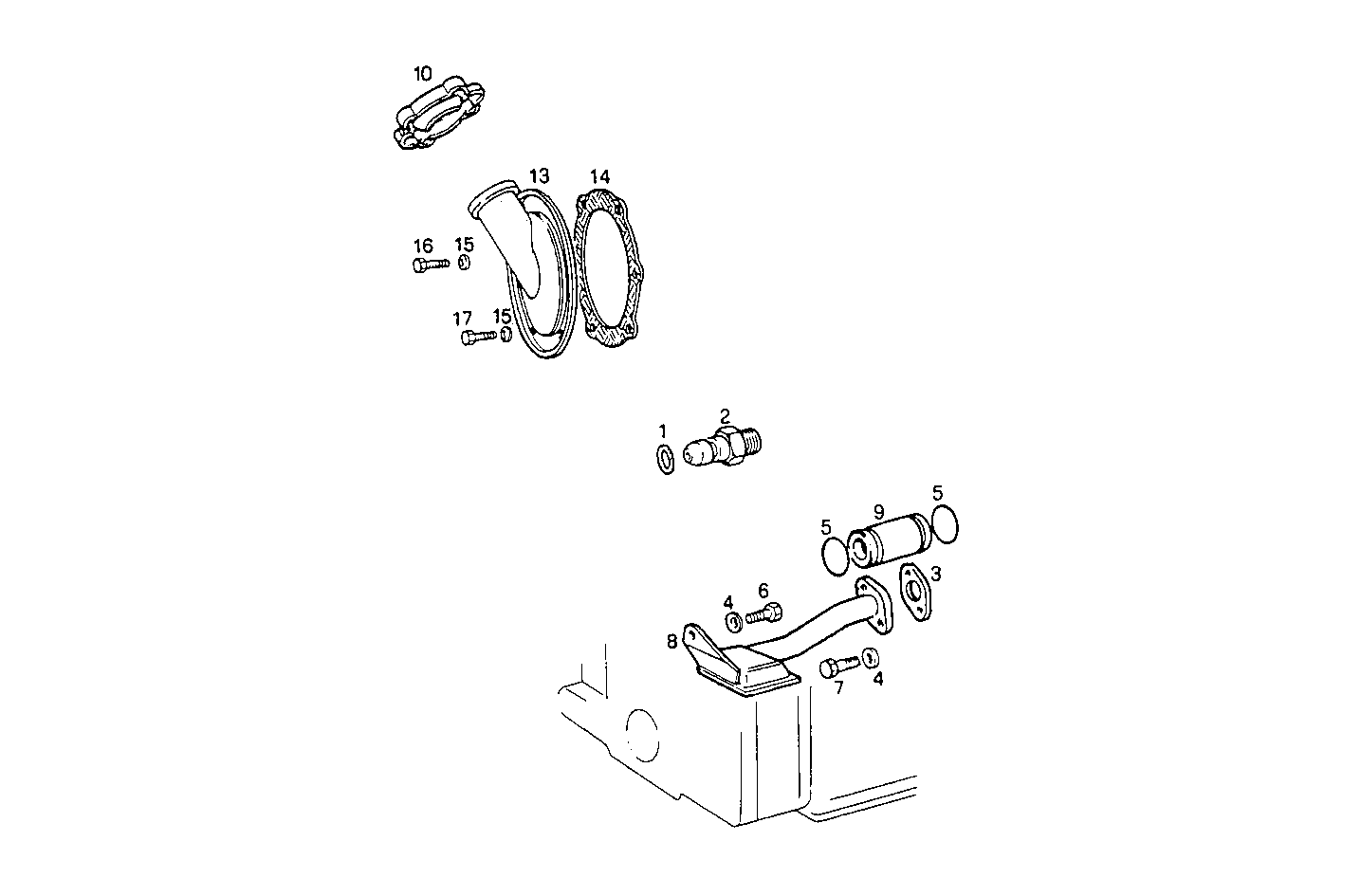

LUBE OIL LINES
8045SE00.09A002 — 8045SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 561293 | O-RING O-RING | 1 | |
| 2 | 4785501 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 4852561 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 17089471 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 17288681 | O-RING O-RING | 2 | |
| 6 | 16605424 | SCREW SCREW | 1 | |
| 7 | 16043524 | SCREW SCREW | 2 | |
| 8 | 99439689 | OIL SUCTION PIPE OIL SUCTION PIPE | 1 | |
| 9 | 98415136 | DELIVERY LINE DELIVERY LINE | 1 | |
| 10 | 4232606 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 13 | 4783048 | COVER COVER | 1 | |
| 14 | 98400781 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 17094914 | WASHER WASHER | 6 | |
| 16 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 4 |
