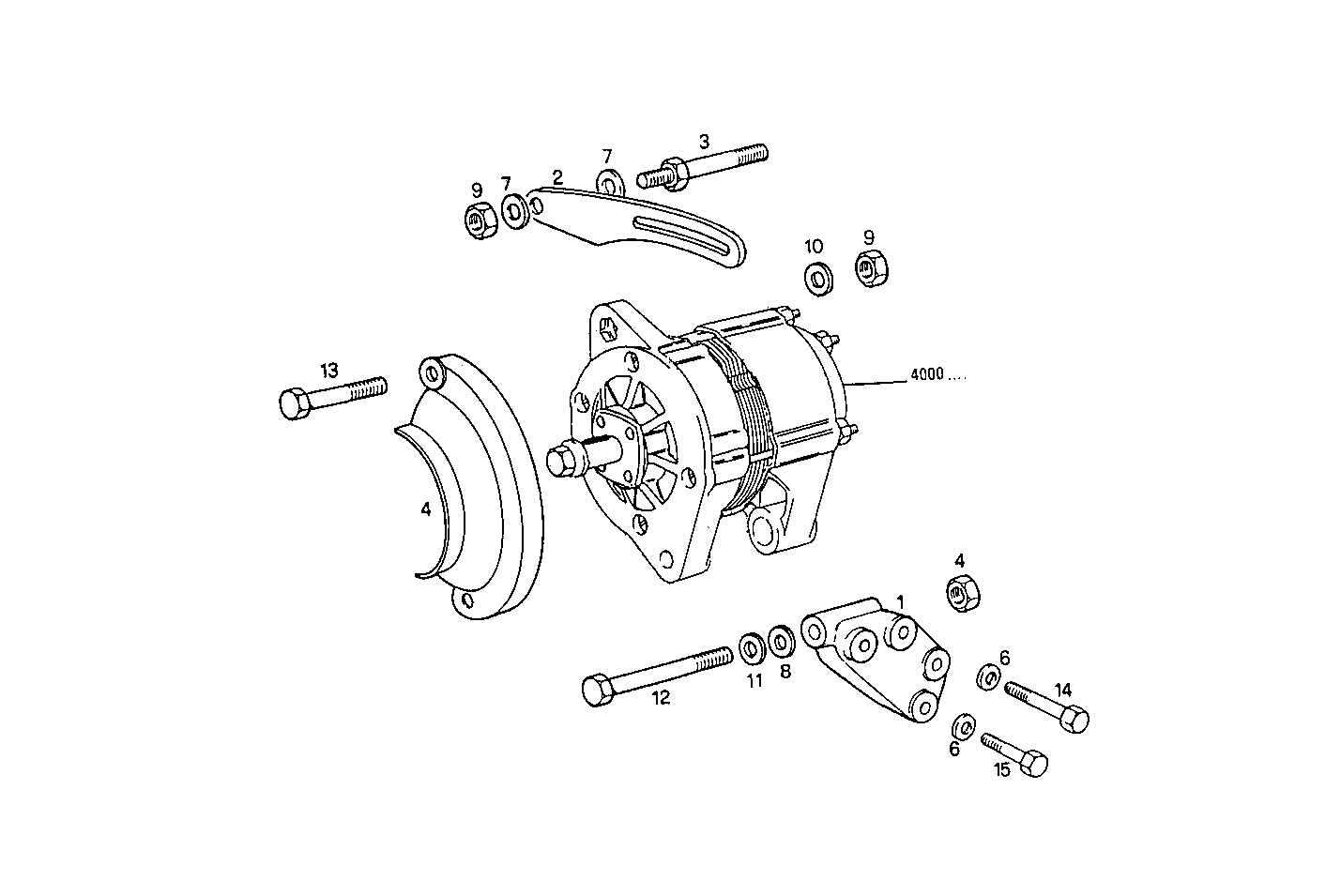

MOUNT
8045SE00.09A002 — 8045SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99443382 | SUPPORT SUPPORT | 1 | |
| 2 | 4787485 | TURNBUCKLE TURNBUCKLE | 1 | |
| 3 | 99446968 | SCREW SCREW | 1 | |
| 4 | 17038621 | NUT NUT | 1 | |
| 6 | 17094914 | WASHER WASHER | 4 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 17091174 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 12646824 | WASHER WASHER | 2 | |
| 11 | 12646924 | WASHER WASHER | 1 | |
| 12 | 15542024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 16606224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 16606024 | SCREW SCREW | 2 |
