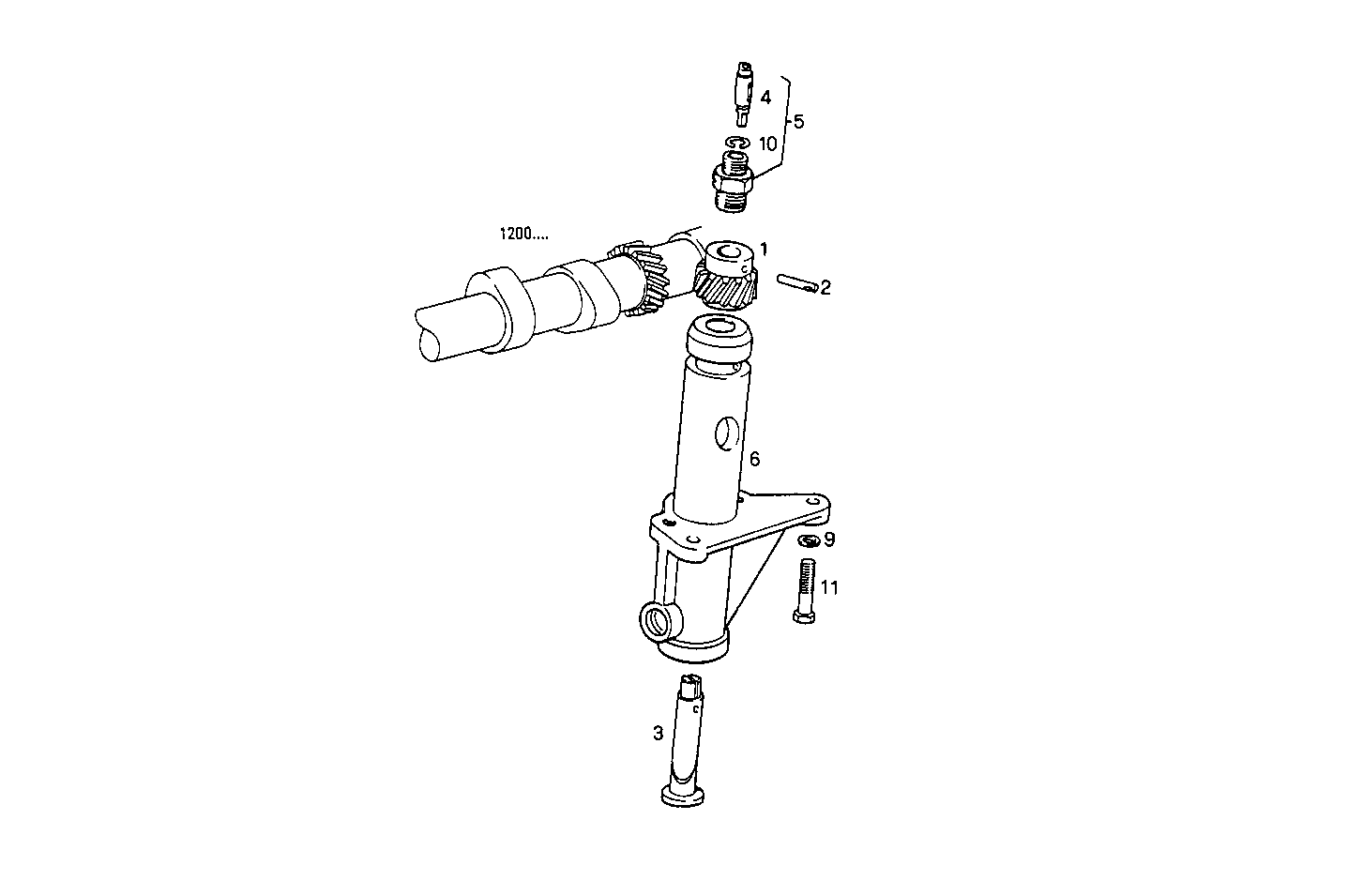

REVOLUTION COUNTER DRIVE
8045SE00.09A002 — 8045SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4599726 | OIL PUMP INT.GEAR OIL PUMP INT.GEAR | 1 | |
| 2 | 4605293 | GUIDE BOLT GUIDE BOLT | 1 | |
| 3 | 4613297 | SHAFT SHAFT | 1 | |
| 4 | 500303539 | THRUST ROD THRUST ROD | 1 | |
| 5 | 500303540 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 98415076 | SUPPORT SUPPORT | 1 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 13400575 | CIRCLIP CIRCLIP | 1 | |
| 11 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 |
