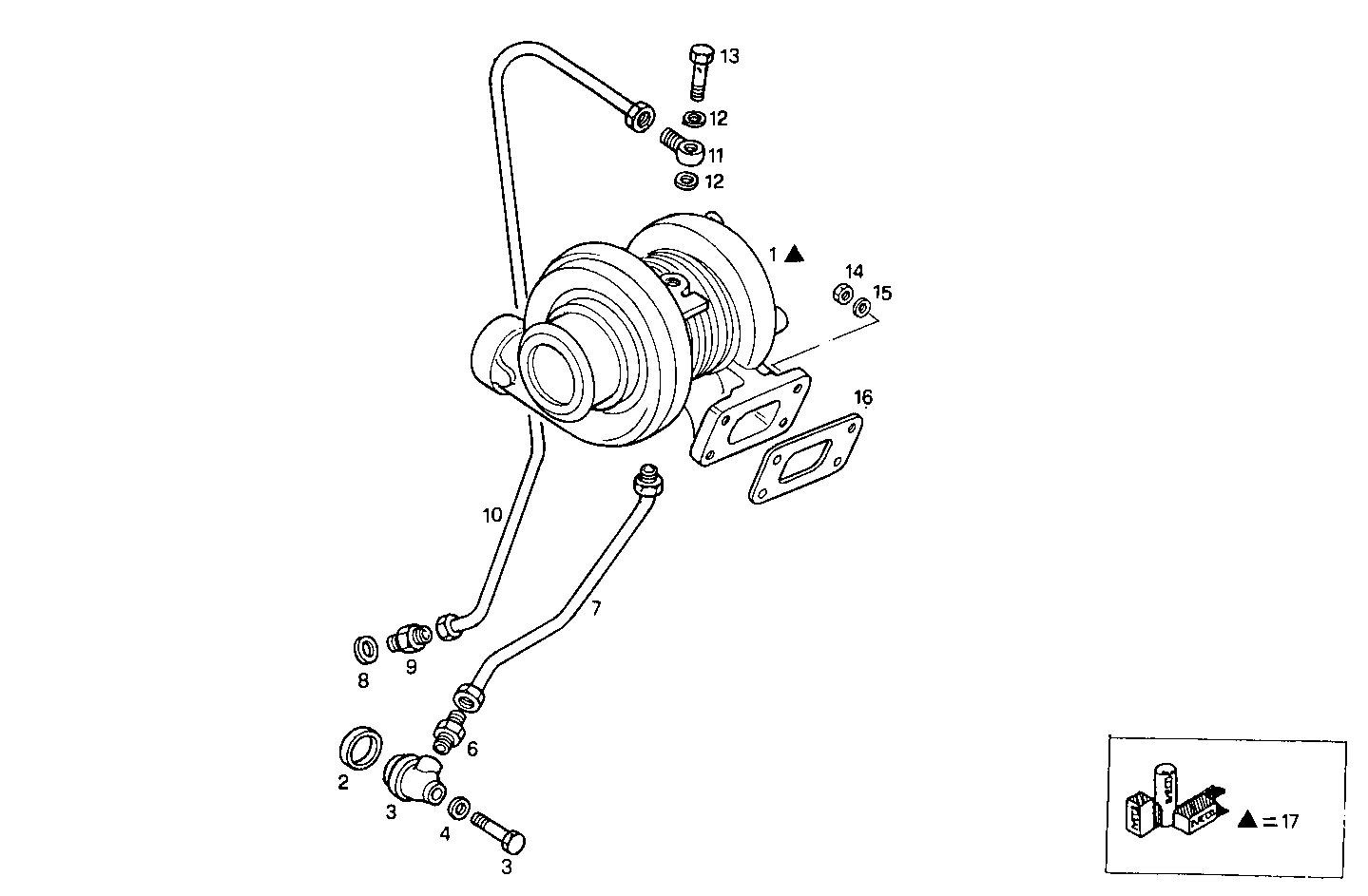

TURBOCHARGER
8045SE00.09A002 — 8045SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99449947 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 4600893 | GASKET GASKET | 1 | |
| 3 | 99443261 | CONNECTOR CONNECTOR | 1 | |
| 4 | 4716734 | WASHER WASHER | 1 | |
| 5 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 16500311 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 99443267 | OIL LINE OIL LINE | 1 | |
| 8 | 16508260 | WASHER WASHER | 1 | |
| 9 | 99443263 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 99443268 | OIL LINE OIL LINE | 1 | |
| 11 | 61604086 | BANJO COUPLING BANJO COUPLING | 1 | |
| 12 | 16508060 | SEAL GASKET SEAL GASKET | 2 | |
| 13 | 4851303 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 14 | 500322677 | HEXAGON NUT HEXAGON NUT | 4 | |
| 15 | 17094914 | WASHER WASHER | 4 | |
| 16 | 4834948 | EXH. MANIFOLD GKT EXH. MANIFOLD GKT | 1 | |
| 17 | 9970367 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 1 |
