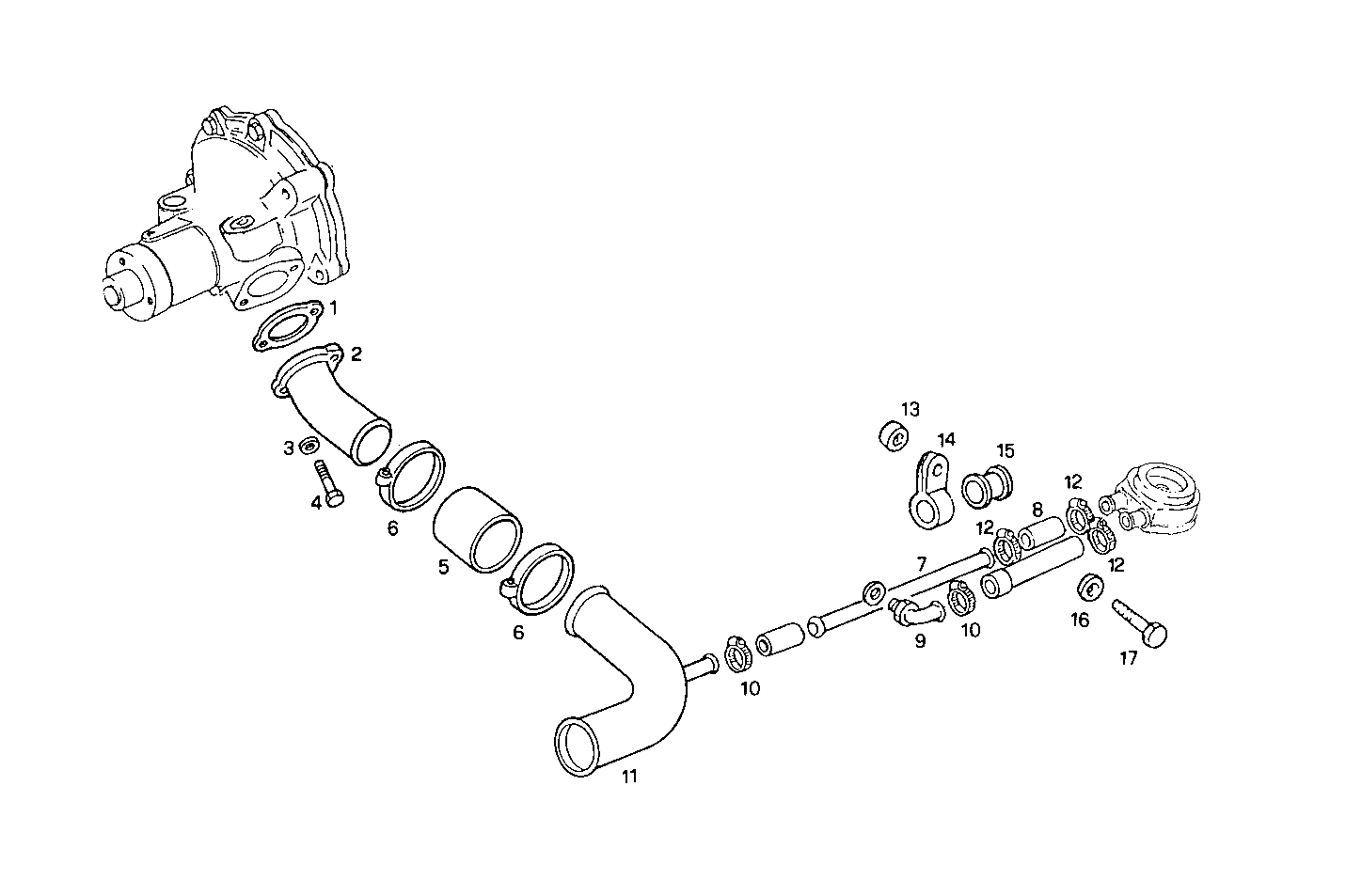

WATER LINES
8045SE00.09A002 — 8045SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4852556 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 4697838 | WATER PIPE WATER PIPE | 1 | |
| 3 | 17094914 | WASHER WASHER | 2 | |
| 4 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 6 | 17764792 | HOSE CLIP HOSE CLIP | 2 | |
| 7 | 8030525 | WATER PIPE WATER PIPE | 1 | |
| 8 | 17737187 | WATER HOSE WATER HOSE | 1 | |
| 9 | 98418647 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 18088291 | CLIP CLIP | 2 | |
| 11 | 8103965 | WATER PIPE WATER PIPE | 1 | |
| 12 | 18088391 | CLIP CLIP | 3 | |
| 13 | 4730712 | SPACING BAR SPACING BAR | 1 | |
| 14 | 8030538 | CLIP CLIP | 1 | |
| 15 | 4757122 | RUBBER PAD RUBBER PAD | 1 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 1 |
