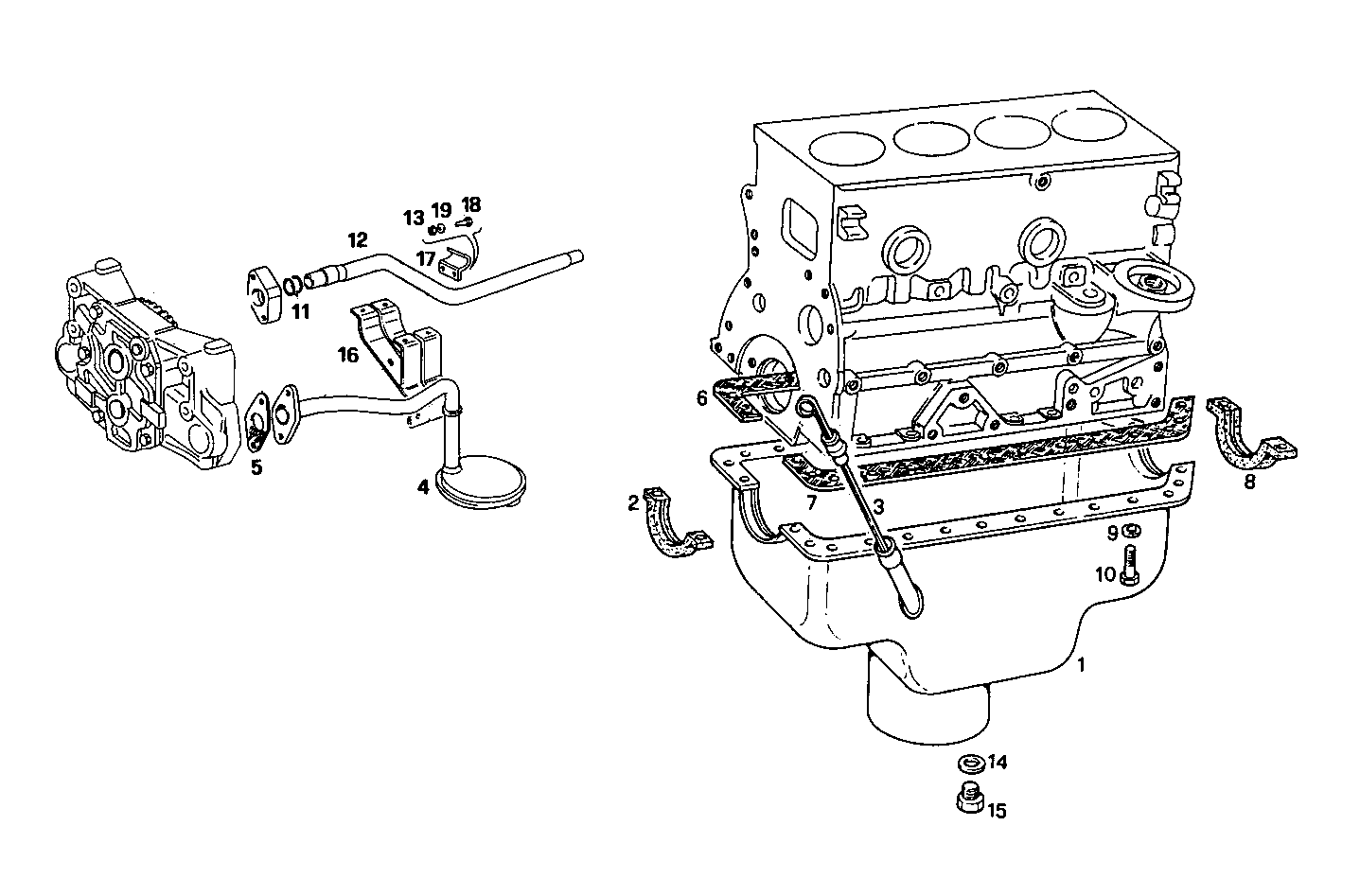

OIL SUMP
8045SE00.50 — 8045SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110600 | OIL SUMP OIL SUMP | 1 | |
| 2 | 4031577 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 3 | 8110539 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 4 | 8109506 | OIL LINE OIL LINE | 1 | |
| 5 | 4852561 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 8014526 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 7 | 8016136 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 8 | 4600753 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 9 | 12638601 | WASHER WASHER | 23 | |
| 10 | 10923221 | HEXAGON BOLT HEXAGON BOLT | 23 | |
| 11 | 14457681 | O-RING O-RING | 4 | |
| 12 | 4807944 | OIL LINE OIL LINE | 1 | |
| 13 | 14048217 | HEXAGON NUT HEXAGON NUT | 5 | |
| 14 | 10263460 | WASHER WASHER | 1 | |
| 15 | 10305111 | LOCK PLUG LOCK PLUG | 1 | |
| 16 | 8109507 | SUPPORT SUPPORT | 1 | |
| 17 | 8109508 | RETAINER RETAINER | 1 | |
| 18 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 10519601 | WASHER WASHER | 1 |
