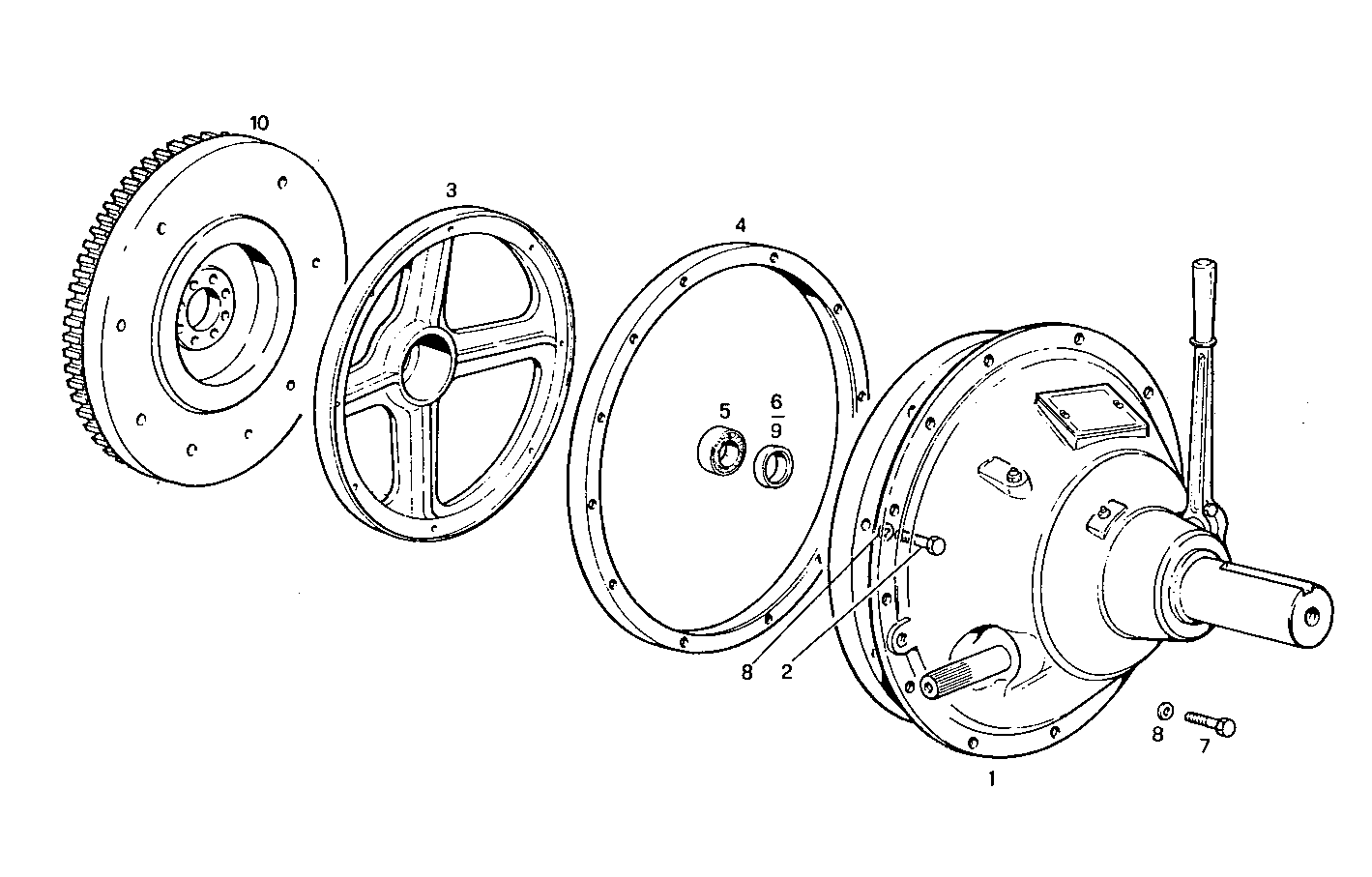

SINGLE DISC INDUSTRIAL CLUTCH
8045SU00.00 — 8045SU00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4931531 | CLUTCH CLUTCH | 1 | |
| 2 | 15971321 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 3 | 8104057 | FLANGE FLANGE | 1 | |
| 4 | 8101046 | SPACING BAR SPACING BAR | 1 | |
| 5 | 28044150 | DRIVE BEARING DRIVE BEARING | 1 | |
| 6 | 4931870 | SPACING BAR SPACING BAR | 1 | |
| 7 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 20 | |
| 9 | 8014922 | SPACER RING SPACER RING | 1 | |
| 10 | 4818113 | FLYWHEEL FLYWHEEL | 1 |
